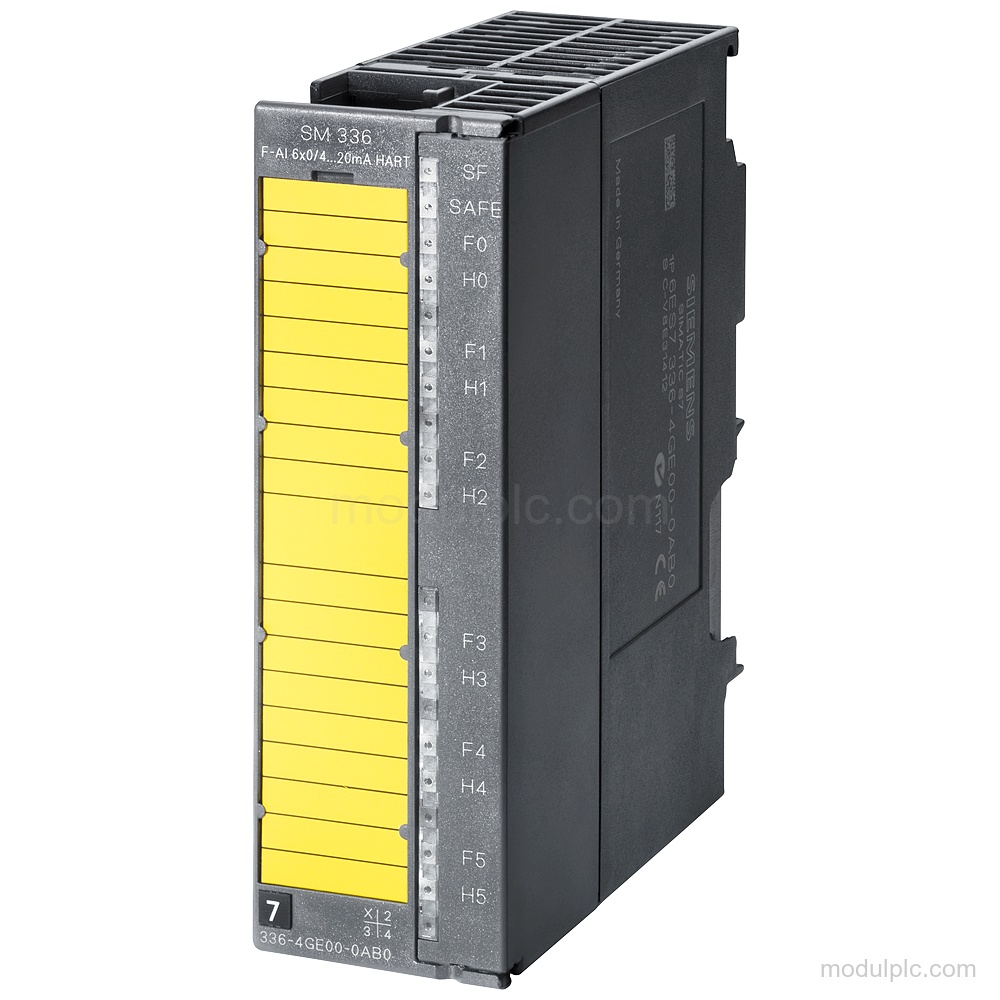

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Analog input channels | 6 |
| Supported current ranges | 0 to 20 mA; 4 mA to 20 mA |
| Input resistance, 0 to 20 mA | 150 Ω typ.; 175 Ω max. |
| Input resistance, 4 mA to 20 mA | 150 Ω typ.; 175 Ω max. |
| Resolution with overrange | 16 bit; 15 bit + sign |
| Integration time | 20 ms @ 50 Hz; 16.7 ms @ 60 Hz |
| Rated supply voltage | 24 V DC |
| Input current from power supply L+ | 150 mA typ. |
| Input current from backplane bus 5 V DC | 90 mA max. |
| Required front connector | 20-pin |
| Potential separation | Between channels, channels and backplane bus, and channels and electronics power supply |
Key Features
- Fail-safe analog inputs: Provides 6 analog current inputs for SIMATIC Safety, with HART support and fail-safe operation.
- Supported current ranges: Supports rated input ranges of 0 to 20 mA and 4 mA to 20 mA.
- Resolution and integration time: Resolution with overrange is 16 bit; integration time is 20 ms @ 50 Hz and 16.7 ms @ 60 Hz.
- Diagnostics and isolation: Has diagnostics, diagnostic alarms, readable diagnostic information, and potential separation between channels, the backplane bus, and the electronics power supply.
- Supply and power loss: Rated supply voltage is 24 V DC; input current is 150 mA from power supply L+, 90 mA max. from backplane bus 5 V DC, and power loss is 4.5 W typ.

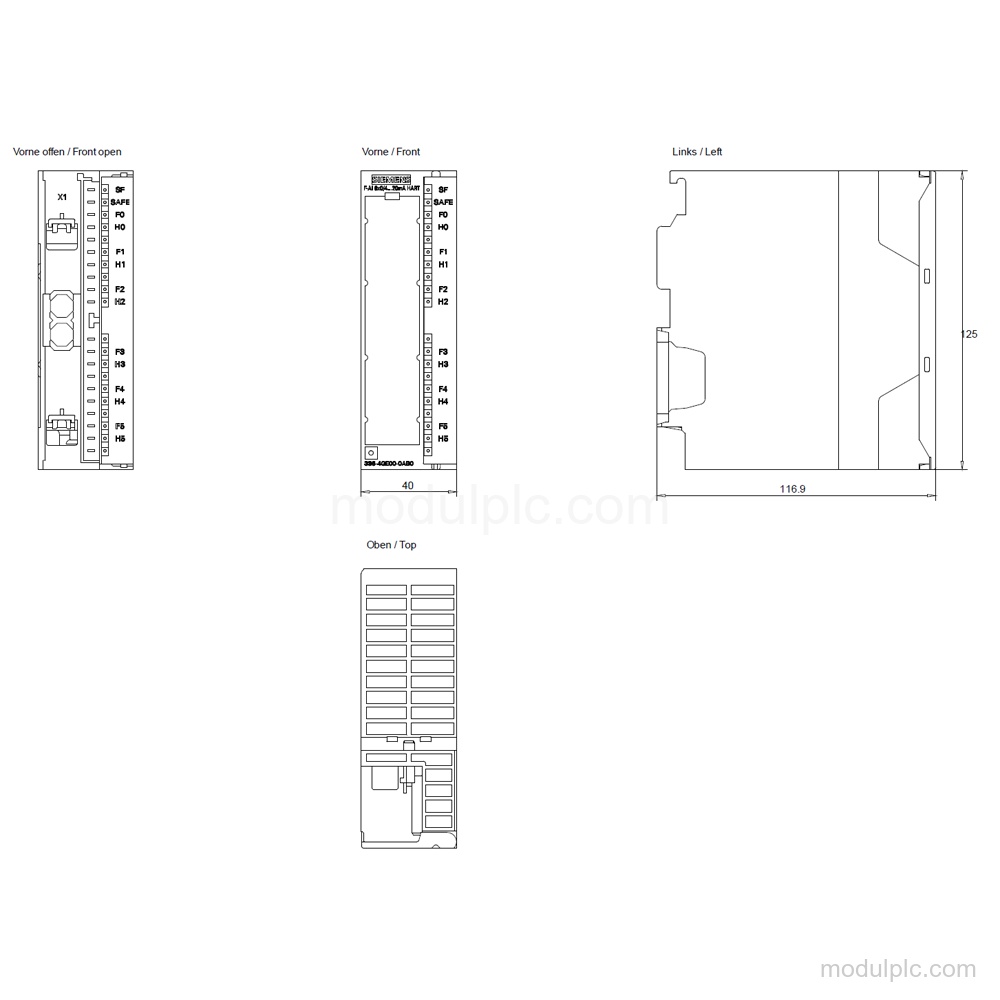

- Connection and dimensions: Requires a 20-pin front connector and measures 40 mm wide, 125 mm high, and 120 mm deep.
Frequently Asked Questions
1. How many analog inputs does 6ES7336-4GE00-0AB0 have?
It has 6 analog current inputs.
2. Which input ranges does this module support?
It supports 0 to 20 mA and 4 mA to 20 mA rated current input ranges.
3. What connector is required?
A 20-pin front connector is required.
4. What supply voltage does the module use?
The rated supply voltage is 24 V DC.
5. Does it provide diagnostics and channel isolation?
Yes. It has diagnostics, diagnostic alarms, readable diagnostic information, and potential separation between the channels.
