Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital output channels | 10 |
| Rated supply voltage | 24 V DC; 1L+ |
| Load voltage | 24 V DC; 2L+, 3L+ |
| Rated output current for signal "1" | 2 A |
| Output current range | 7 mA to 2.4 A at 0 to 40 °C and 40 to 60 °C |
| Diagnostic alarm | Yes |
| Required front connector | 40-pin |
| Safety level | Cat. 4 according to EN 954; Performance Level e according to ISO 13849-1; SIL 3 according to IEC 61508 |
Applications
- Fail-safe output control: Provides fail-safe digital output for SIMATIC S7F systems.
Key Features
- Fail-safe digital output: SM 326 digital output for SIMATIC S7F systems, with fail-safe operation and diagnostic alarm.
- 10 digital outputs: The module has 10 digital outputs with short-circuit protection and potential separation between channels.
- Output current: Rated output current for signal "1": 2 A; permissible range from 0 to 40 °C and 40 to 60 °C: 7 mA to 2.4 A.
- Supply voltage: Rated supply voltage: 24 V DC at 1L+; load voltage: 24 V DC at 2L+ and 3L+.
- Diagnostics and safety: Diagnostic information is readable, with a diagnostic alarm, red SF group-error LED, Cat. 4 according to EN 954, Performance Level e according to ISO 13849-1, and SIL 3 according to IEC 61508.

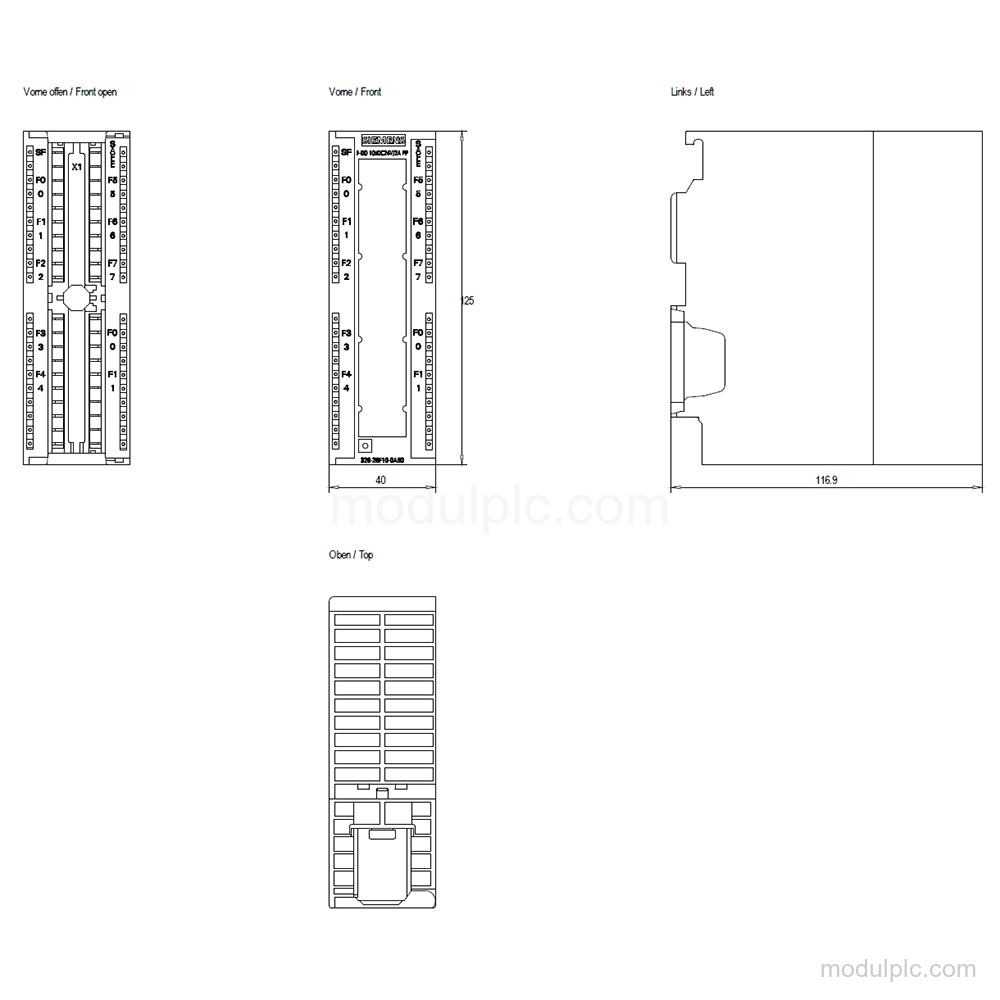

- Connection and dimensions: Required front connector: 40-pin. Dimensions: 40 mm width, 125 mm height, and 120 mm depth.
Frequently Asked Questions
1. What function does the Siemens 6ES7326-2BF10-0AB0 provide?
It provides fail-safe digital output for SIMATIC S7F systems.
2. How many digital outputs does the module have?
It has 10 digital outputs.
3. What output current is supported?
The rated output current for signal "1" is 2 A. The permissible range is 7 mA to 2.4 A at 0 to 40 °C and 40 to 60 °C.
4. What connector is required?
A 40-pin front connector is required.
