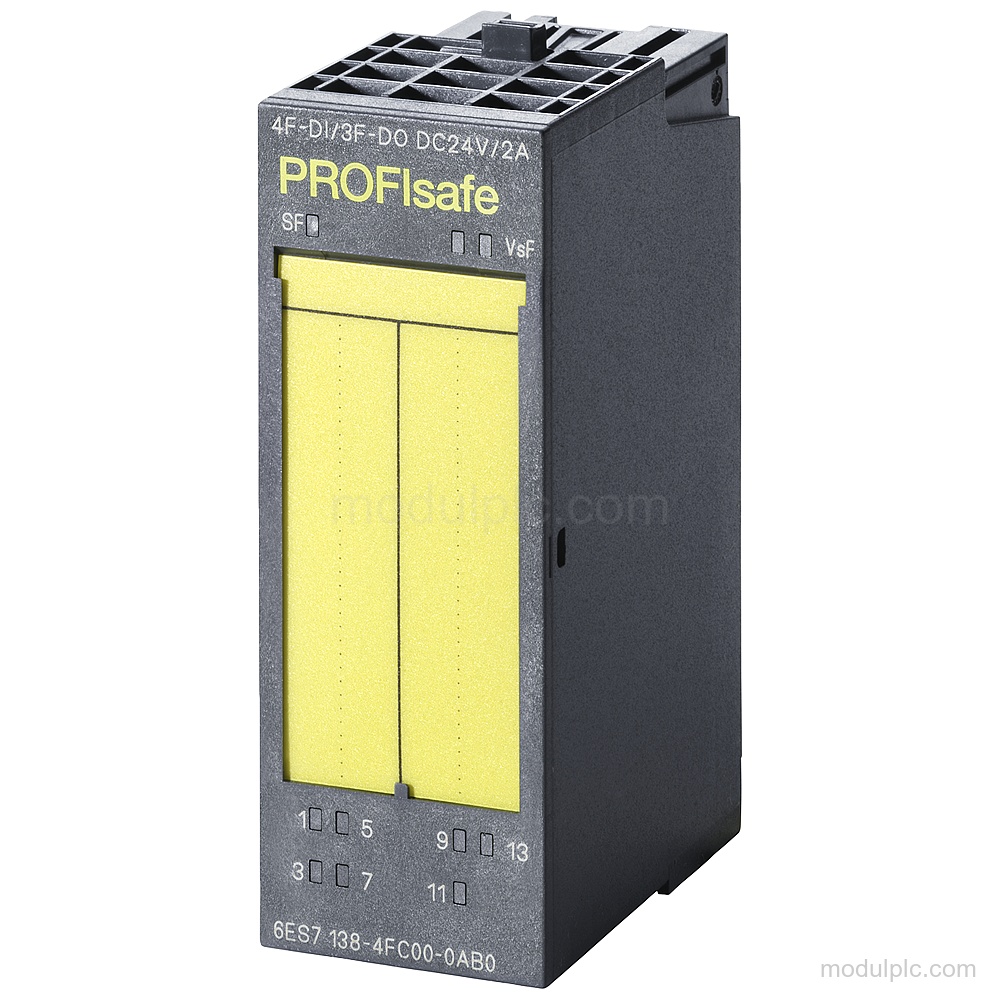

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module configuration | 4 F-DI and 3 F-DO |
| Rated supply voltage | 24 V DC |
| Safety category | Up to Category 3 according to EN 954-1 |
| Performance level | d according to ISO13849-1 |
| SIL | 2 according to IEC61508 |
| Typical power loss | 3.5 W |
| Supported safety protocol | PROFIsafe |
| PROFINET configuration | Can also be used with IM 151-3 HF |
Key Features
- Module configuration: 4 F-DI and 3 F-DO electronics module.
- Supply voltage: Rated value: 24 V DC.
- Safety capability: Up to Category 3 according to EN 954-1, SIL2 according to IEC61508, and PLd according to ISO13849-1.
- PROFIsafe: PROFIsafe is supported; the module can also be used in a PROFINET configuration with IM 151-3 HF.

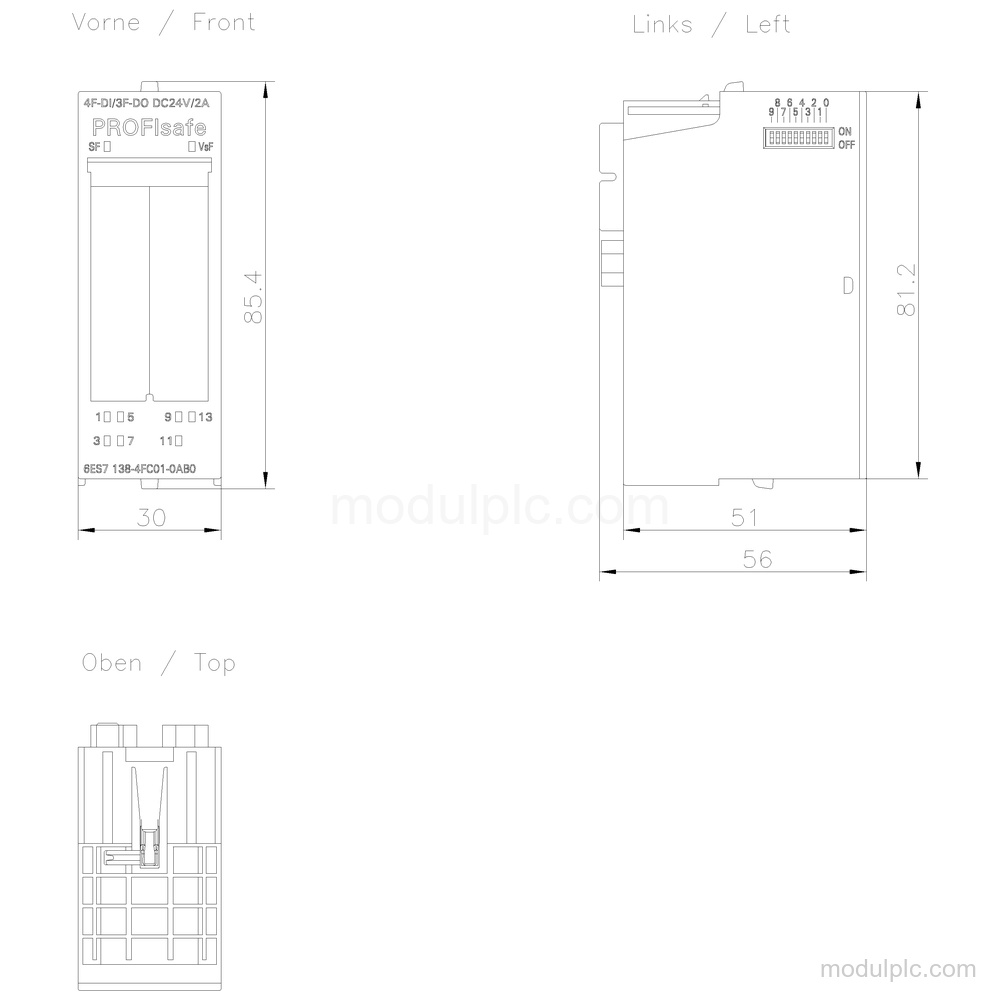

- Dimensions and power loss: 30 mm width, 81 mm height, 52 mm depth; typical power loss: 3.5 W.
- Lifecycle: Product cancellation.
Frequently Asked Questions
1. What is the configuration of Siemens 6ES7138-4FC01-0AB0?
It is an electronics module with 4 F-DI and 3 F-DO.
2. What supply voltage does the module use?
Its rated supply voltage is 24 V DC.
3. What safety levels and dimensions apply to this module?
It supports up to Category 3 according to EN 954-1, SIL2 according to IEC61508, and PLd according to ISO13849-1. Its dimensions are 30 mm wide, 81 mm high, and 52 mm deep.
