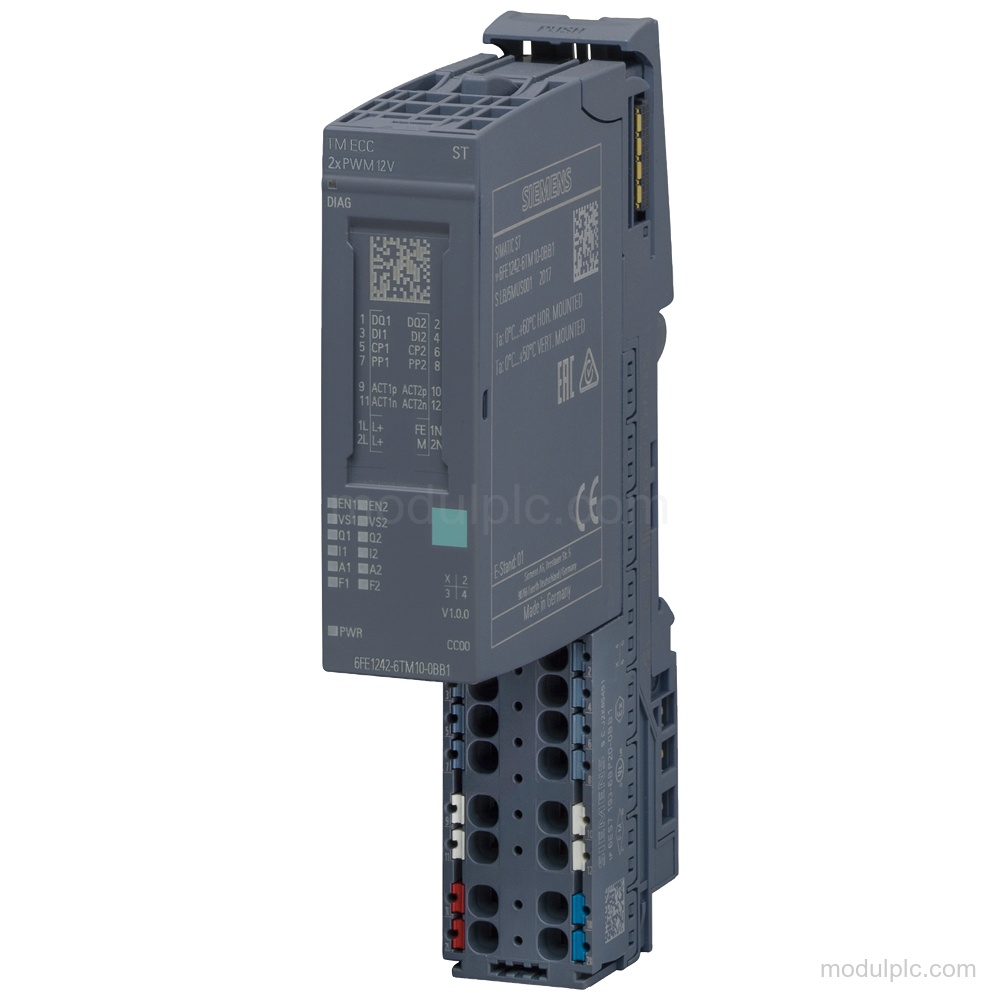

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | ECC 2x PWM ST |
| Number of channels | 2; Acc. to IEC 61851-1 Mode 3 and/or SAE J1772 |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage range | 19.2 V to 28.8 V |
| Digital inputs | 2; 1 per channel |
| Digital outputs | 2 transistor outputs; 1 per channel |
| PWM cycle duration | 1 kHz; not parameterizable |
| Mounting | Horizontal, standard rail |
| Bus communication | Yes |
| Firmware version | V1.04 |
| Protection | IP20 |
| Usable BaseUnits | BU type B0, B1 |
Applications
- Conductive AC vehicle charging: Controls conductive AC charging of electric vehicles according to IEC 61851 Mode 3 for 2 charging points.
- Contactor and connector-lock control: Reads contactor or connector-lock contacts and provides DQ switch contacts for contactors and ACT p/n connector locking.
Key Features
- Charging controller function: Supports conductive AC charging of electric vehicles according to IEC 61851, including IEC 61851 Mode 3 vehicle communication.
- Channels and signals: Provides 2 channels with 2 Control Pilot functions, 2 Plug Present inputs, 2 digital inputs for contactor or connector-lock readback, and 2 DQ switch contacts for contactors.
- PWM outputs: Provides 2 transistor PWM outputs, 1 per channel, according to IEC 61851. The cycle duration is not parameterizable and is 1 kHz.
- Supply and input range: Rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V. Input voltage is 0 V to 30 V; signal 0 is <0.2 V (nom) and signal 1 is >0.6 V (nom).
- Diagnostics and protection: Has short-circuit protection, diagnostic alarms, ERROR, PWR, channel-status, and DIAG LEDs, plus IP20 protection and isolation between the channels and backplane bus.
- Installation and system context: Mounts horizontally on a standard rail and is usable with BU type B0, B1. STEP 7 TIA Portal configuration/integration is supported from V14 SP1.
Frequently Asked Questions
1. What charging function does the 6FE1242-6TM10-0BB1 provide?
It supports conductive AC charging of electric vehicles according to IEC 61851 Mode 3 for 2 charging points.
2. How many channels and digital I/O points does the module have?
It has 2 channels, 2 digital inputs, and 2 transistor digital outputs, with 1 input and 1 output per channel.
3. What supply voltage does the module require?
The rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
4. How is the module mounted?
It is mounted horizontally on a standard rail and is usable with BU type B0, B1.
