Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | PotDis BU type P1, light version |
| P1 and P2 bus connections | 17 terminals to P1, 1 terminal to P2 |
| Terminal type | Push-in terminal |
| Maximum bus and process-terminal voltage | 48 V max. |
| Maximum current carrying capacity | 10 A for P1 and P2 bus; 10 A for process terminals |
| Potential group function | New potential group; not continued from the left |
| Isolation test voltage | 3 250 V DC |
Applications
- Potential group formation: Forms a new potential group and distributes P1 and P2 potentials through the module terminals.
Key Features

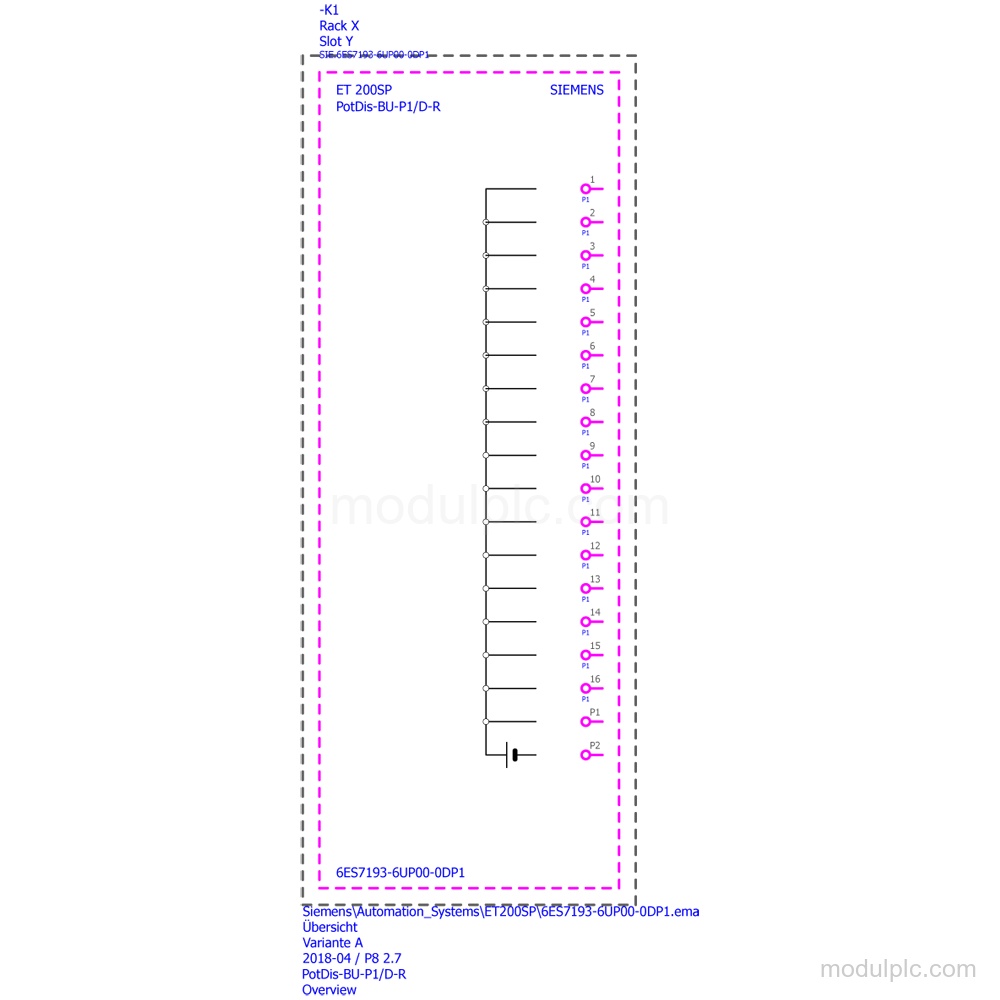

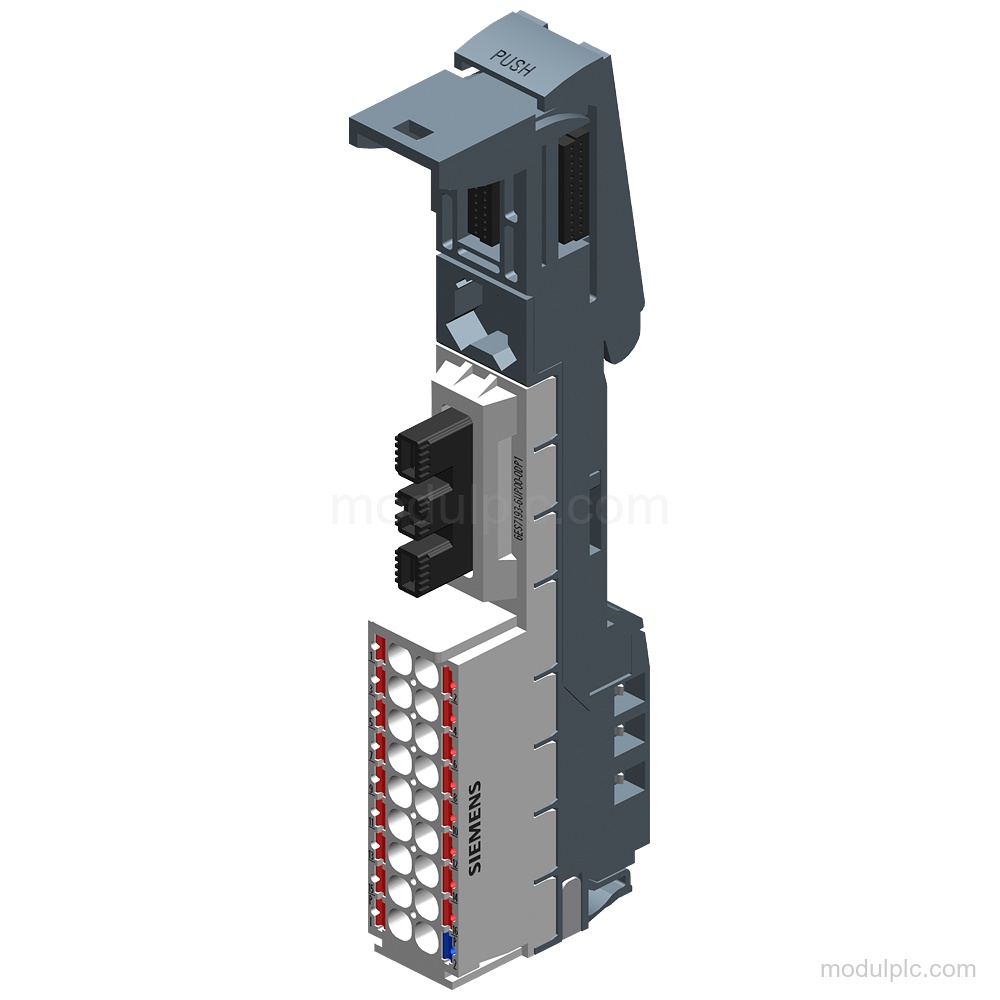

- Potential distributor type: PotDis BU type P1, light version, with 17 P1-potential and 1 P2-potential connections.
- Push-In terminals: Push-in terminals accept conductors from 0.14 mm2 to 2.5 mm2.
- Rated voltage and current: P1 and P2 bus and process terminals: 48 V max.; current carrying capacity: 10 A max. for each stated connection group.
- Potential group formation: Forms a new potential group; the potential group is not continued from the left.
- Electrical separation: Backplane bus and supply voltage are separated; isolation is tested with 3 250 V DC.

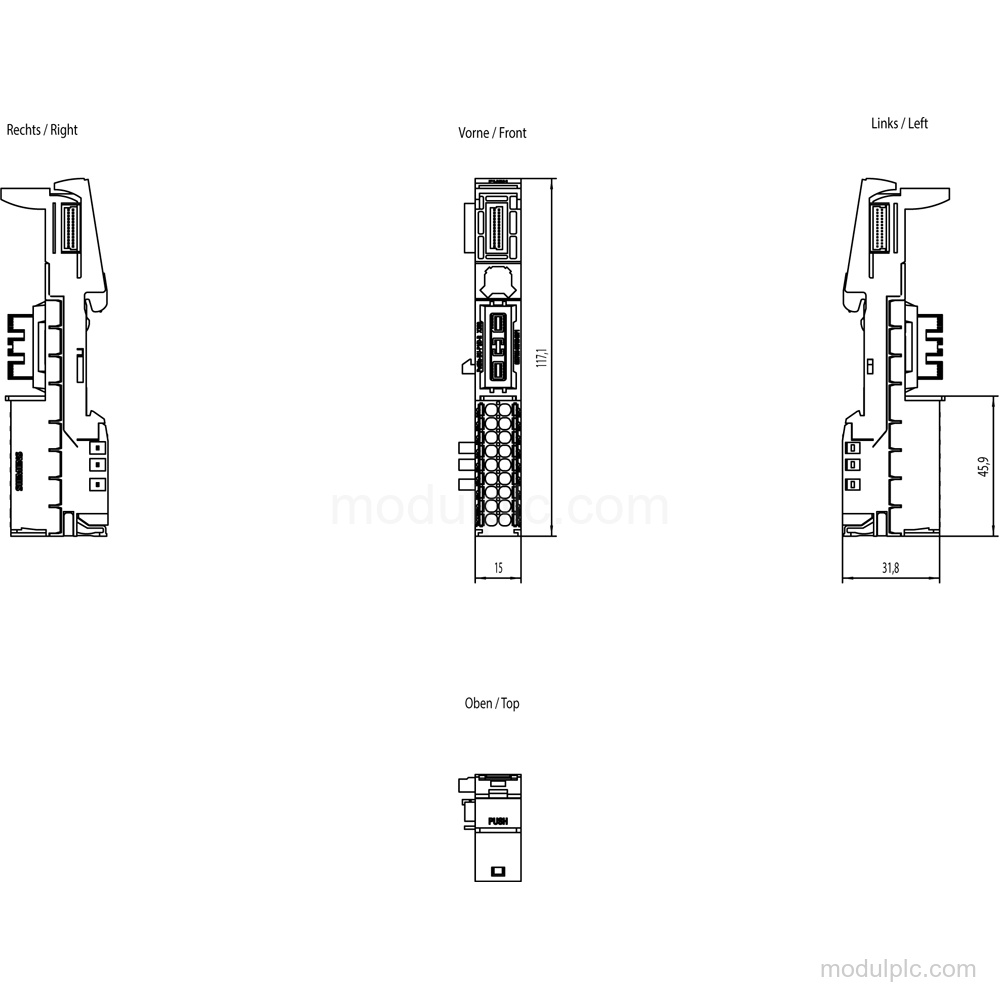

- Dimensions and installation temperature: Dimensions are 15 mm wide, 117 mm high, and 35 mm deep. During operation, the ambient temperature is -30 °C to 60 °C for horizontal installation and -30 °C to 50 °C for vertical installation.
Frequently Asked Questions
1. What type of potential distributor is 6ES7193-6UP00-0DP1?
It is a PotDis BU type P1, light version, for SIMATIC ET 200SP.
2. How many P1 and P2 connections does it provide?
It provides 17 terminals to P1 and 1 terminal to P2.
3. What terminals and conductor sizes does it use?
It uses Push-In terminals for conductors from 0.14 mm2 to 2.5 mm2.
4. What voltage and current values apply to the connections?
The P1 and P2 bus and process terminals support 48 V max. The current carrying capacity is 10 A max. for each stated connection group.
5. What should be verified before requesting a quote?
Verify the required P1 and P2 connections, Push-In conductor cross-section, installation orientation, and applicable voltage and current limits.
