Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | PotDis-TB-P2-B |
| Potential distributor terminals | 18 terminals to potential P2 |
| Rated value for P1 and P2 bus | 48 V DC max. |
| Rated value for process terminals | 48 V DC max. |
| Current carrying capacity | 10 A max. up to 60 °C |
| Process terminals | 16 |
| Terminal type | Push-In terminal |
Applications

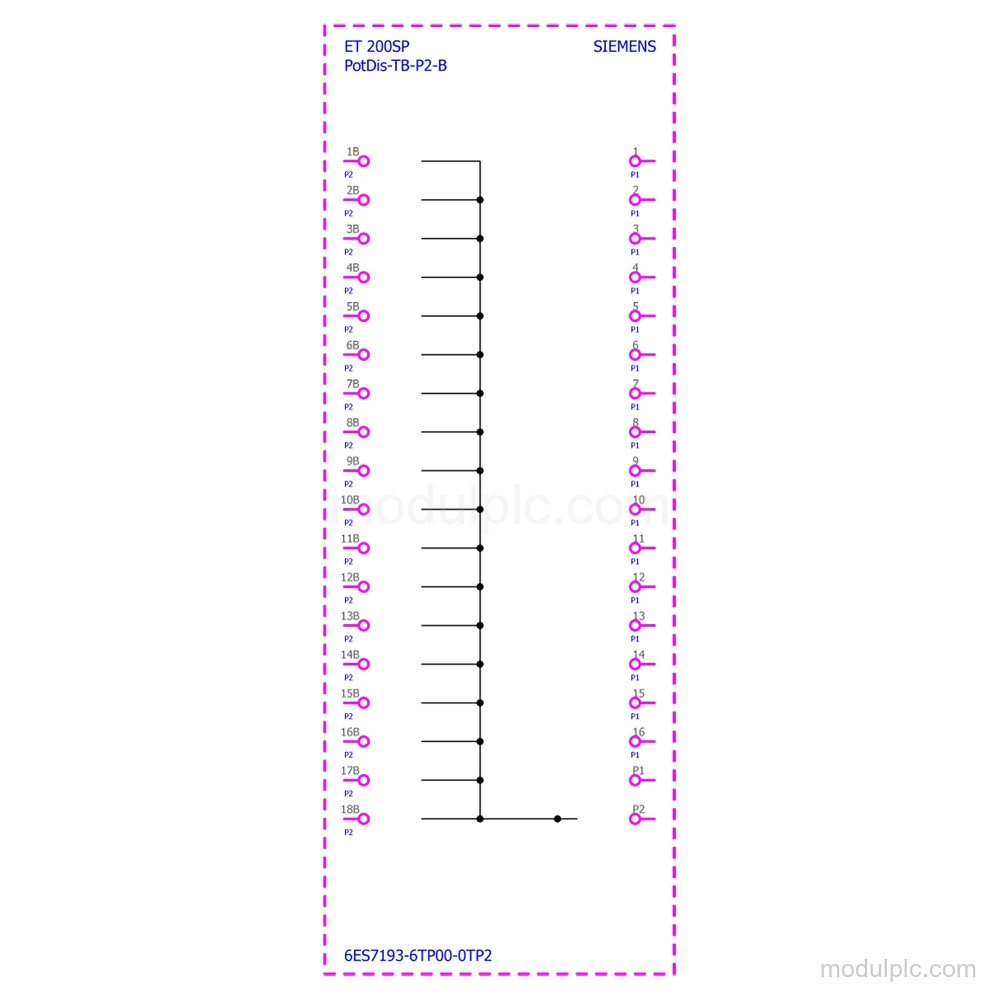

- Potential distribution to P2: Distributes potential to P2 through 18 terminals and connects 2 terminals to the P1 and P2 bus.
Key Features

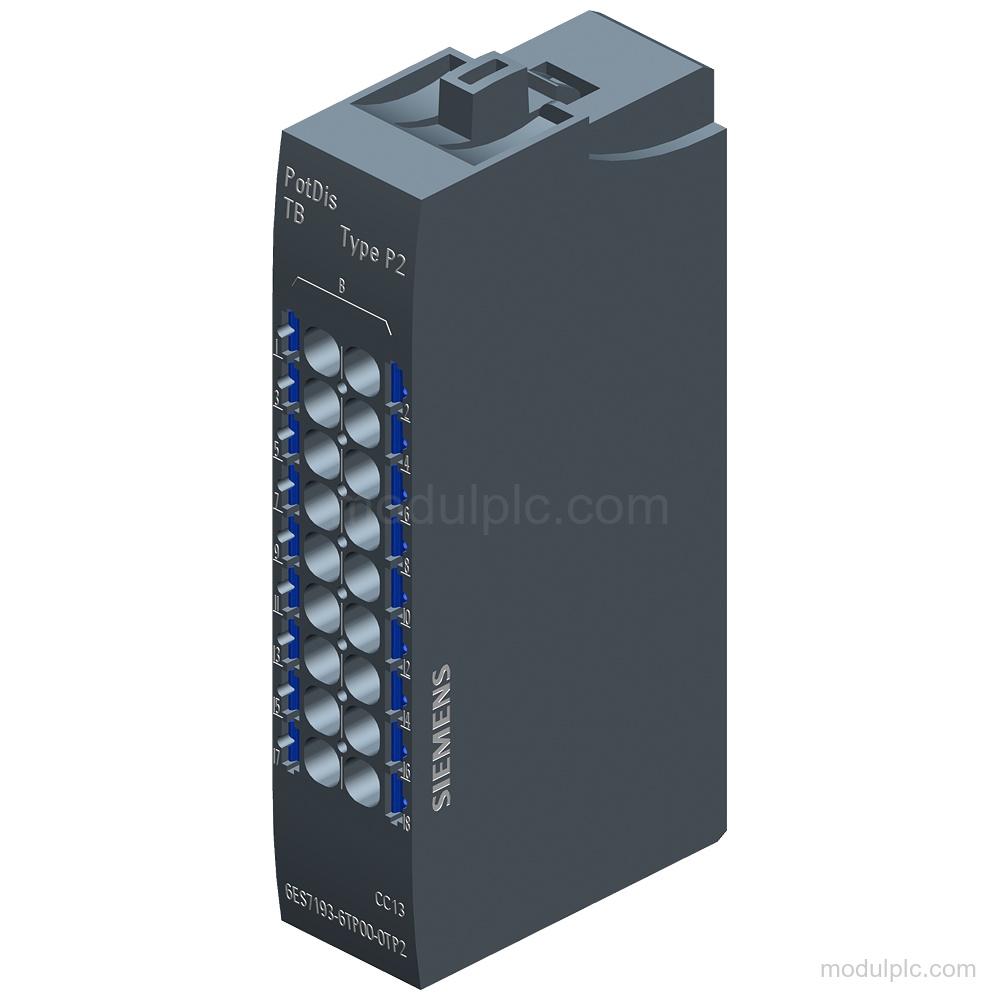

- Potential distributor terminal block: Product type designation: PotDis-TB-P2-B, with 18 terminals to potential P2.
- Push-In terminals: The terminal type is Push-In terminal, with 16 process terminals to the I/O module and 2 terminals connected to the P1 and P2 bus.
- Electrical ratings: Rated value for the P1 and P2 bus and for process terminals: 48 V DC max.; current carrying capacity: 10 A max. up to 60 °C.
- Conductor cross-section: Conductor cross-section: 0.14 mm2 min.; 0.2 mm2 min. without wire end ferrule, and 2.5 mm2 max.; 1.5 mm2 max. with wire end ferrule.
- Installation temperature: Ambient temperature during operation: -30 °C to 60 °C for horizontal installation and -30 °C to 50 °C for vertical installation.

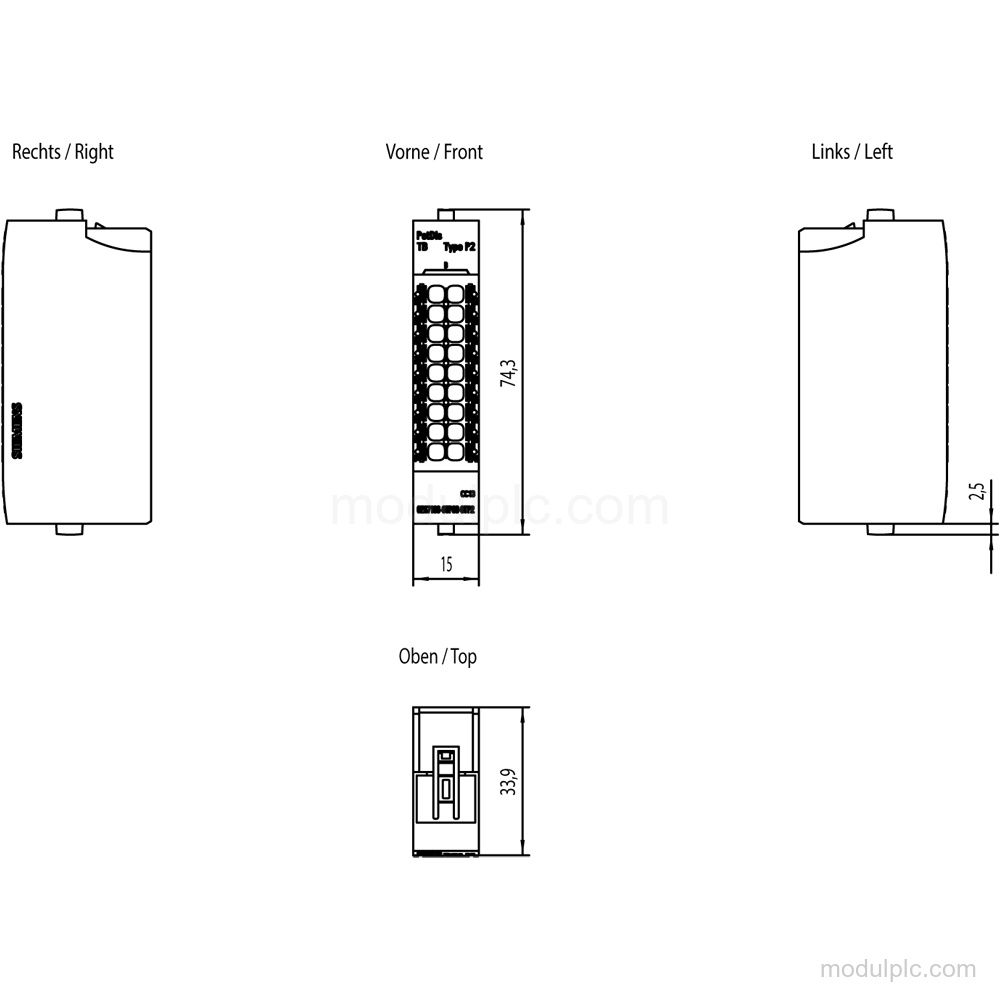

- Compact dimensions: Dimensions: 15 mm width, 74 mm height, and 34 mm depth; weight approx. 24 g.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7193-6TP00-0TP2?
It is a PotDis-TB-P2-B potential distributor terminal block with 18 terminals to potential P2.
2. How many terminals does this potential distributor have?
It has 18 terminals to potential P2, including 16 process terminals to the I/O module and 2 terminals with connection to the P1 and P2 bus.
3. What are the voltage and current limits?
The rated value for the P1 and P2 bus and for process terminals is 48 V DC max. Current carrying capacity is 10 A max. up to 60 °C.
4. Which conductor cross-sections are supported?
The conductor cross-section is 0.14 mm2 min.; 0.2 mm2 without wire end ferrule, and 2.5 mm2 max.; 1.5 mm2 with wire end ferrule.
