Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Potential distributor module, PotDis-TB-P1-R |
| P1 potentials | 18 |
| Rated voltage for P1 and P2 bus | 48 V; max. |
| Rated voltage for process terminals | 48 V; max. |
| Terminal type | Push-In terminal |
| Process terminals to I/O module | 16 |
| Terminals connected to P1 and P2 bus | 2 |
| Current carrying capacity | 10 A max. up to 60 °C |
Key Features
- Potential distributor module: Product type designation: PotDis-TB-P1-R, with 18 P1 potentials.
- Rated voltage: 48 V; max. for the P1 and P2 bus and for process terminals.
- Current carrying capacity: 10 A max. up to 60 °C, for the P1 and P2 bus, and for process terminals.

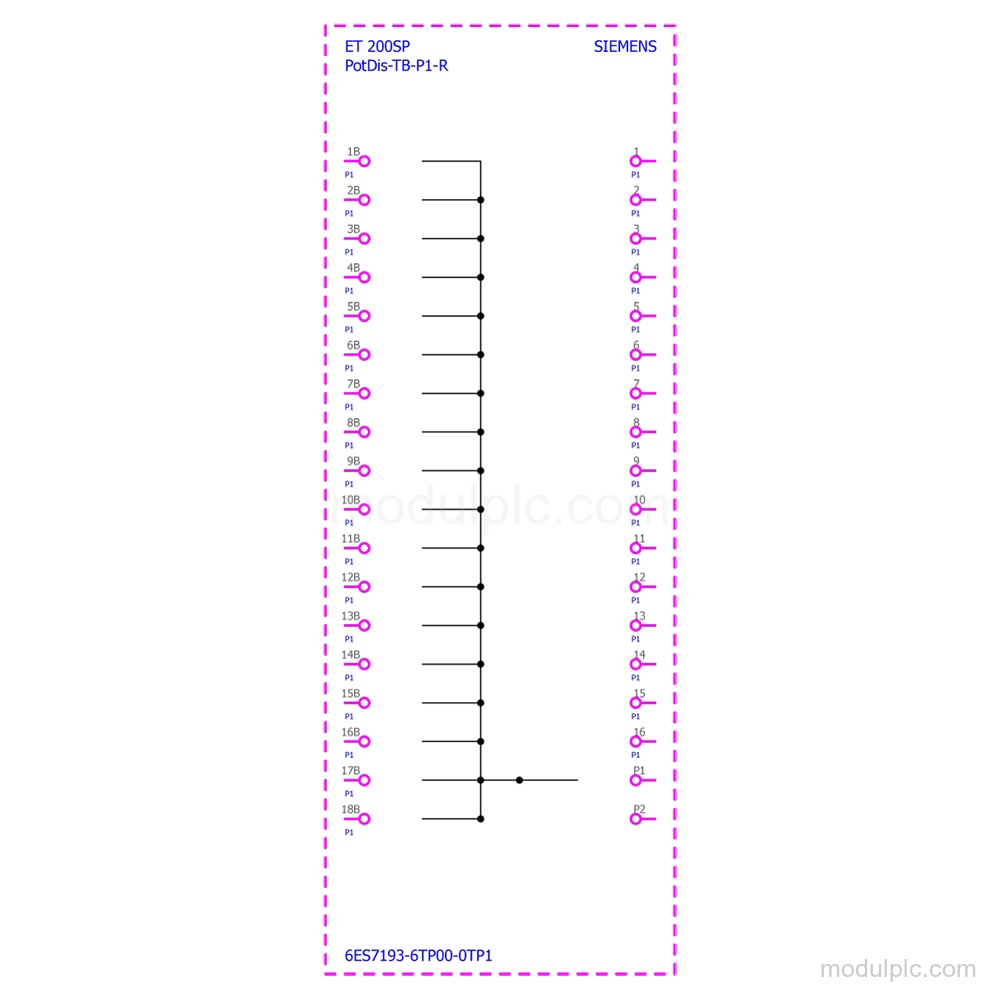

- Push-In terminals: The module has Push-In terminals, 16 process terminals to the I/O module, and 2 terminals connected to the P1 and P2 bus.
- Conductor cross-section: 0.14 mm2 min.; 0.2 mm2 without wire end ferrule. Maximum: 2.5 mm2, or 1.5 mm2 with wire end ferrule.

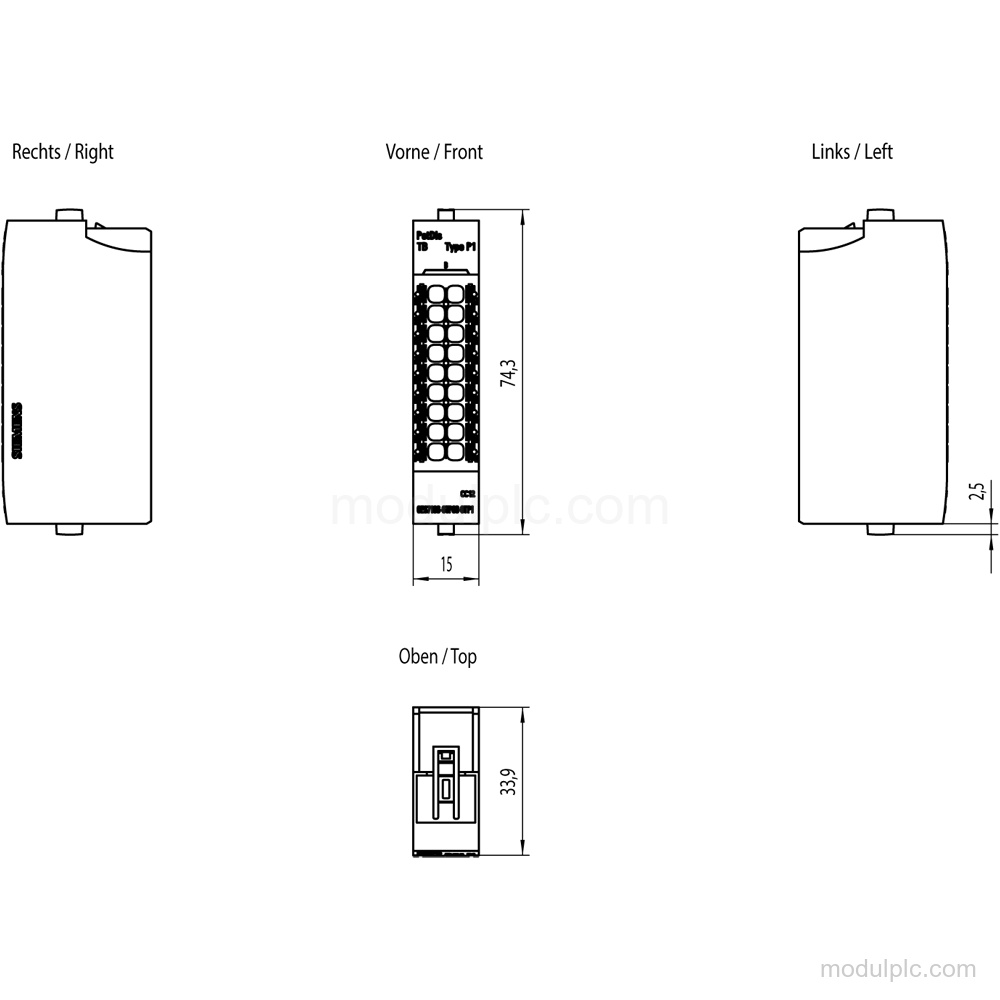

- Dimensions and weight: Width: 15 mm; height: 74 mm; depth: 34 mm; weight, approx.: 24 g.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7193-6TP00-0TP1?

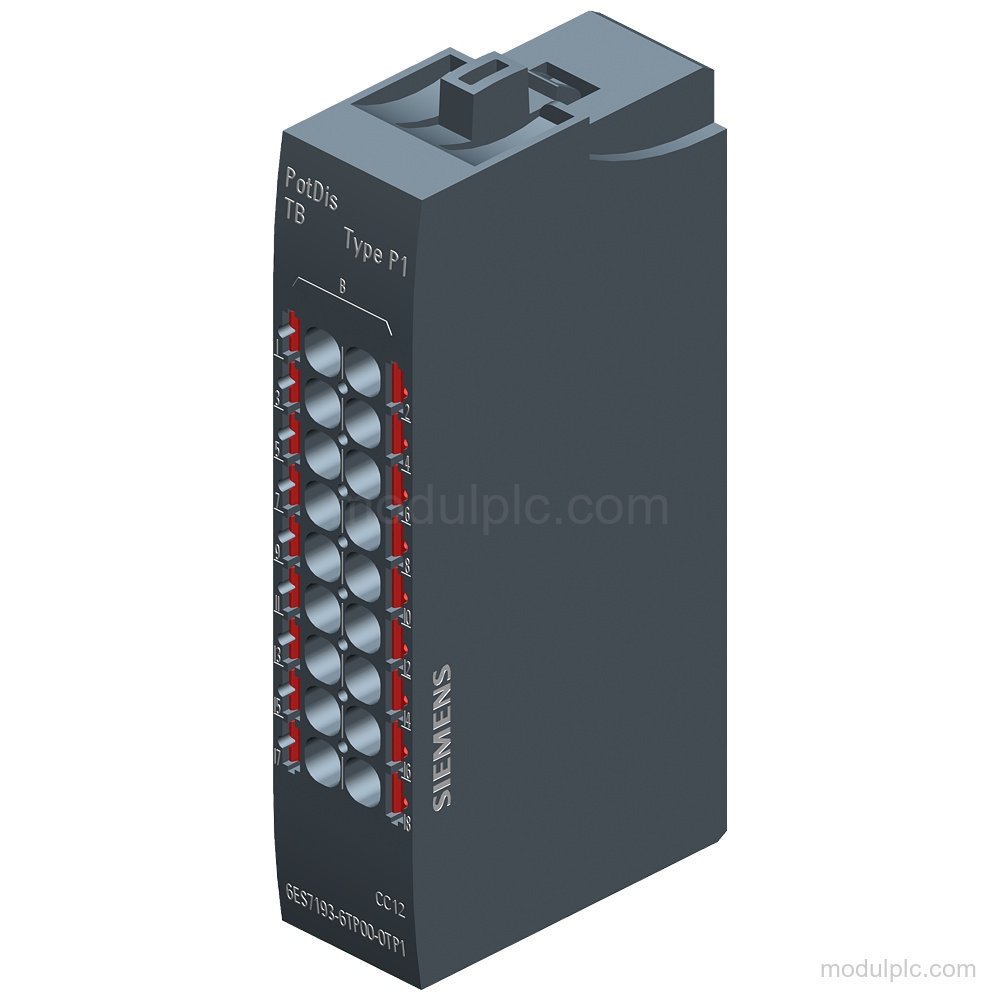

It is a SIMATIC ET 200SP Potential distributor module with a PotDis-TB-P1-R terminal block and 18 P1 potentials.
2. What terminals does this module have?
It has Push-In terminals, 16 process terminals to the I/O module, and 2 terminals with connection to the P1 and P2 bus.
3. What voltage and current values are specified?
The rated voltage is 48 V; max. for the P1 and P2 bus and process terminals. Current carrying capacity is 10 A max. up to 60 °C and 10 A max. for both the P1 and P2 bus and process terminals.
