Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | Potential distributor module |
| Process terminals | 16 to I/O module; 2 with connection to P1 and P2 bus |
| Terminal type | Push-in terminal |
| Process terminal voltage | 48 V DC maximum; 240 V AC maximum |
| Current carrying capacity | 10 A maximum up to 60 °C; 10 A maximum for P1 and P2 bus |
| Potential separation | Between process terminals and supply voltage |
| Conductor cross-section | 0.14 mm2 to 2.5 mm2; 0.2 mm2 to 1.5 mm2 with wire end ferrule |
| Protection condition | 10 A miniature circuit breaker, type B or C, for the respective rated supply voltage |
| Horizontal operating temperature | -30 °C to 60 °C |
| Vertical operating temperature | -30 °C to 50 °C |
Key Features

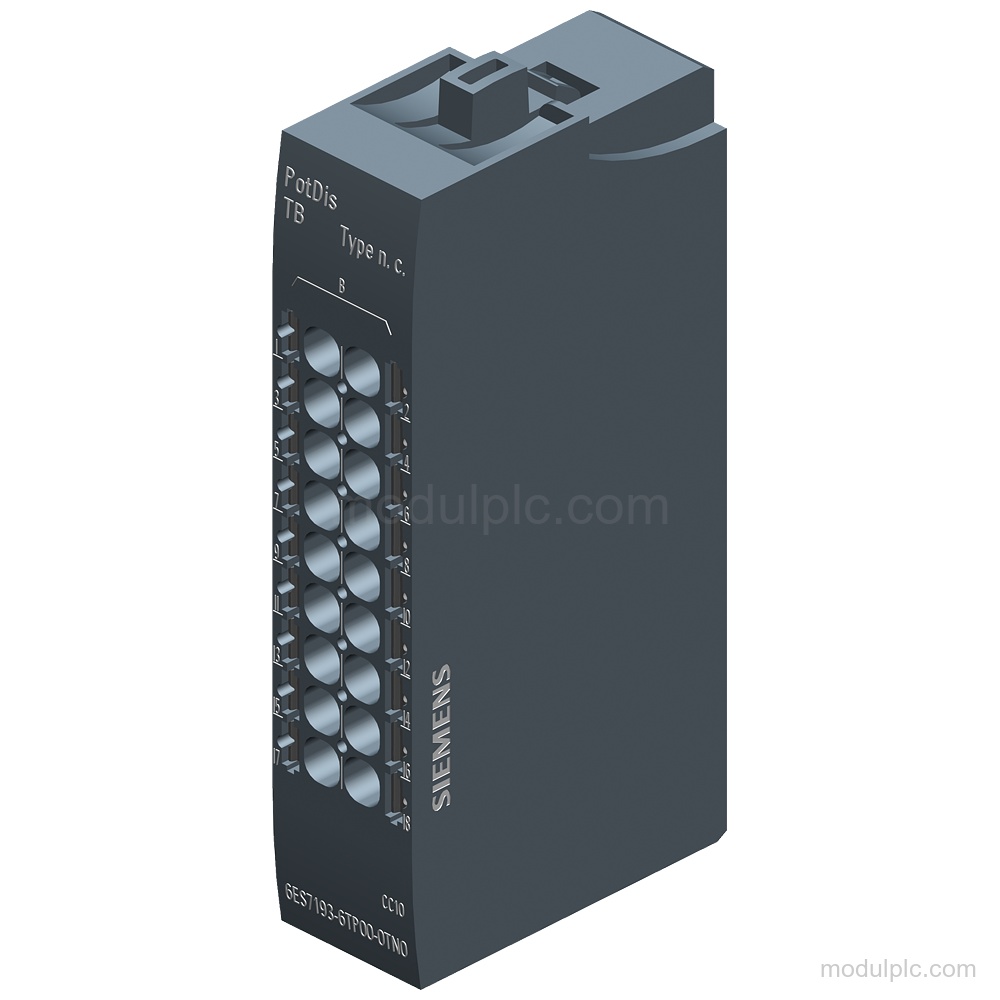

- Potential distributor module: Product type designation: PotDis-TB-n.c.-G; lifecycle: Active Product.

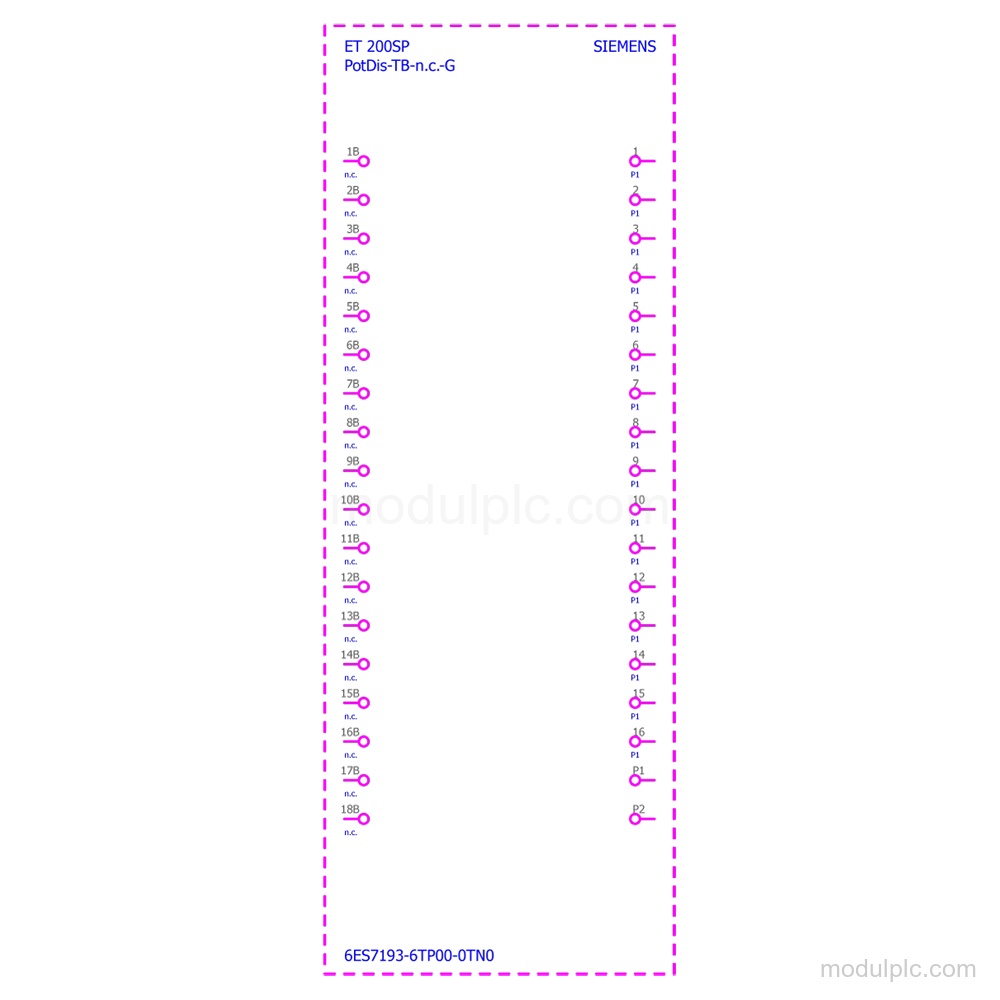

- Process terminals: 18 x n.c. Push-In terminals in the supplied description; the technical data lists 16 process terminals to the I/O module and 2 terminals with connection to the P1 and P2 bus.
- Electrical limits: Process terminals: 48 V DC maximum and 240 V AC maximum. Current carrying capacity: 10 A maximum up to 60 °C and 10 A maximum for the P1 and P2 bus.
- Electrical separation and protection: Potential separation exists between process terminals and supply voltage. External protection for power supply lines: 10 A miniature circuit breaker with type B or C tripping characteristic for the respective rated supply voltage.

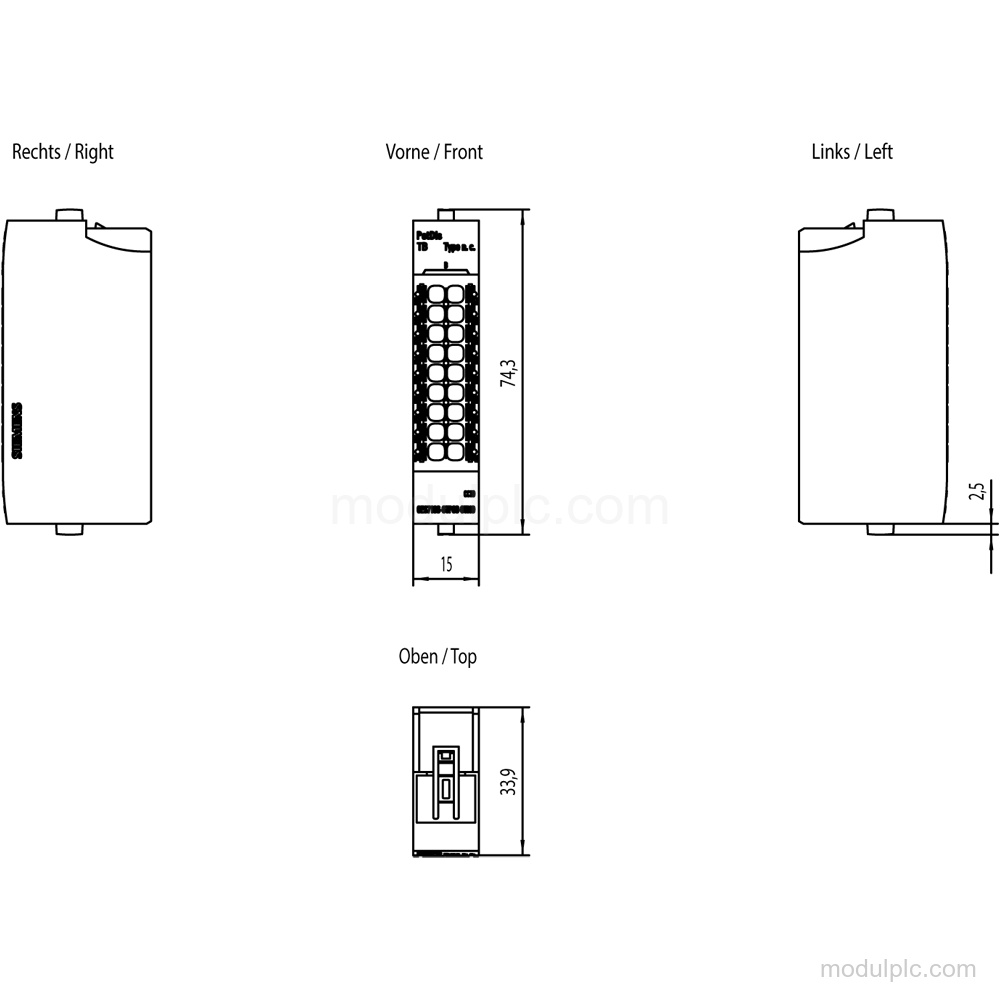

- Connection and dimensions: Push-in terminals accept 0.14 mm2 to 2.5 mm2 conductors; specified ferrule ranges are 0.2 mm2 minimum and 1.5 mm2 maximum. Dimensions: 15 mm W × 74 mm H × 34 mm D; weight: approx. 24 g.
- Installation conditions: Ambient operation range is -30 °C to 60 °C for horizontal installation and -30 °C to 50 °C for vertical installation. Installation altitude is up to 5 000 m, with restrictions above 2 000 m; see the manual.
Frequently Asked Questions
1. What is the Siemens 6ES7193-6TP00-0TN0?
It is a SIMATIC ET 200SP Potential distributor module with product type designation PotDis-TB-n.c.-G.
2. How many process terminals does the module have?
It has 16 process terminals to the I/O module and 2 terminals with connection to the P1 and P2 bus.
3. What connection method and conductor sizes are supported?
It uses Push-in terminals. The conductor range is 0.14 mm2 to 2.5 mm2; with a wire end ferrule, the specified range is 0.2 mm2 to 1.5 mm2.
4. What voltage and current values apply to the process terminals?
The process terminals have a maximum value of 48 V DC and a maximum value of 240 V AC. Current carrying capacity is 10 A maximum up to 60 °C.
5. Which connections are excluded from this configuration?
It is without connection to P1, P2, and AUX; the number of terminals to the AUX bus and add-on terminals is 0.
