Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| DIN mounting rail | According to EN 60715 (35 × 7.5) |
| Profile grooves | 6 mm, B type |
| Material | aluminum |
| Surface design | galvanically tin-plated |
Key Features
- System rail length: Length: 2 000 mm.
- DIN mounting rail: DIN mounting rail according to EN 60715 (35 × 7.5).
- Profile grooves: With 6 mm profile grooves, B type.
- Material and surface: Material: aluminum; surface design: galvanically tin-plated.

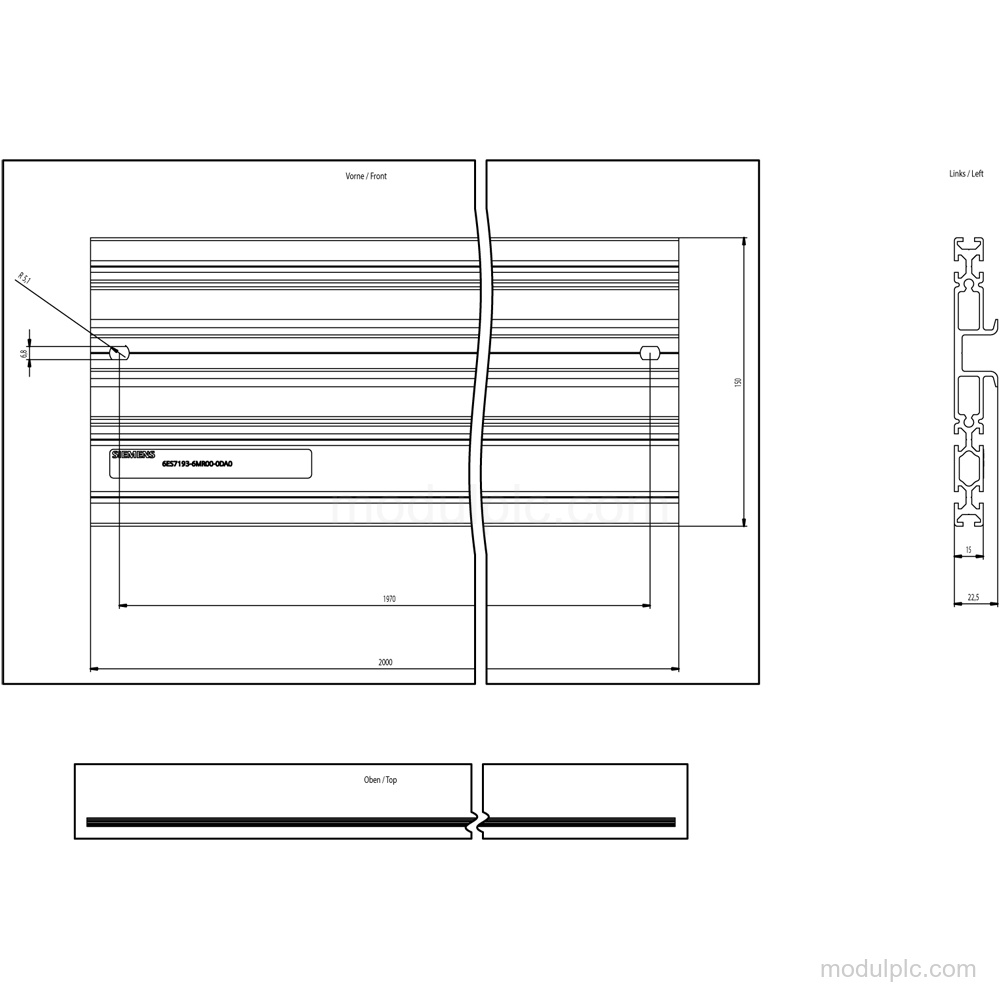

- Dimensions: Width: 2 000 mm; height: 150 mm; depth: 22.5 mm.
- Weight: Weight, approx.: 4 980 g.
Frequently Asked Questions
1. What is the length of the Siemens 6ES7193-6MR00-0DA0?
The system rail length is 2 000 mm.
2. What mounting rail does the 6ES7193-6MR00-0DA0 have?
It has a DIN mounting rail according to EN 60715 (35 × 7.5).
3. What are the dimensions of the 6ES7193-6MR00-0DA0?
The dimensions are width 2 000 mm, height 150 mm, and depth 22.5 mm.
4. What material and surface design does it have?
It has an aluminum material with a galvanically tin-plated surface design.
