Product Overview
Technical Summary
| Parameter | Value |
|---|---|

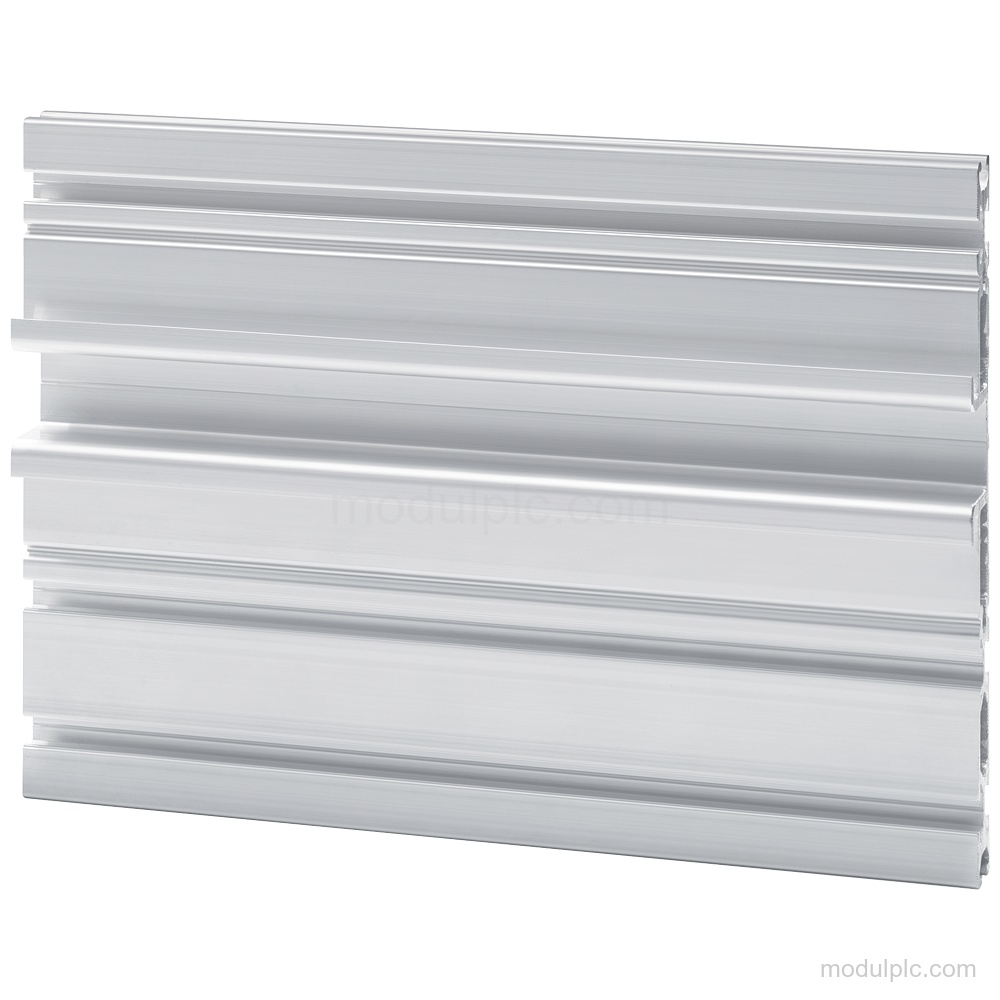

| Product type | SIMATIC system rail |
| Cabinet format | 19" cabinet |
| Mounting rail | DIN mounting rail according to EN 60715 (35 × 7.5) |
| Profile grooves | 6 mm |
| Profile type | B type |
| Material | aluminum |
| Surface design | galvanically tin-plated |
Applications
- Cabinet installation: Provides a system rail for installation in a 19" cabinet.
Key Features
- SIMATIC system rail: System rail for a 19" cabinet with a B type profile.
- DIN mounting rail: Includes a DIN mounting rail according to EN 60715 (35 × 7.5).
- Profile grooves: Has 6 mm profile grooves.

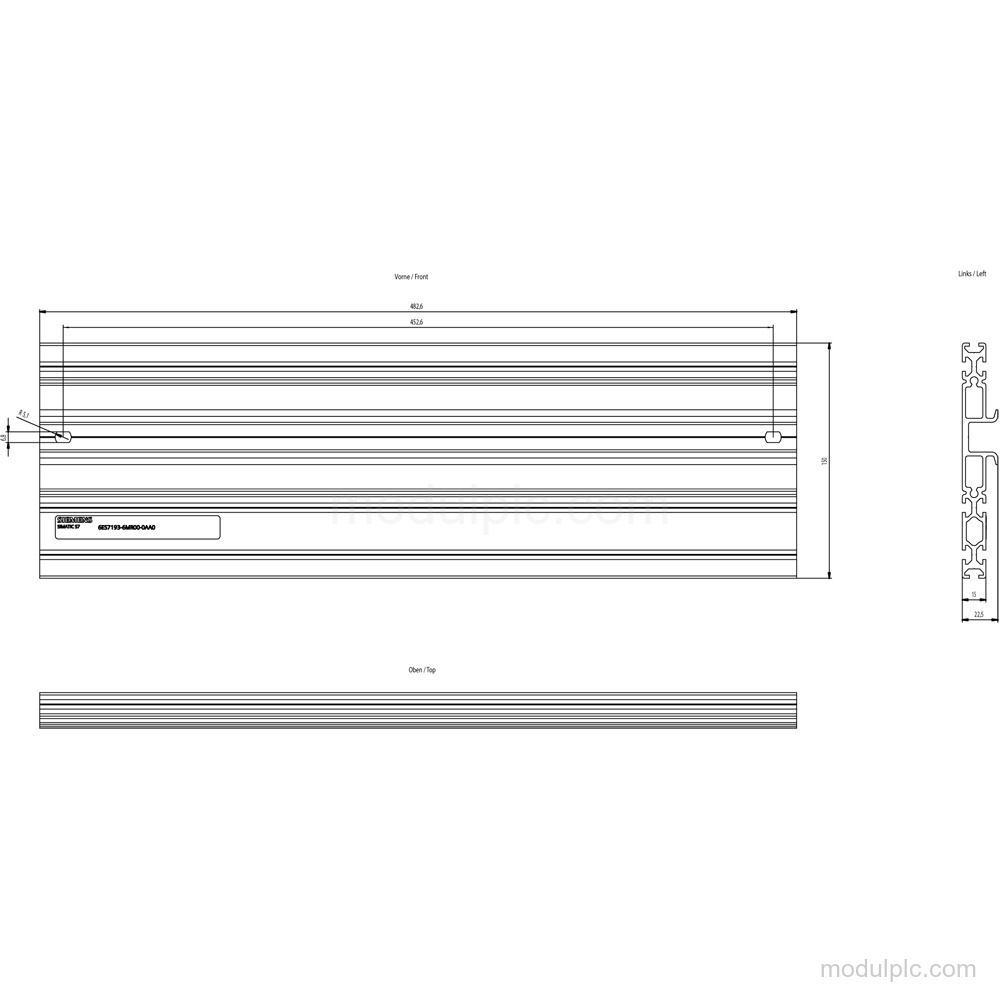

- Dimensions: Width: 482.6 mm; height: 150 mm; depth: 22.5 mm.
- Material and surface: Made of aluminum with a galvanically tin-plated surface.
- Weight: Weight, approx.: 1 200 g.
Frequently Asked Questions
1. What is the function of Siemens 6ES7193-6MR00-0AA0?
It is a SIMATIC system rail for a 19" cabinet.
2. What are the dimensions of the system rail?
Width is 482.6 mm, height is 150 mm, and depth is 22.5 mm.
3. What mounting rail does it include?
It includes a DIN mounting rail according to EN 60715 (35 × 7.5).
4. What material and surface design does it have?
It is made of aluminum and has a galvanically tin-plated surface.
