Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Label type | Color-coded labels |
| Quantity | 10 |
| Color code | CC01 |
| Terminal application | For 16 push-in terminals |
| Minimum dew point | -60 °C; suitable for dry room applications |
Key Features

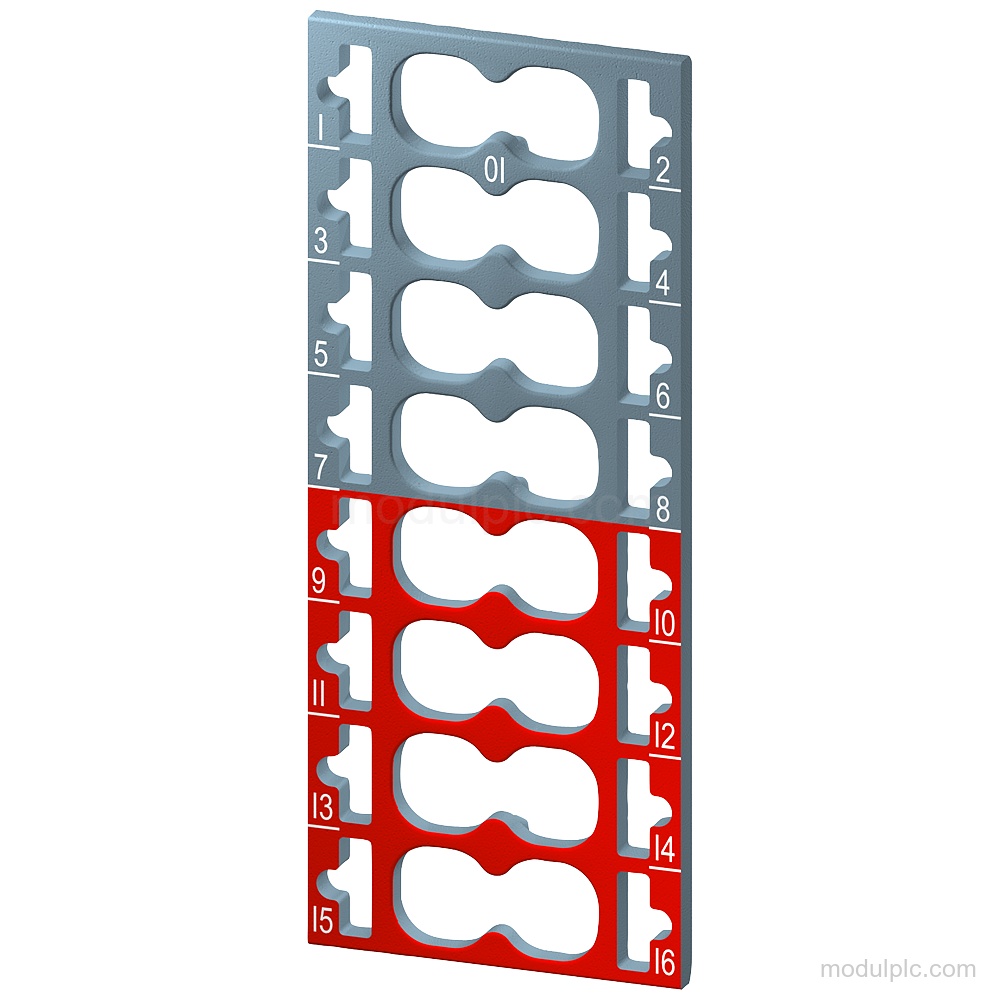

- Color-coded label set: 10 color-coded labels with color code CC01.
- Module-specific design: For I/O modules and 16 push-in terminals.

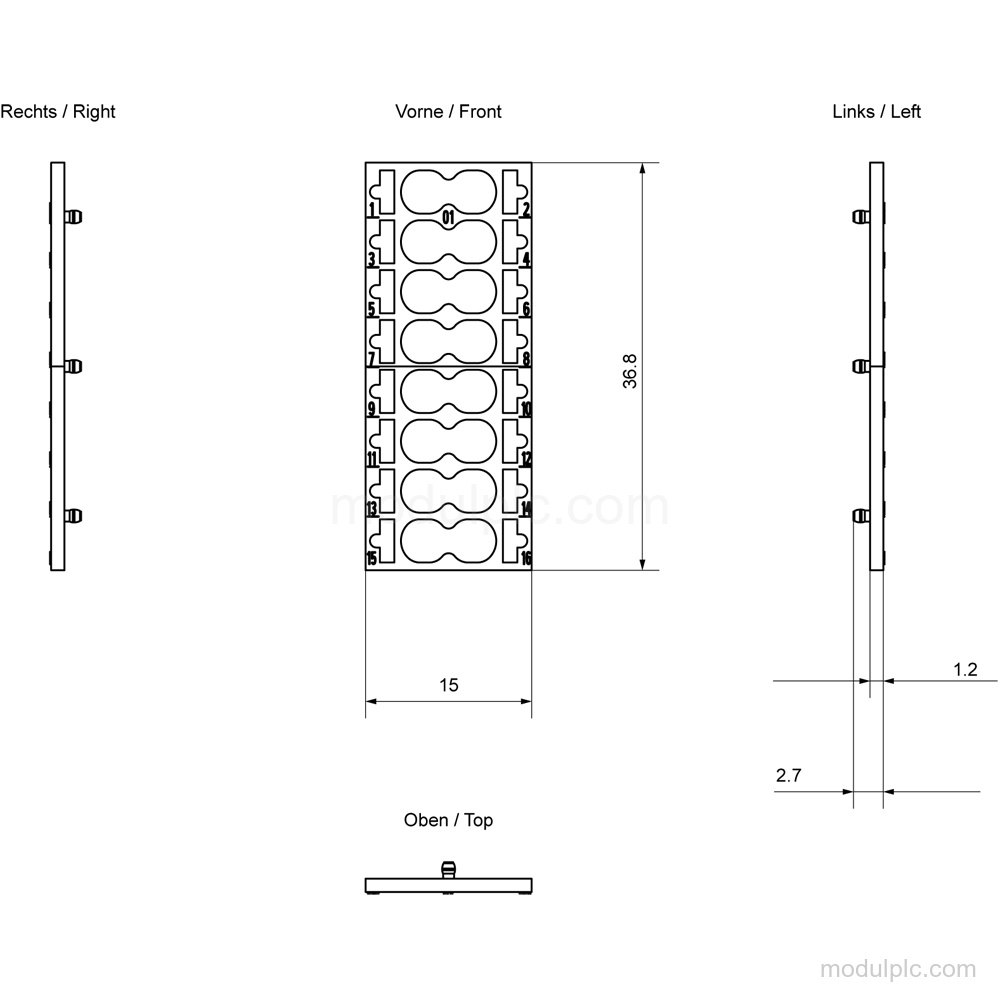

- Dimensions: Width: 15 mm; height: 36.8 mm; depth: 1.2 mm.
- Dry-room suitability: Minimum dew point: -60 °C; suitable for dry room applications.
- Product lifecycle: Active Product.
- Net weight: 0.005 kg.
Frequently Asked Questions
1. What is the Siemens 6ES7193-6CP01-2MA0?
It is a SIMATIC ET 200SP/BL set of 10 color-coded labels for I/O modules.
2. How many terminals is the label set intended for?
It is module-specific for 16 push-in terminals.
3. What are the dimensions of the labels?
Width is 15 mm, height is 36.8 mm, and depth is 1.2 mm.
4. What color code does the set use?
The color code is CC01.
