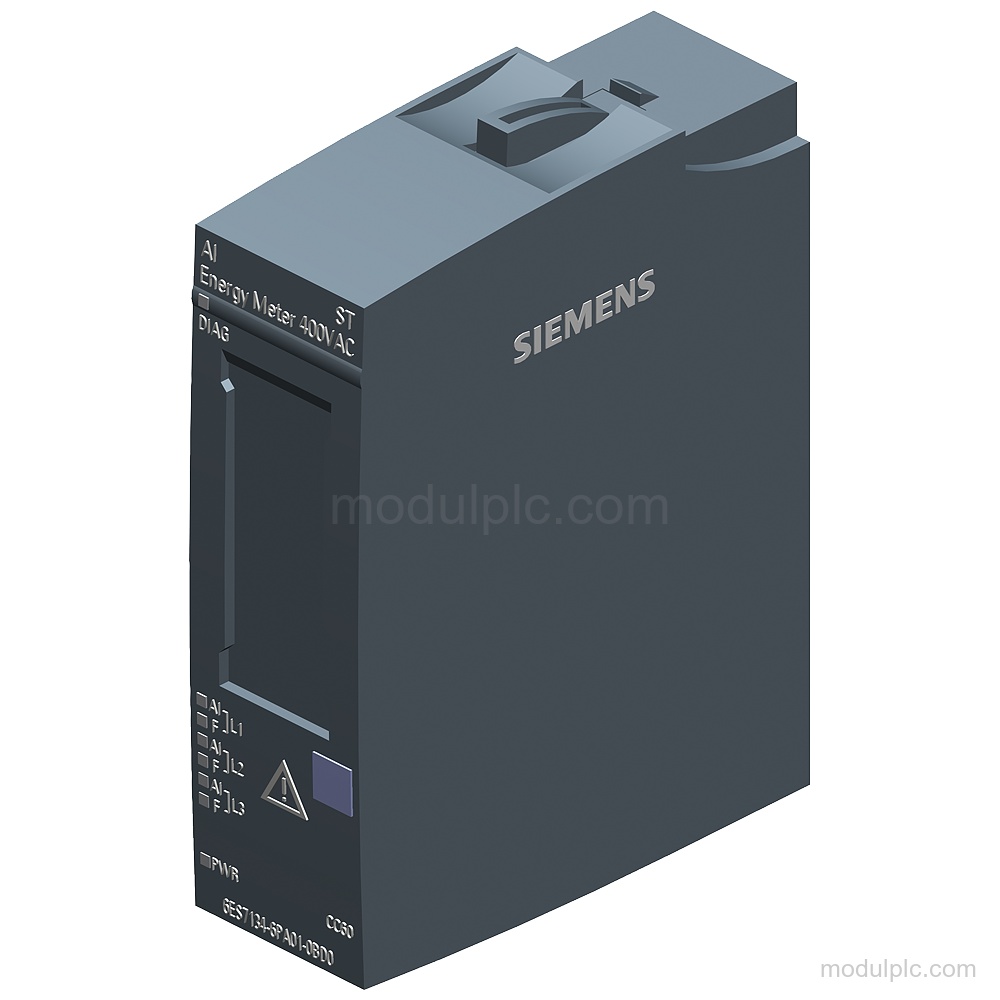

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | AI energy meter 400VAC ST |
| Supply voltage | 100 – 240 V AC; permissible range 90 V to 264 V; 47 Hz to 63 Hz |
| Voltage measurement | 230 V phase-to-neutral; 400 V line-to-line |
| Current measurement | 5 % to 100 % of secondary rated current; 1 A, 5 A |
| Measurement procedure | TRMS for voltage and current |
| Measurement acquisition bandwidth | 2 kHz |
| Cycle time, all channels | 50 ms |
| Diagnostics | Diagnostic alarm; channel and module diagnostic LEDs |
| Mounting position | any |
| Usable BaseUnit | BU type D0 |
| Product lifecycle | Product cancellation |
Applications
- Electrical energy measurement: Measures voltage, current, energy, frequency, apparent power, active power and reactive power.
Key Features
- Energy measurement functions: Measures voltage, current, energy, frequency, power, active power and reactive power. Voltage and current measurement use TRMS.

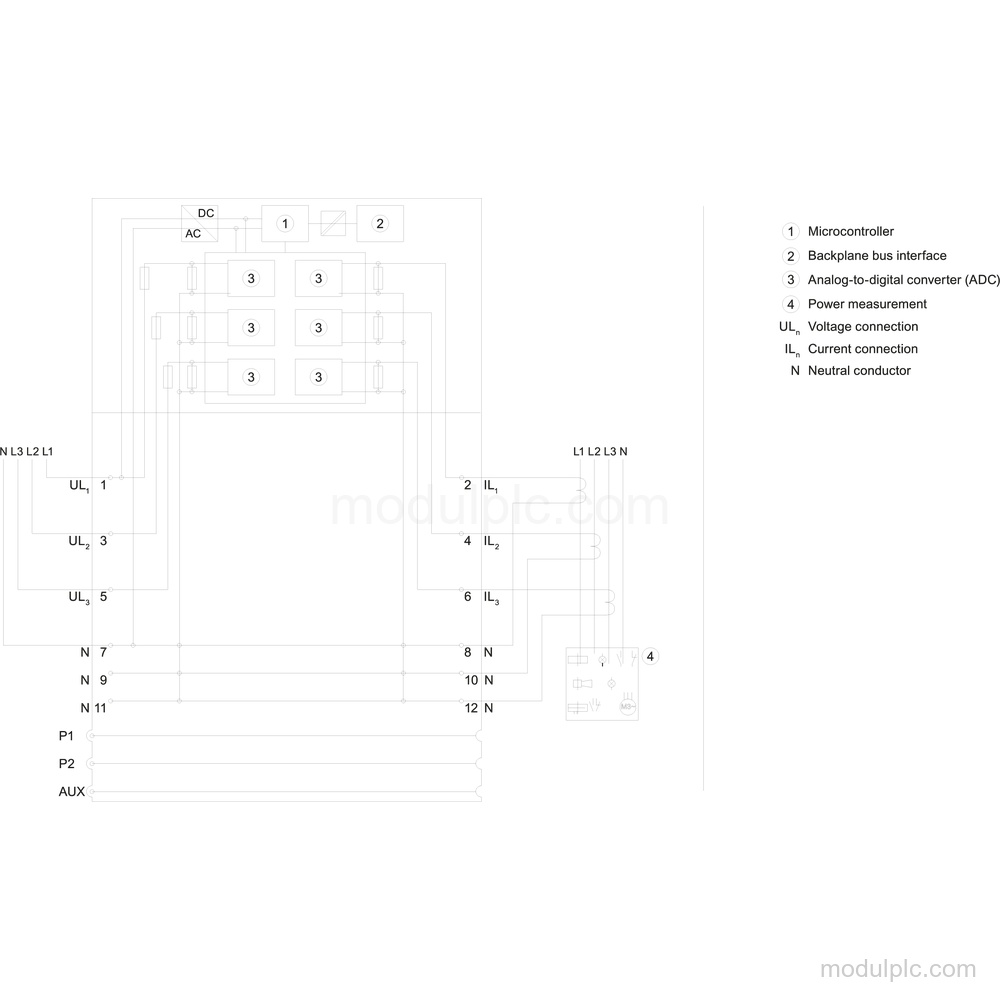

- Voltage measurement: Measures 230 V between phase and neutral conductor and 400 V between line conductors. The permissible phase-to-neutral range is 90 V to 264 V; the line-to-line range is 155 V to 460 V.
- Current measurement: Supports 5 % to 100 % of the secondary rated current for 1 A or 5 A current transformers. A current transformer is required; the module is without voltage transformer.
- Diagnostics and data: Provides diagnostic alarms, channel status indication with a green LED, channel diagnostics with a red Fn LED, module diagnostics with a green/red DIAG LED, and I&M0 to I&M3 data.
- Supply and mounting: Supply is via voltage measurement channel L1. Rated supply is 100 – 240 V AC, with a permissible range of 90 V to 264 V and 47 Hz to 63 Hz. Mounting position is any.

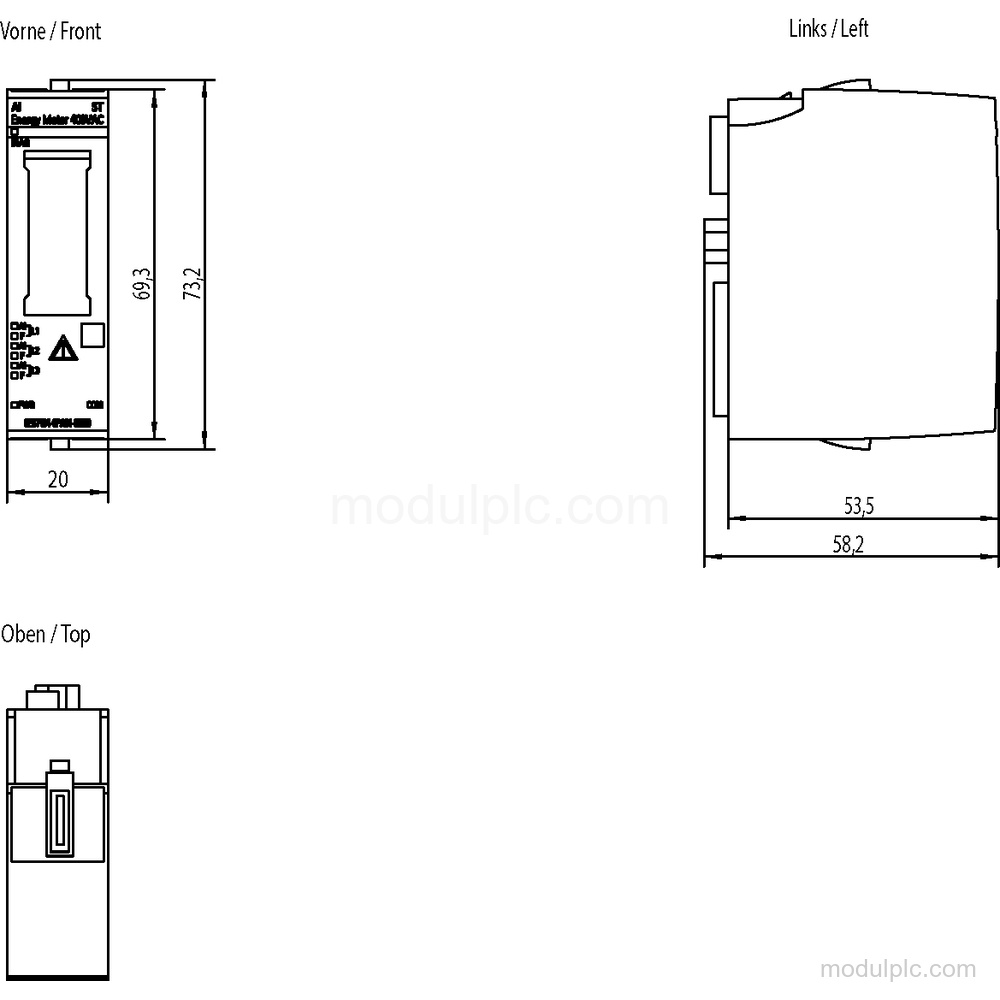

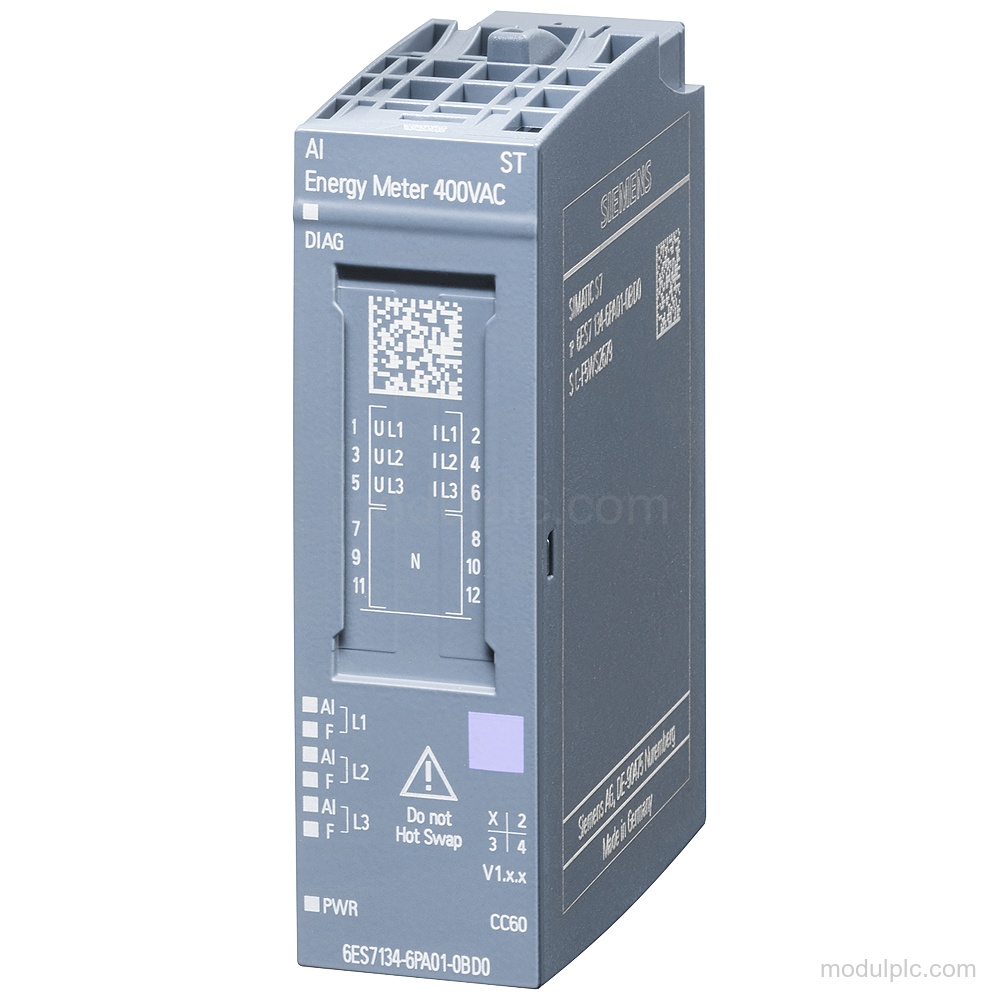

- Module dimensions and lifecycle: Dimensions are 20 mm wide, 73 mm high and 58 mm deep; weight is approximately 45 g. Product lifecycle: Product cancellation.
Frequently Asked Questions
1. What does the Siemens 6ES7134-6PA01-0BD0 measure?
It measures voltage, current, energy, frequency, apparent power, active power and reactive power.
2. What voltage ranges does this energy meter support?
It measures 230 V between phase and neutral conductor and 400 V between line conductors. The permissible ranges are 90 V to 264 V phase-to-neutral and 155 V to 460 V line-to-line.
3. What current transformer configuration is required?
Current measurement supports 5 % to 100 % of the secondary rated current for 1 A or 5 A current transformers. The module is without voltage transformer and with current transformer.
4. How is the 6ES7134-6PA01-0BD0 installed and supplied?
Mounting position is any. Supply is via voltage measurement channel L1, with a rated value of 100 – 240 V AC.
