Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | DQ 8×24 V DC/0.5 A HF |
| Digital outputs | 8 |
| Output type | Source output (PNP, current-sourcing) |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V DC |
| Output current | 0.5 A for signal "1"; 4 A per module, max. |
| Switching capacity | 0.5 A with resistive load, max.; 5 W on lamp load, max. |
| Switching frequency | 100 Hz with resistive load, max.; 2 Hz with inductive load, max.; 10 Hz on lamp load, max. |
| BaseUnit | BU type A0 |
| Diagnostics | Supply voltage, wire break, short-circuit, group error, diagnostic alarm |
| Isolation | 707 V DC (type test) |
Applications
- Digital output control: The module controls digital inputs.
- Redundant load control: Two outputs can be switched in parallel for redundant control of a load.
Key Features
- Digital output channels: 8 parameterizable digital outputs with source output (PNP, current-sourcing); current-sinking is not supported.
- Output electrical data: Output voltage rated value: 24 V DC. Output current for signal "1": 0.5 A rated value; current per module, max.: 4 A.
- Load and switching limits: With resistive load, switching capacity, max.: 0.5 A; with lamp load, max.: 5 W. Switching frequency, max.: 100 Hz with resistive load, 2 Hz with inductive load, and 10 Hz with lamp load.
- Supply and protection: Supply voltage rated value: 24 V DC, permissible range: 19.2 V to 28.8 V DC. Reverse polarity protection and short-circuit protection: Yes.
- Diagnostics and LEDs: Diagnostics include supply-voltage monitoring, channel-by-channel wire-break and short-circuit detection, group error, diagnostic alarm, and substitute values. LEDs indicate PWR, channel status, channel diagnostics, and module diagnostics.

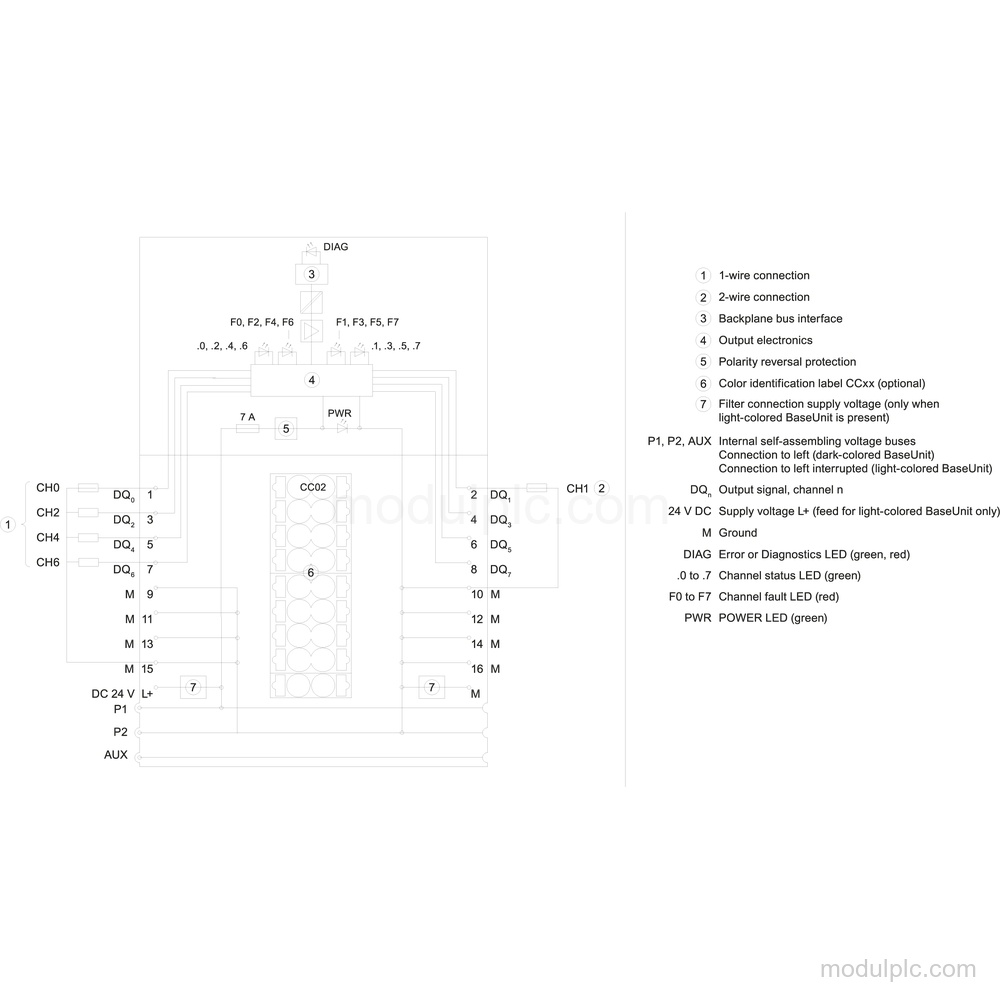

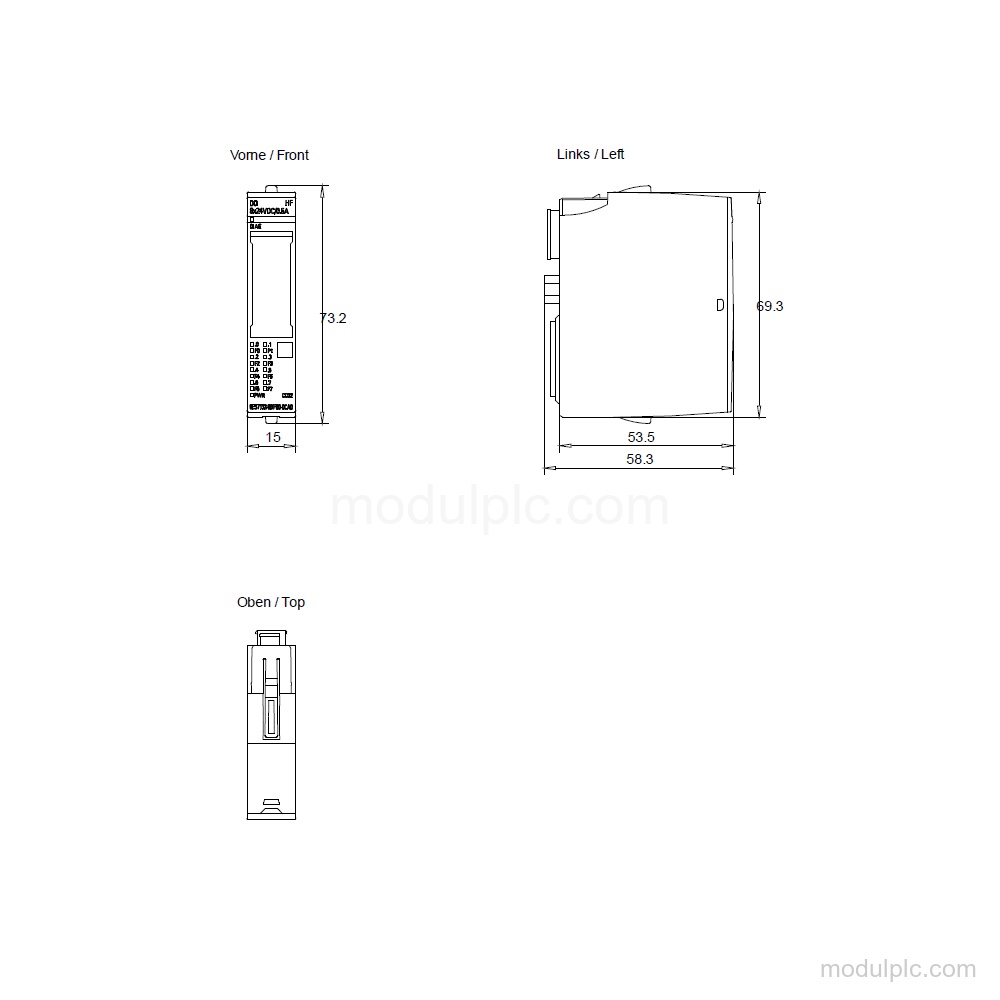

- BaseUnit and installation: Usable BaseUnit: BU type A0. A 3-wire connection uses BU type A0 with AUX terminals or a potential distributor module; a 4-wire connection uses BU type A0 + Potential distributor module.
Frequently Asked Questions
1. How many digital outputs does 6ES7132-6BF00-0CA0 have?
It has 8 parameterizable digital outputs.
2. What output type does this module use?
It uses source output (PNP, current-sourcing). Current-sinking is No.
3. What supply voltage does the module require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
4. Which diagnostics are available?
It has supply-voltage monitoring, channel-by-channel wire-break and short-circuit detection, group error, diagnostic alarm, and diagnostic LEDs.
5. Which BaseUnit and connection variants are supported?
The usable BaseUnit is BU type A0. 1-wire and 2-wire connections use BU type A0; 3-wire uses BU type A0 with AUX terminals or a potential distributor module; 4-wire uses BU type A0 + Potential distributor module.
