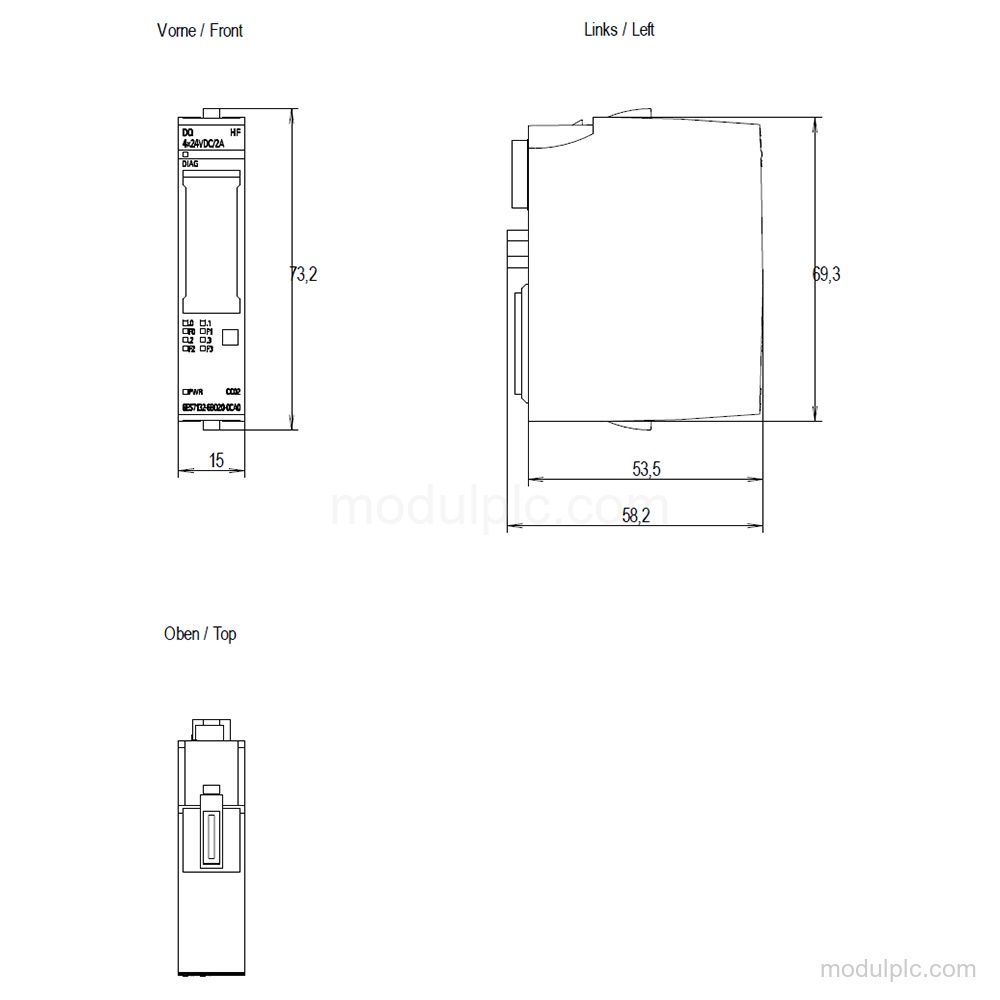

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital output type | Source output (PNP, current-sourcing) |
| Number of digital outputs | 4 |
| Rated output current per channel | 2 A |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Usable BaseUnit | BU type A0 |
| Short-circuit protection | Yes; Electronic |
| Channel diagnostics | Wire break, short-circuit to ground, and short-circuit to L+; channel by channel |
| Backplane bus isolation | Yes |
| Minimum isochronous bus cycle time | 500 μs |
Applications
- Digital input control: Controls a digital input with a minimum current consumption of 7 mA.
Key Features
- Digital outputs: 4 parameterizable source outputs (PNP, current-sourcing), with 2 A rated output current per channel.
- Supply voltage: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC, with reverse polarity protection.
- Output protection: Electronic short-circuit protection; response threshold: 2.8 to 5.2 A.
- Channel diagnostics: Diagnostics for supply voltage, wire break, short-circuit to ground, and short-circuit to L+, channel by channel.

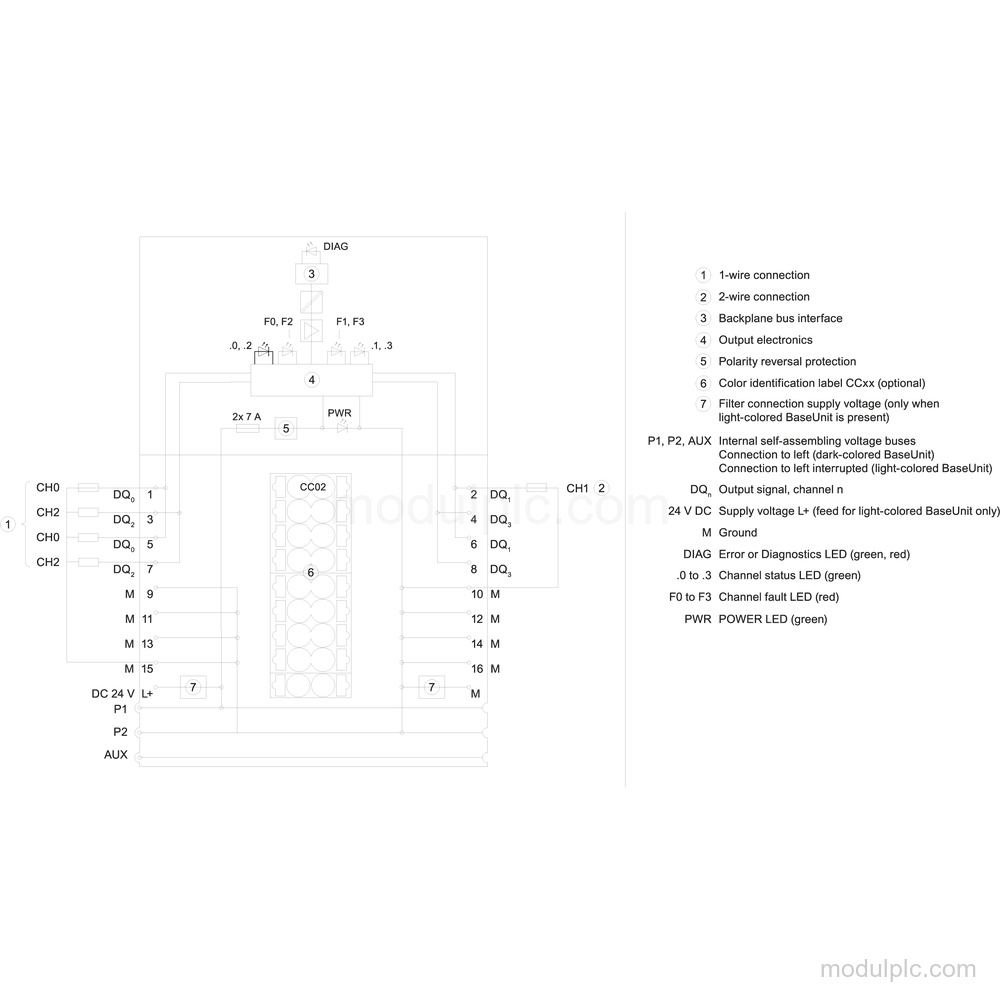

- BaseUnit and connections: Usable BaseUnit: BU type A0. 3-wire connection requires BU type A0 with AUX terminals or a potential distributor module; 4-wire connection requires BU type A0 + potential distributor module.
- Isolation and timing: Channels are isolated from the backplane bus; isochronous mode supports a 500 μs minimum bus cycle time and 8 μs maximum jitter.
Frequently Asked Questions
1. What output type and channel count does 6ES7132-6BD20-0CA0 have?
It has 4 parameterizable source outputs (PNP, current-sourcing). Current-sinking is not supported.
2. What supply voltage does this module use?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
3. What diagnostics are supported?
It supports supply-voltage monitoring, channel-by-channel wire-break detection, channel-by-channel short-circuit detection to ground and L+, group error indication, and diagnostic alarms.
4. Which BaseUnit and connection variants are supported?
BU type A0 is used for 1-wire and 2-wire connections. A 3-wire connection requires BU type A0 with AUX terminals or a potential distributor module; a 4-wire connection requires BU type A0 + potential distributor module.
