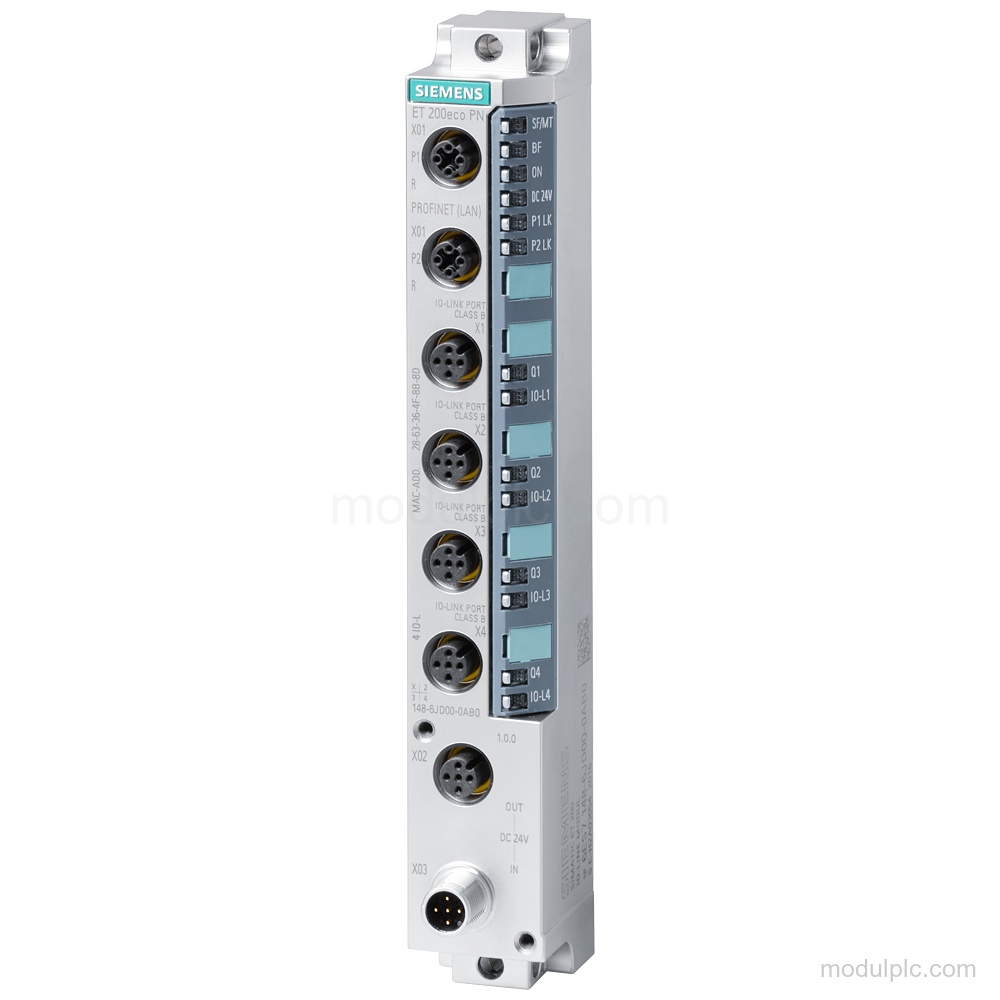

Product Overview

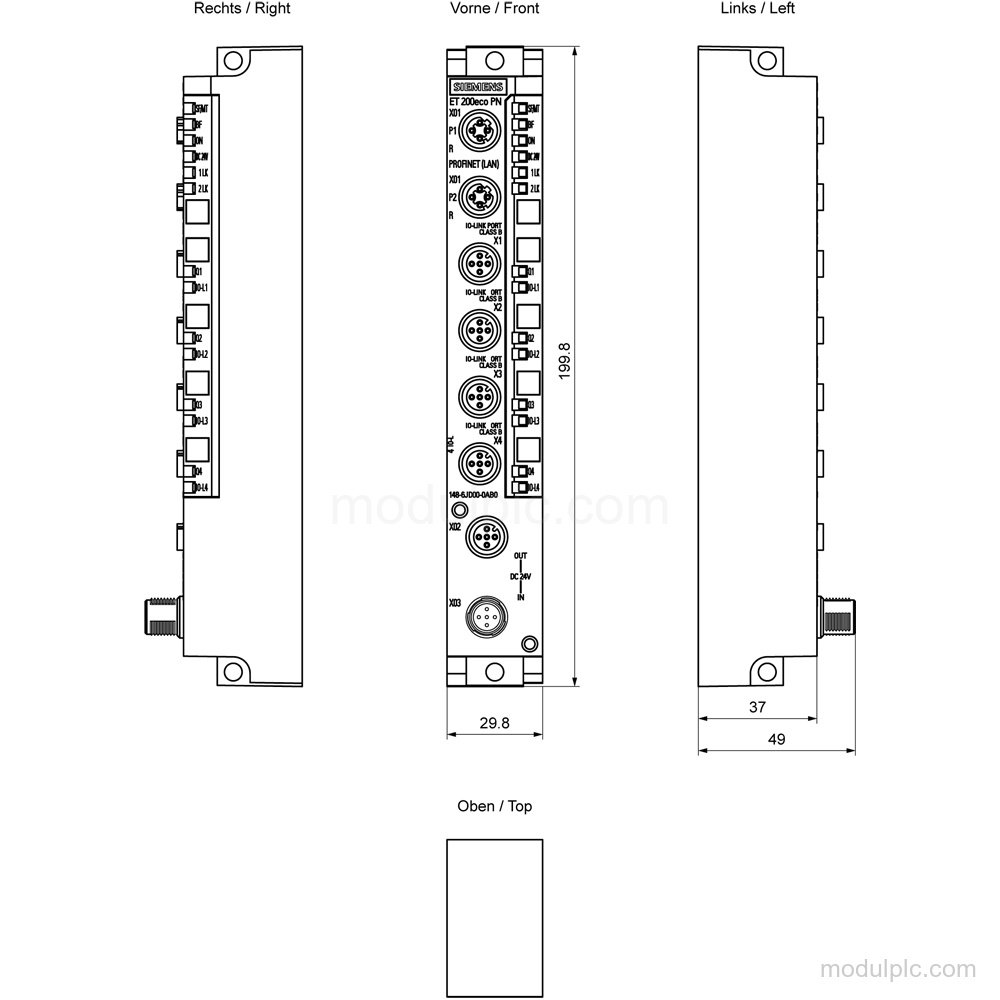

Technical Summary
| Parameter | Value |
|---|---|
| IO-Link ports | 4; all 4 simultaneously controllable |
| IO-Link protocols | IO-Link protocol 1.0 and IO-Link protocol 1.1 |
| Digital operating modes | DI and DQ; DQ max. 100 mA |
| PROFINET interfaces | 1; 100BASE-TX; max. 100 Mbit/s |
| Rated supply voltage | 24 V DC |
| Device connections | Port type A via 3-core cable; Port type B |
| Protection | IP65/67 |
| Encoder supply outputs | 4; max. 500 mA per channel |
| Power loss, typ. | 4.8 W |
| Order lifecycle | Product cancellation |
Applications
- IO-Link device connection: Connects IO-Link devices through 4 IO-Link ports using Port type A or Port type B connections.
- Digital input and output operation: Provides DI and DQ operating modes, with DQ up to max. 100 mA.
- PROFINET communication: Supports communication using PROFINET IO through 1 PROFINET interface.
Key Features
- IO-Link master with 4 ports: Supports IO-Link protocol 1.0 and 1.1, with 4 ports, all simultaneously controllable.
- DI and DQ operating modes: Supports DI and DQ; DQ is limited to max. 100 mA.
- PROFINET interface: Has 1 PROFINET interface with 100BASE-TX transmission, integrated switch and M12 port.
- 24 V supply: Rated supply voltage is 24 V DC; power supply according to NEC Class 2 is required.
- M12 device connections: IO-Link devices connect through Port type A via 3-core cable or Port type B with additional device supply: max. 2 A per port, max. 4 A per module.

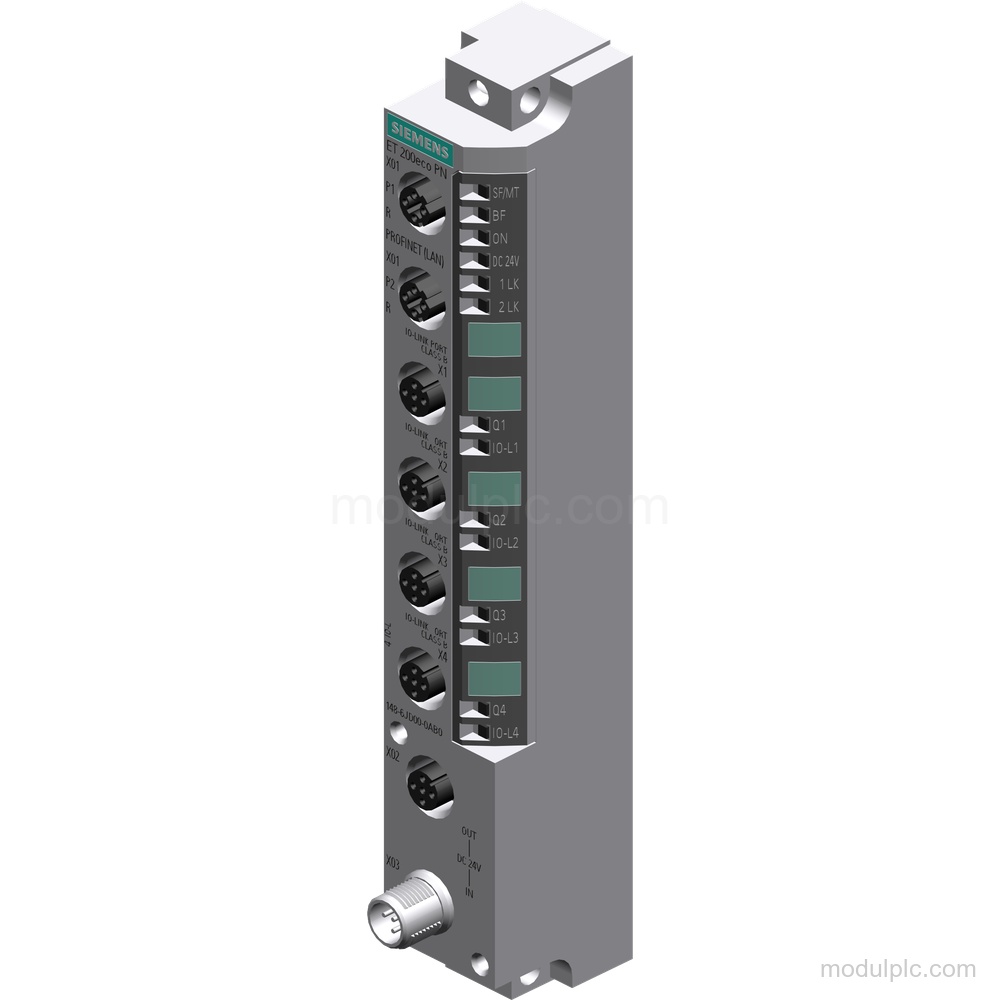

- IP65/67 protection: The module has IP65/67 protection and green "ON" and red/yellow "SF/MT" LEDs for supply-voltage monitoring and group error indication.
Frequently Asked Questions
1. How many IO-Link ports does 6ES7148-6JD00-0AB0 have?
It has 4 IO-Link ports, and all 4 are simultaneously controllable.
2. Which IO-Link protocols does the module support?
It supports IO-Link protocol 1.0 and IO-Link protocol 1.1.
3. What supply voltage does the module require?
The rated supply voltage is 24 V DC, and a power supply according to NEC Class 2 is required.

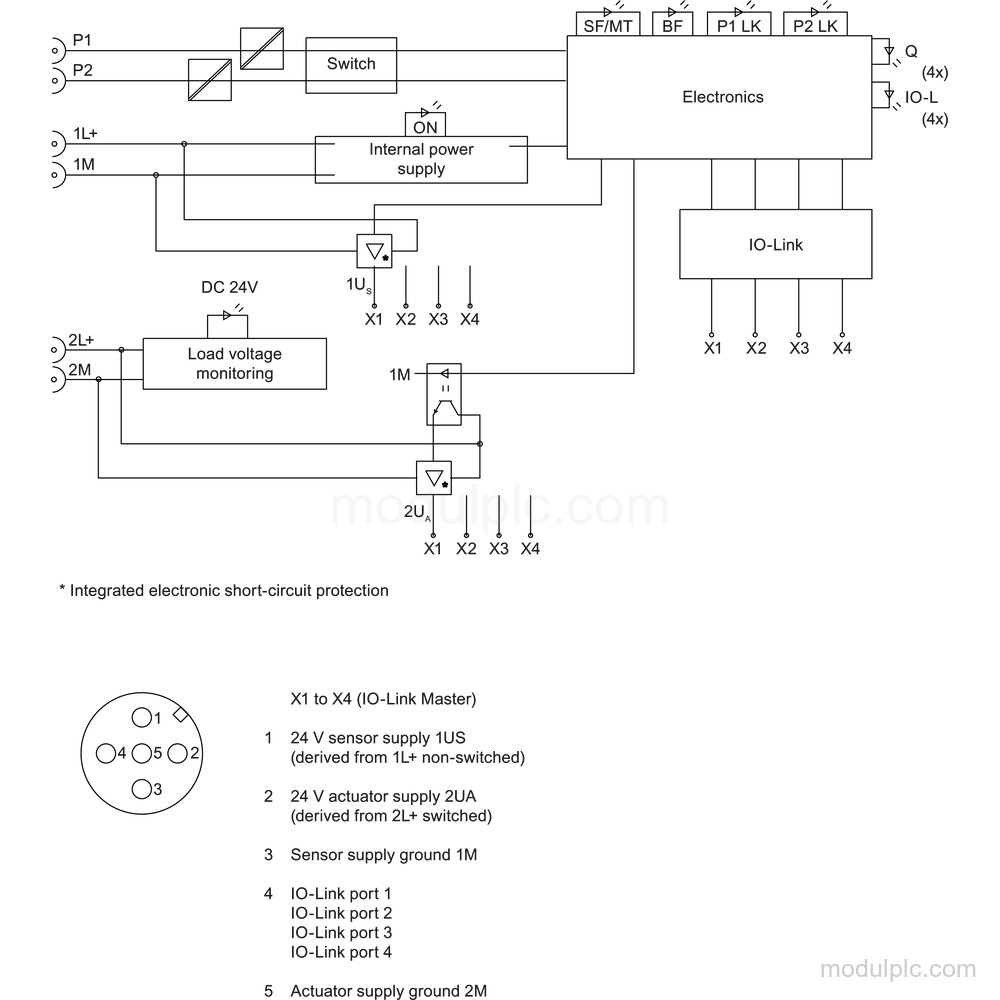

4. Which connection types are available for IO-Link devices?
Port type A is available via 3-core cable. Port type B supports additional device supply of max. 2 A per port and max. 4 A per module.
5. What should be verified before requesting a quote?
Verify the 4xM12 connection, 1 PROFINET interface, IP65/67 protection, and the Product cancellation lifecycle.
