Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital inputs | 8, in groups of 4 |
| Digital outputs | 8, in groups of 4 |
| Input signal 0 | -3 to +5V |
| Input signal 1 | +11 to +30V |
| Output current for signal 1 | 1.3 A; Maximum |
| Supply voltage | 24 V DC |
| PROFINET interfaces | 1 |
| Transmission rate | 100 Mbit/s; max. |
| Connections | 8xM12 |
| Protection | IP65/67 |
| Product lifecycle | Product cancellation |
Applications
- Digital signal acquisition: Acquires digital signals through 8 digital inputs with a 24 V DC rated value.
- Digital output control: Controls digital outputs with a 1.3 A maximum output current for signal 1.
- PROFINET communication: Supports PROFINET IO communication through 1 PROFINET interface.
Key Features
- Digital I/O: 8 digital inputs and 8 digital outputs, arranged in groups of 4.
- 24 V DC signals: Input rated value is 24 V DC; signal 0 is -3 to +5V and signal 1 is +11 to +30V.
- Output capacity: Digital outputs provide 1.3 A maximum for signal 1 and support a maximum lamp load of 5 W.
- PROFINET interface: 1 PROFINET interface with an M12 port, integrated switch, and transmission rate up to 100 Mbit/s.

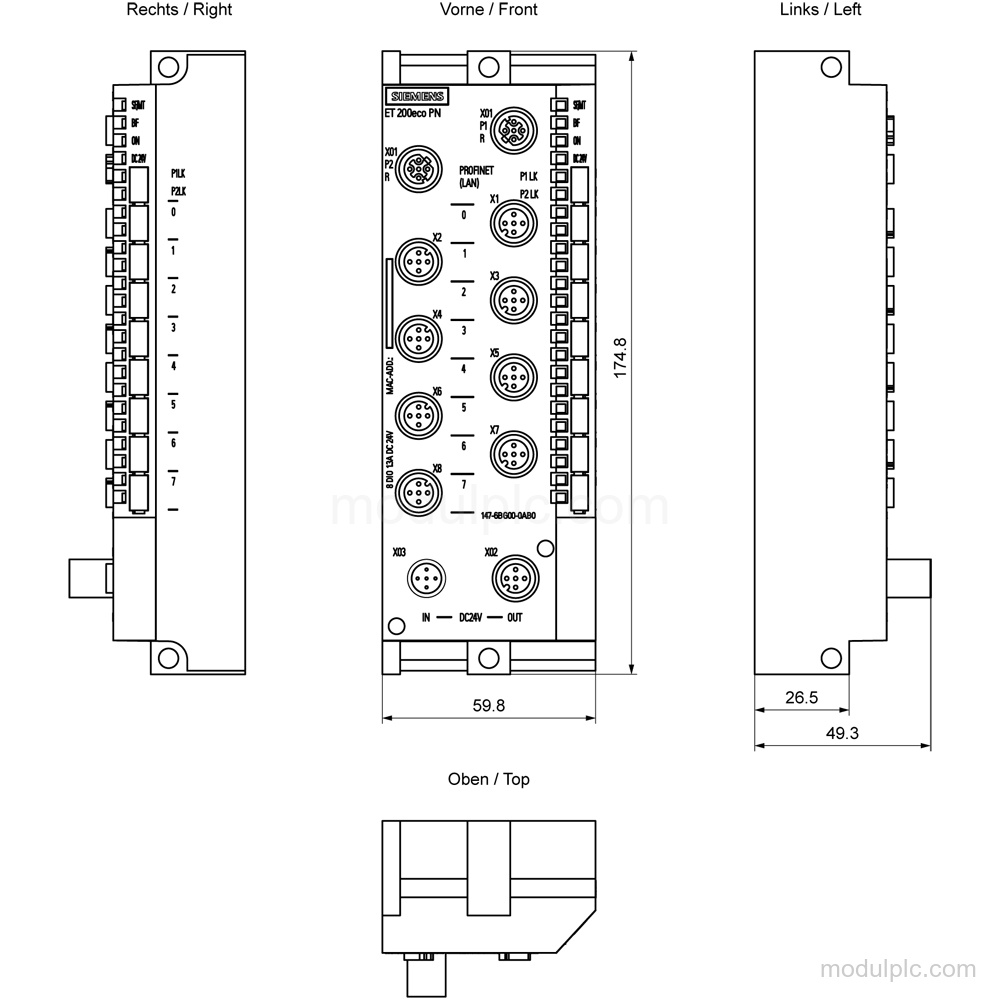

- Connection and protection: 8xM12 connections and IP65/67 protection are supplied.

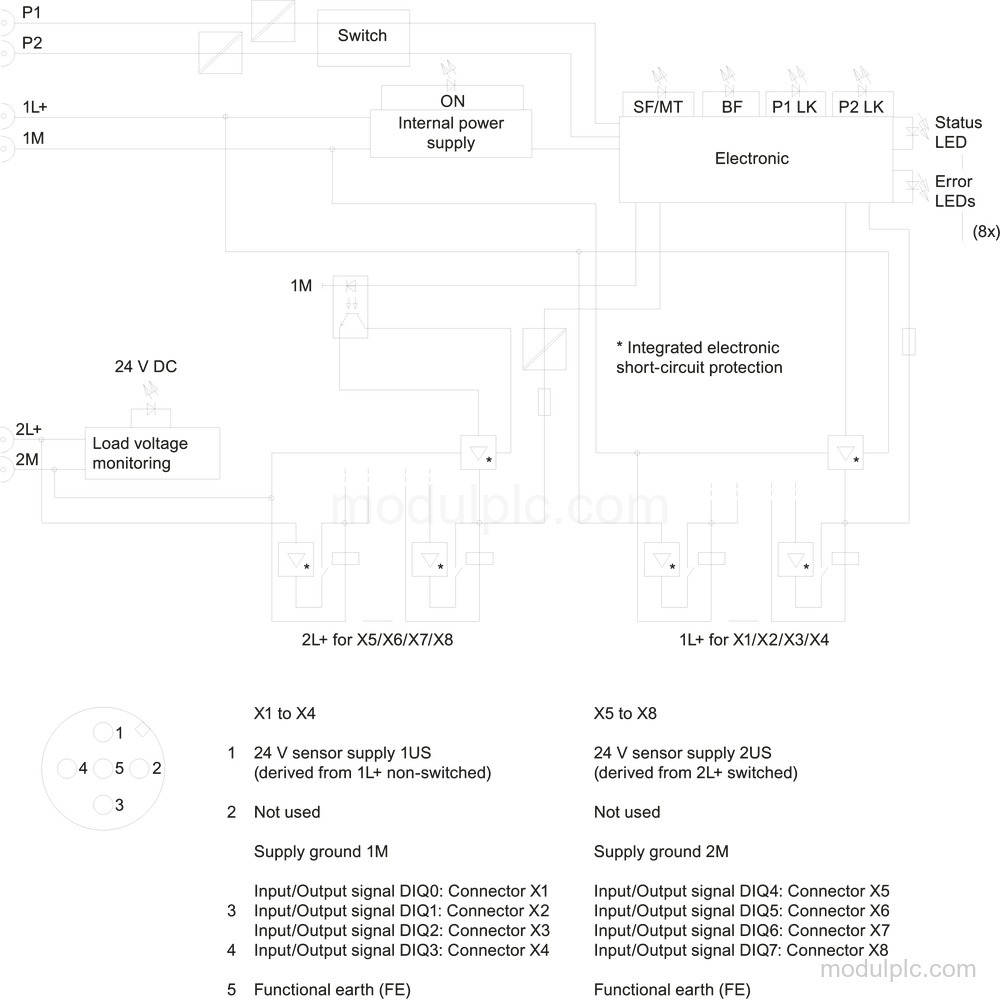

- Diagnostics: Diagnostics include diagnostic alarms, supply-voltage monitoring with green "ON" LED, wire-break detection, short-circuit detection, and group error indication with red/yellow "SF/MT" LED.
Frequently Asked Questions
1. How many digital inputs and outputs does the 6ES7147-6BG00-0AB0 have?
It has 8 digital inputs and 8 digital outputs, with each type arranged in groups of 4.
2. What input signal ranges does this module support?
For signal 0, the input voltage is -3 to +5V. For signal 1, it is +11 to +30V.
3. Which PROFINET interface is provided?
The module has 1 PROFINET interface with an M12 port, integrated switch, and transmission rate up to 100 Mbit/s.
4. What connections and protection does the configuration have?
It has 8xM12 connections and IP65/67 protection.
