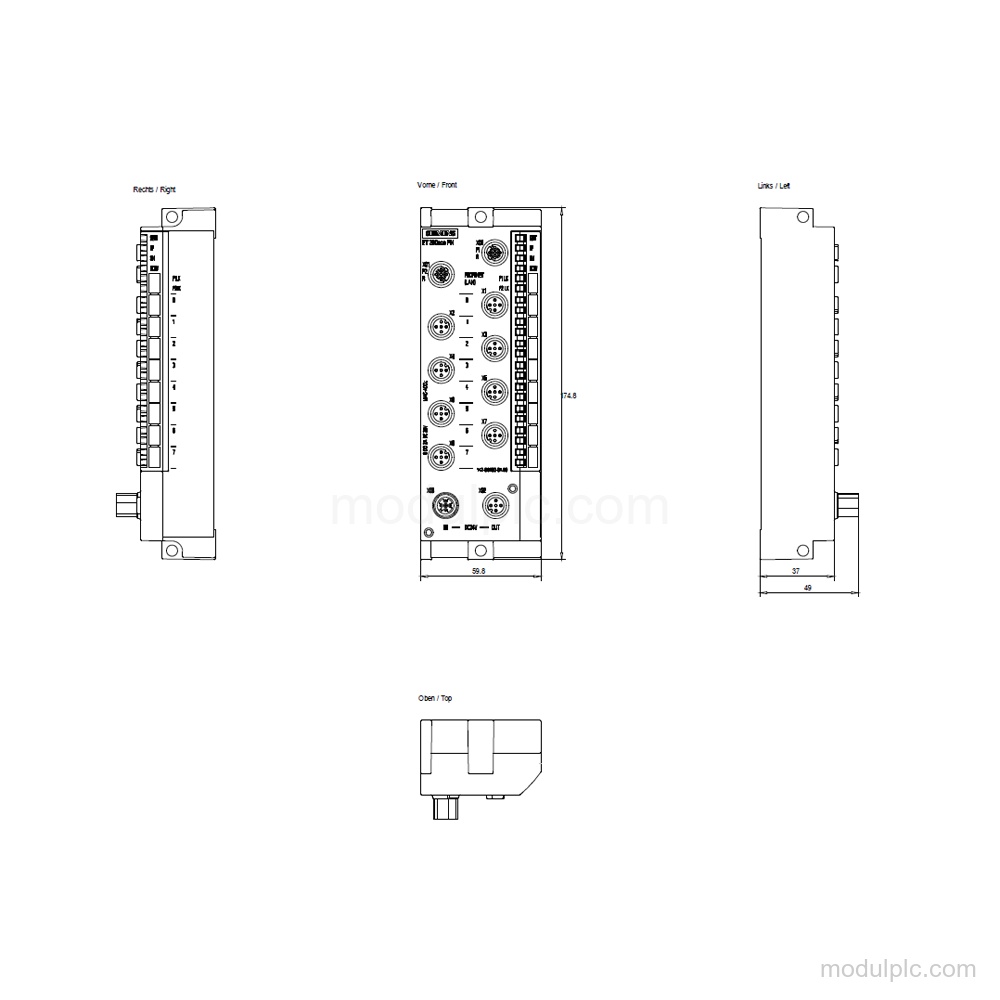

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital output channels | 8 |
| Digital output grouping | In groups of 4 |
| Rated output current | 2 A for signal "1" |
| Rated supply voltage | 24 V DC |
| Load voltage range | 20.4 V to 28.8 V for 1L+ and 2L+ |
| PROFINET interfaces | 1 |
| M12 connections | 8xM12 |
| Protection degree | IP65/67 |
Applications
- Digital input control: The digital outputs can control a digital input.
- Redundant load control: The module supports redundant control of a load.

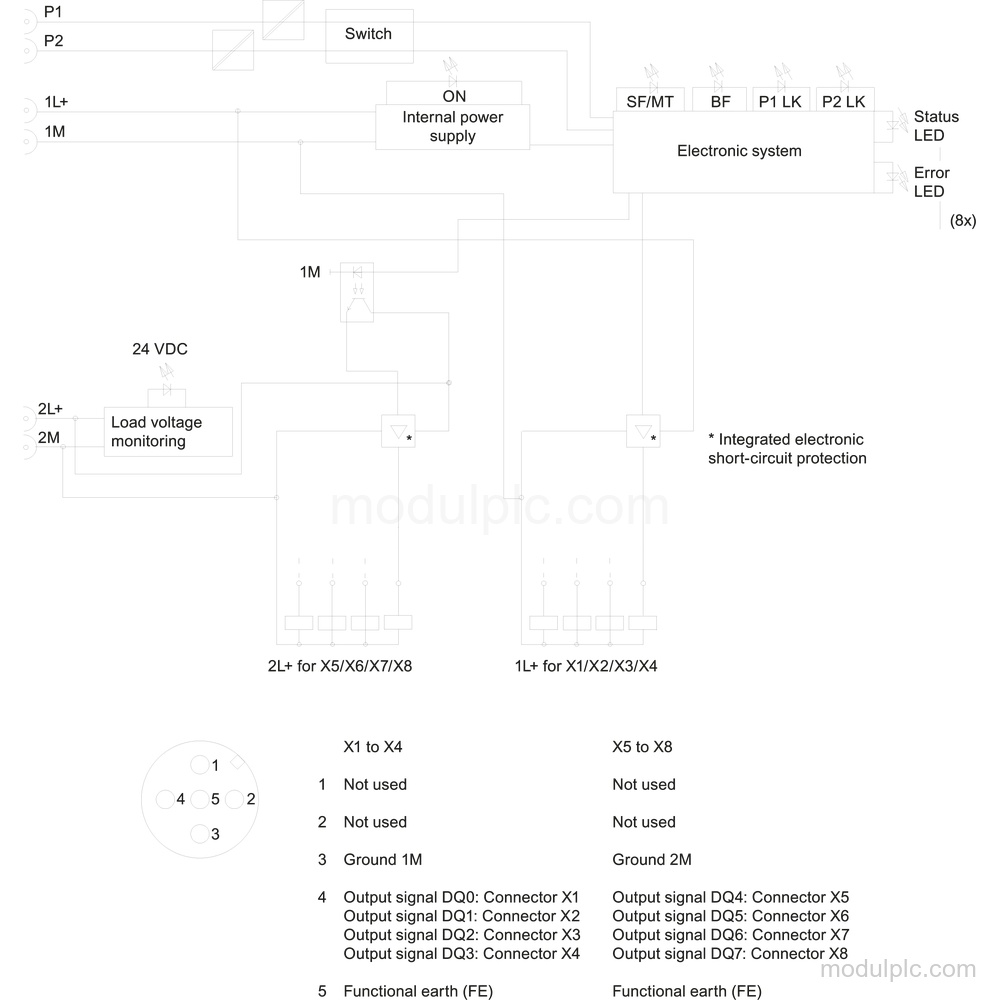

Key Features
- Digital outputs: 8 digital outputs in groups of 4, with short-circuit protection and 2 A rated output current for signal "1".
- PROFINET interface: 1 PROFINET interface with an integrated switch, 100BASE-TX transmission procedure, and transmission rate up to 100 Mbit/s.
- Supply and load voltage: Rated supply voltage is 24 V DC. Load voltages 1L+ and 2L+ are each rated at 24 V DC, with a permissible range of 20.4 V to 28.8 V.
- Diagnostics and protection: The module has diagnostic functions, diagnostic alarms, supply-voltage monitoring with a green "ON" LED, short-circuit and wire-break diagnosis, and IP65/67 protection.
Frequently Asked Questions
1. How many digital outputs does 6ES7142-6BR00-0AB0 have?
It has 8 digital outputs in groups of 4.
2. What output current is supported?
The rated output current is 2 A for signal "1". The maximum residual current for signal "0" is 1.5 mA.
3. Which PROFINET functions are supported?
It has 1 PROFINET interface, an integrated switch, PROFINET IO, MRP, SNMP, DCP, LLDP, ping, and ARP. PROFINET CBA and PROFIsafe are not supported.
4. What connections and protection does the module have?
It has 8xM12 connections and IP65/67 protection.
