Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital output count | 16 |
| Output grouping | In groups of 8 |
| Output signal "1" current | 1.3 A; Maximum |
| Rated supply voltage | 24 V DC |
| Load voltage range | 20.4 V to 28.8 V DC |
| PROFINET interface count | 1 |
| Maximum transmission rate | 100 Mbit/s |
| M12 connections | 8xM12 |
| Degree of protection | IP65/67 |
| Typical power loss | 5.5 W |
Applications
- Digital output control: Controls digital inputs through its digital outputs.
- Redundant load control: Supports redundant control of a load by parallel switching of two outputs.
Key Features

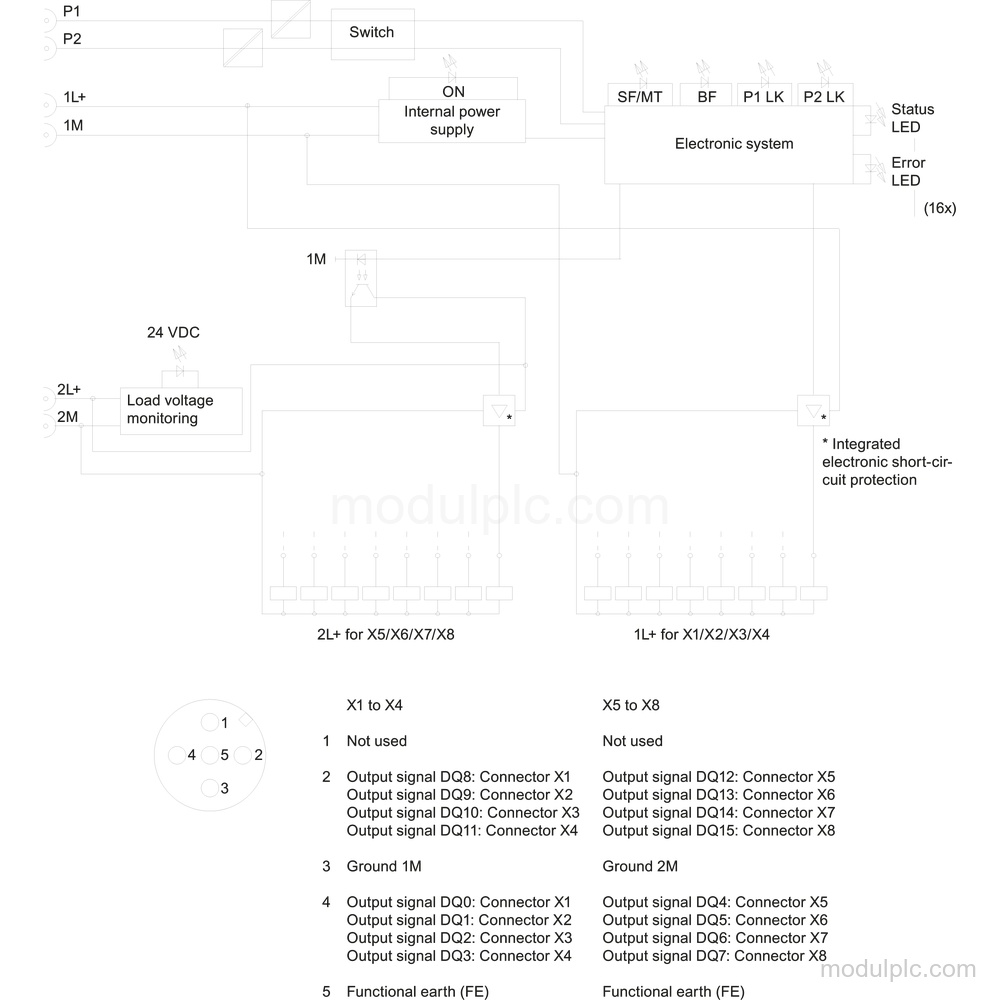

- Digital outputs: 16 digital outputs in groups of 8; short-circuit protection and control of a digital input are supported.
- Output rating: Signal "1" output current: 1.3 A maximum; lamp load switching capacity: 5 W maximum.
- Supply voltage: Rated supply and load voltage: 24 V DC; load-voltage permissible range: 20.4 V to 28.8 V.
- PROFINET interface: 1 PROFINET interface with integrated switch, 100BASE-TX transmission, and transmission rate up to 100 Mbit/s.

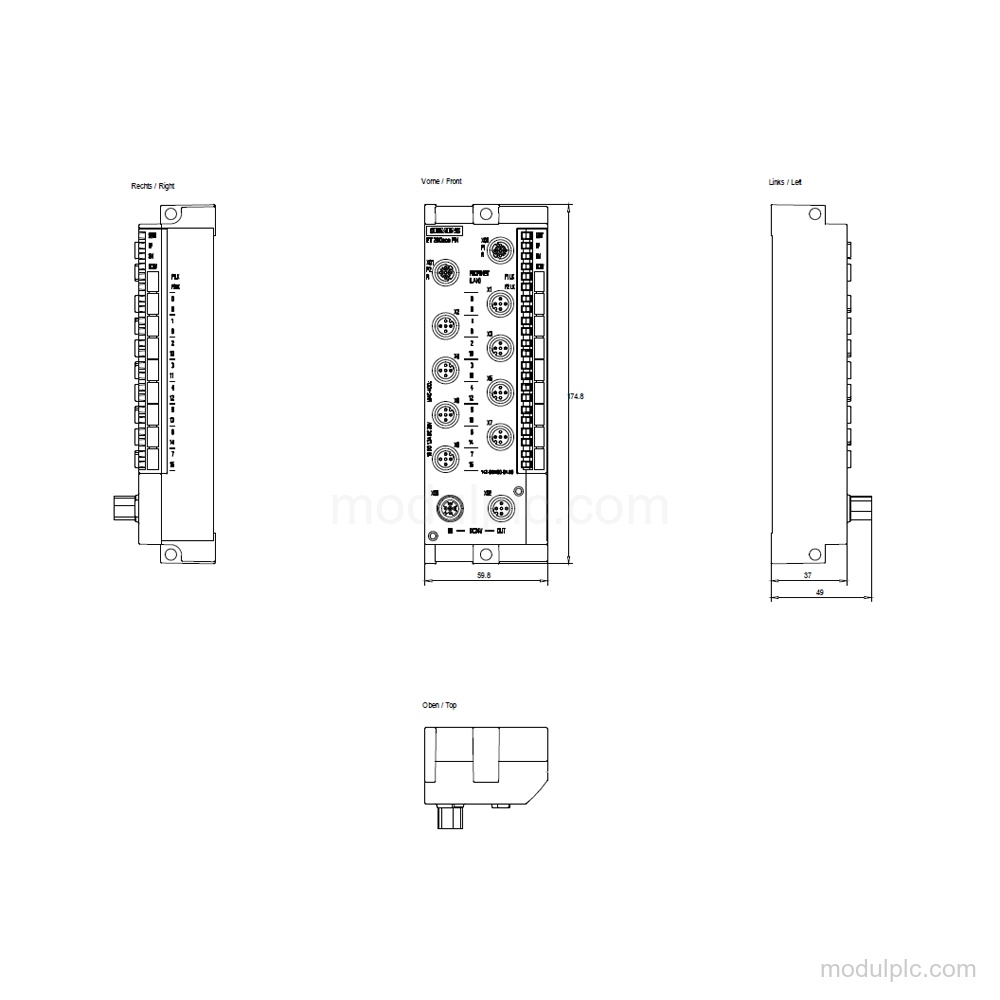

- Connections and protection: 8xM12 connections; IP65/67 degree of protection; reverse-polarity and output short-circuit protection.
- Diagnostics: Diagnostic function, diagnostic alarm, readable diagnostic information, supply-voltage monitoring, wire-break and short-circuit detection, and Group error indication.
Frequently Asked Questions
1. How many digital outputs does 6ES7142-6BH00-0AB0 have?
It has 16 digital outputs in groups of 8.
2. What output current is supported?
For signal "1", the rated output current is 1.3 A maximum. For signal "0", residual current is 1.5 mA maximum.
3. Which PROFINET interface does the module provide?
It provides 1 PROFINET interface with an integrated switch, 100BASE-TX transmission, and a maximum transmission rate of 100 Mbit/s.
4. What connections and protection rating does it have?
It has 8xM12 connections and IP65/67 protection.
