Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital outputs | 8 |
| Output current for signal "1" | 1.3 A; Maximum |
| Rated supply voltage | 24 V DC |
| Rated load voltage 1L+ | 24 V DC |
| Rated load voltage 2L+ | 24 V DC |
| PROFINET interfaces | 1 |
| M12 connections | 8 |
| PROFINET transmission rate, max. | 100 Mbit/s |
| Transmission procedure | 100BASE-TX |
| Protection degree | IP65/67 |
| Product lifecycle | Product cancellation |
Applications
- Digital output control: Controls digital outputs with signal "1" output current up to 1.3 A maximum.
- Redundant load control: Supports redundant control of a load.
Key Features

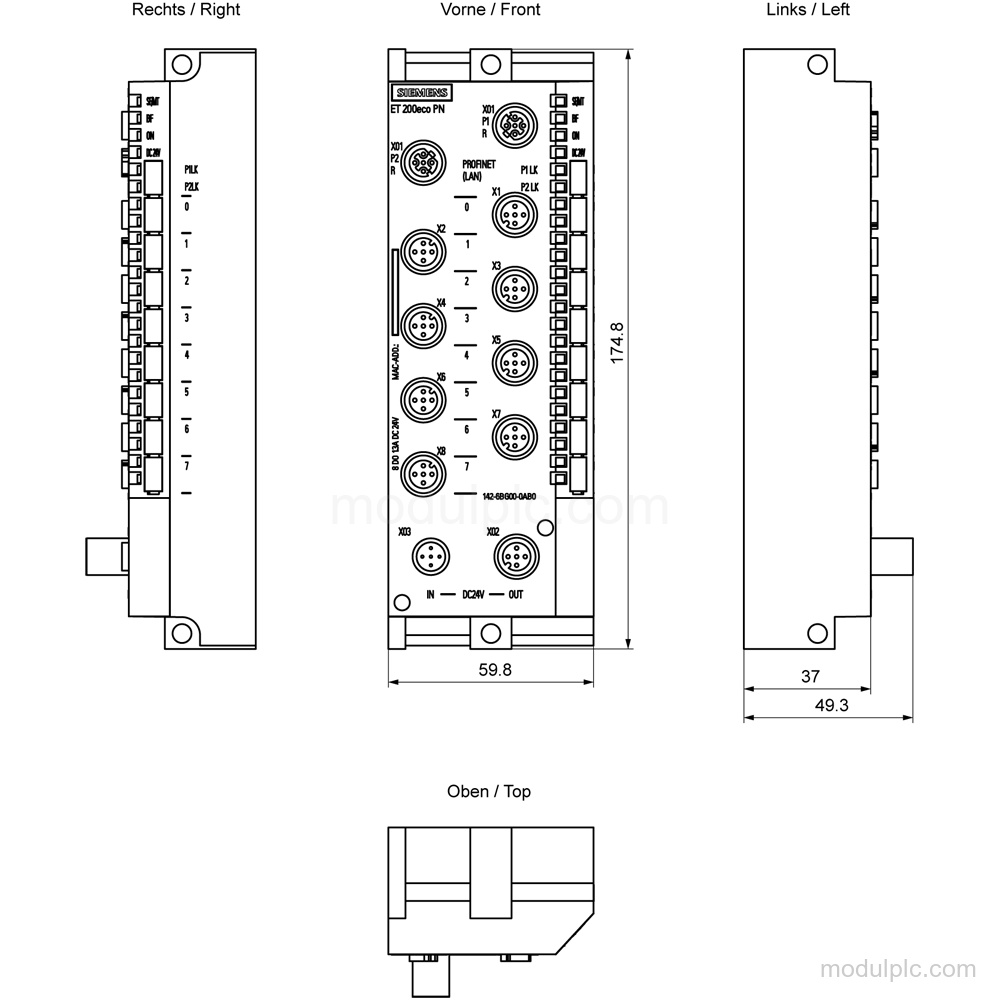

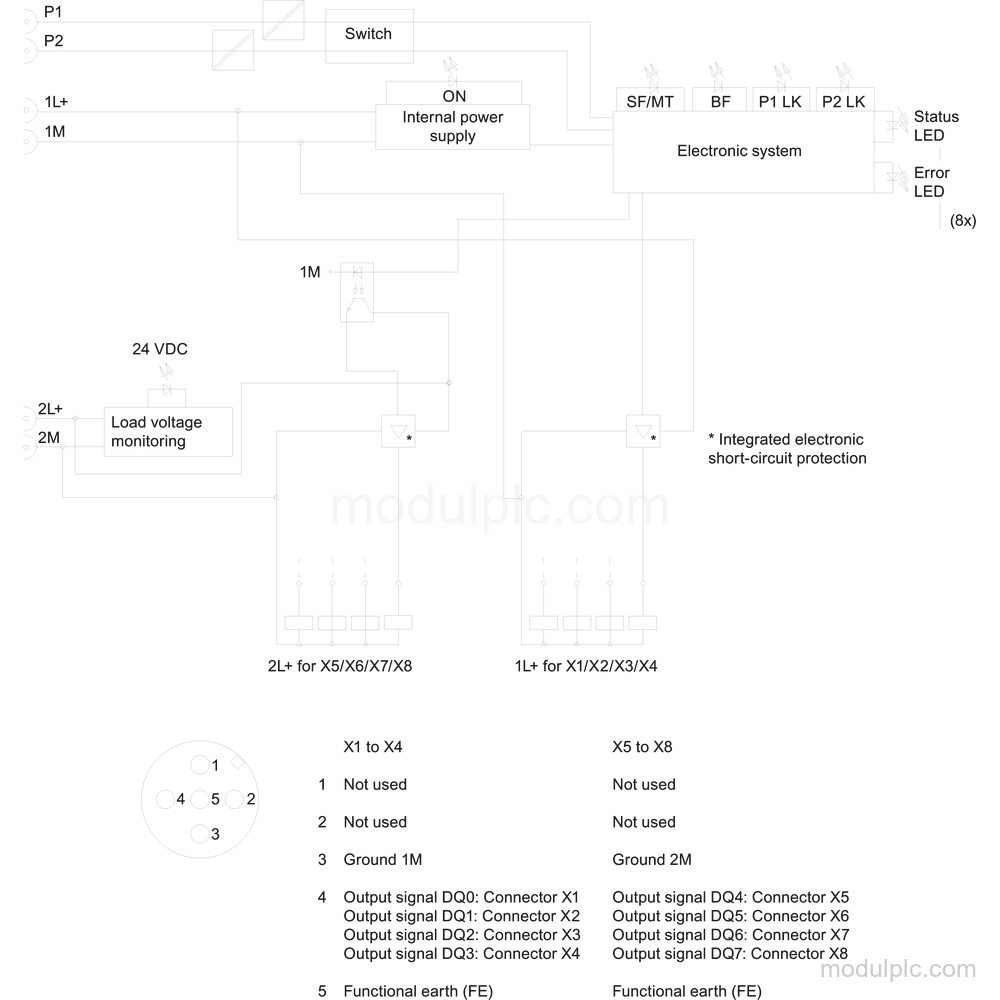

- Digital outputs: 8 digital outputs, arranged in groups of 4, with short-circuit protection.
- Output current: Signal "1" output current: 1.3 A maximum; signal "0" residual current: 1.5 mA maximum.
- PROFINET interface: 1 PROFINET interface with 100BASE-TX transmission, an integrated switch, and transmission rate up to 100 Mbit/s.
- M12 connections: 8 M12 connections with autonegotiation and autocrossing.
- Supply and load voltage: Rated supply voltage: 24 V DC. Rated load voltages 1L+ and 2L+: 24 V DC, each with a permissible range of 20.4 V to 28.8 V.
- Diagnostics and protection: IP67 protection, supply-voltage monitoring, wire-break and short-circuit diagnostics, and group error indication through a red/yellow "SF/MT" LED.
Frequently Asked Questions
1. How many digital outputs does Siemens 6ES7142-6BG00-0AB0 have?
It has 8 digital outputs arranged in groups of 4.
2. What output current does 6ES7142-6BG00-0AB0 support?
The signal "1" output current is 1.3 A maximum. The signal "0" residual current is 1.5 mA maximum.
3. What PROFINET interface is provided?
It has 1 PROFINET interface using 100BASE-TX, with a maximum transmission rate of 100 Mbit/s.
4. What supply and load voltages are required?
The rated supply voltage and rated load voltages 1L+ and 2L+ are 24 V DC. The permissible load-voltage range is 20.4 V to 28.8 V.
5. What should be verified before requesting a quote?
Verify the 8 M12 connections, IP67 protection, diagnostics functions, and the product lifecycle: Product cancellation.
