Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital input channels | 16 |
| Rated supply voltage | 24 V DC |
| Input signal "0" | -3 to +5 V |
| Input signal "1" | +11 to +30 V |
| PROFINET interfaces | 1 |
| M12 circular connectors | 4/5-pin |
| Maximum transmission rate | 100 Mbit/s |
| Protection degree | IP65/67 |
| Product lifecycle | Product cancellation |
Applications
- Digital signal acquisition: Acquires digital signals through 16 digital inputs for 24 V DC signals.
- PROFINET IO communication: Supports communication using the PROFINET IO protocol through the PROFINET interface.
Key Features
- Digital input channels: 16 digital inputs in groups of 2, with an IEC 61131 type 3 input characteristic.
- Input signal ranges: Rated input voltage: 24 V DC; signal "0": -3 to +5 V; signal "1": +11 to +30 V.
- PROFINET interface: 1 PROFINET interface with 100BASE-TX transmission, an integrated switch, and a maximum transmission rate of 100 Mbit/s.
- Connection and protection: 4/5-pin M12 circular connectors; IP65/67 degree of protection.

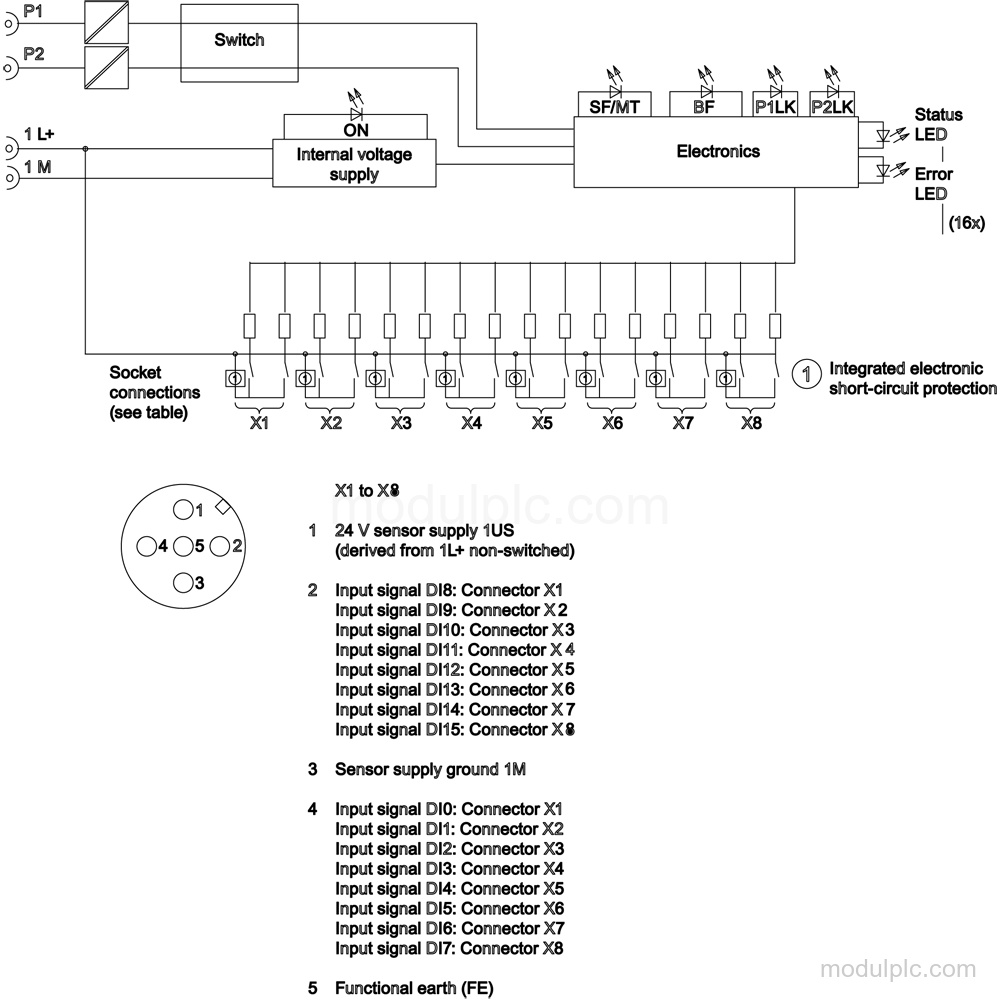

- Diagnostics: Diagnostics function, diagnostic alarm, readable diagnostic information, wire-break detection, and group error indication through a red/yellow "SF/MT" LED.

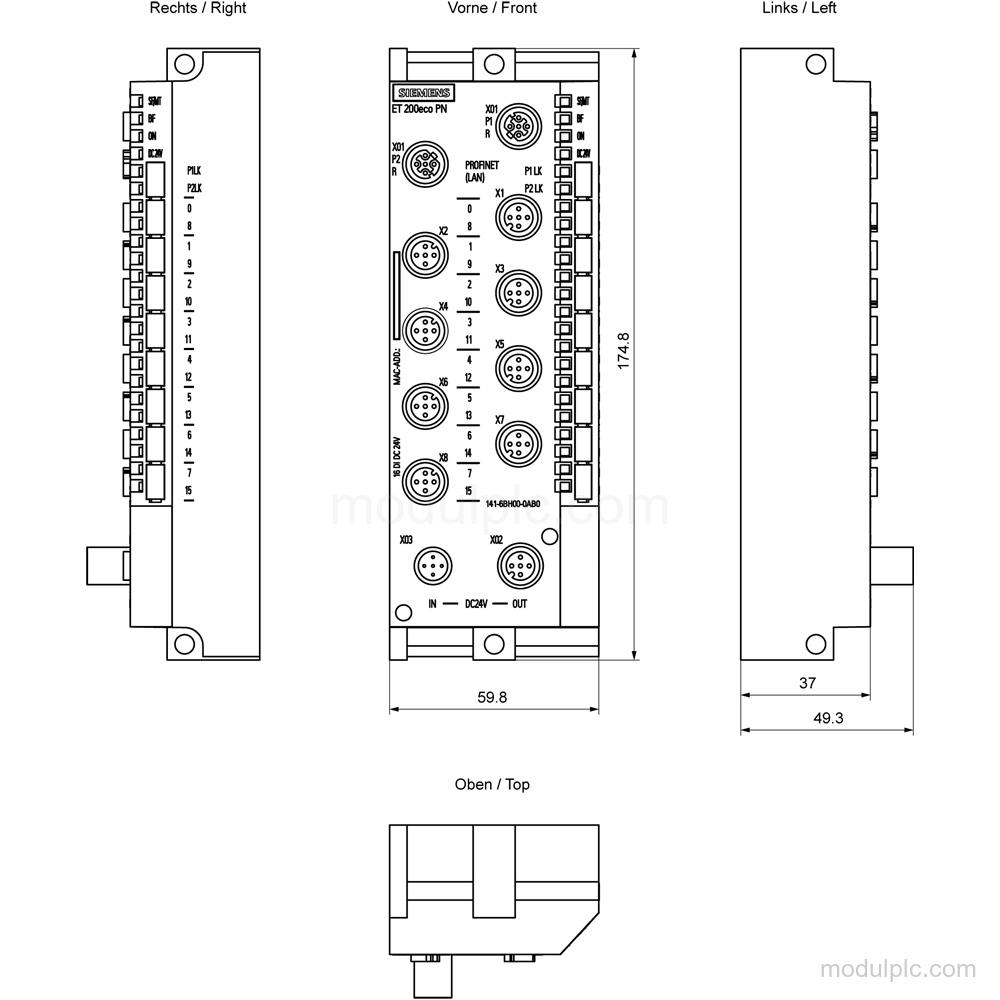

- Supply and mounting data: Rated supply voltage: 24 V DC; reverse polarity protection; power supply according to NEC Class 2 required; dimensions: 60 mm × 175 mm × 49 mm.
Frequently Asked Questions
1. How many digital inputs does 6ES7141-6BH00-0AB0 have?
It has 16 digital inputs in groups of 2.
2. What input signals does this module support?
The rated input voltage is 24 V DC. Signal "0" is -3 to +5 V, and signal "1" is +11 to +30 V.
3. Which PROFINET functions are available?
It has 1 PROFINET interface, supports PROFINET IO, and provides 100BASE-TX transmission at up to 100 Mbit/s.
4. Which connectors and protection rating does the configuration have?
It has 4/5-pin M12 circular connectors and IP65/67 degree of protection.
