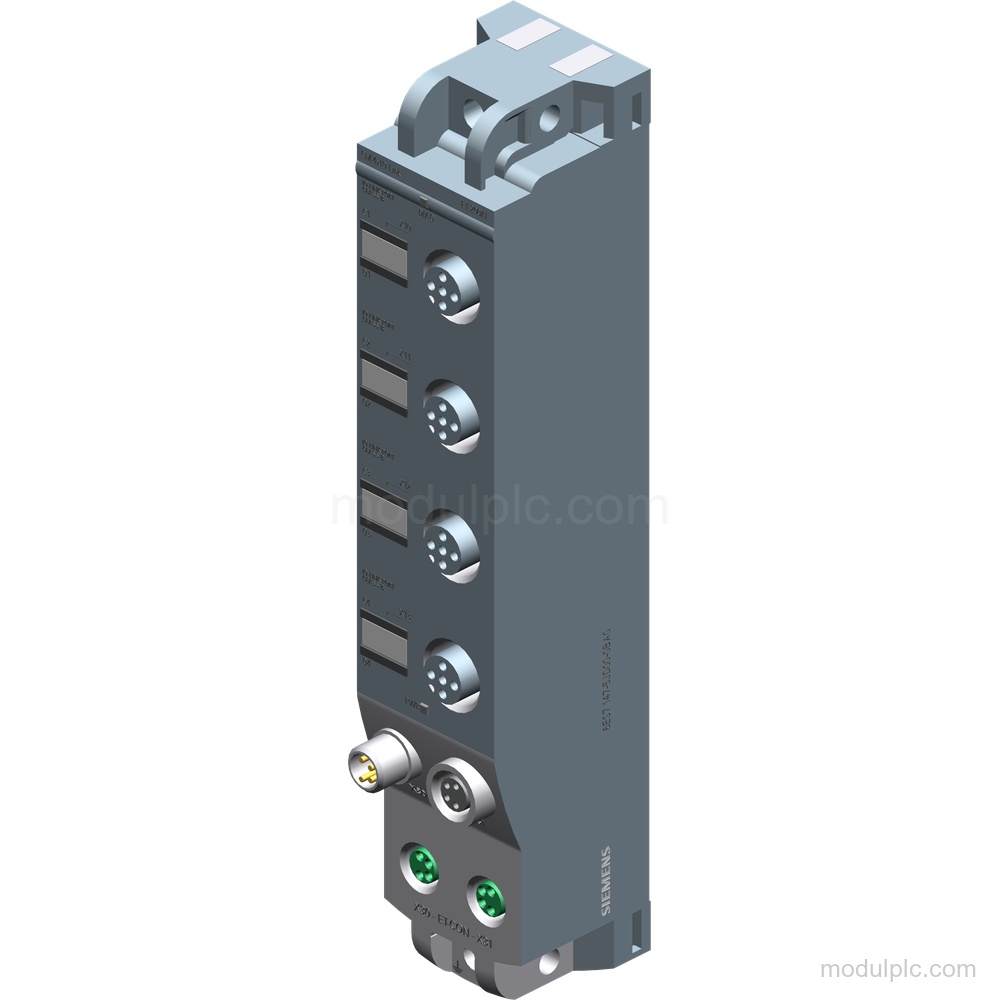

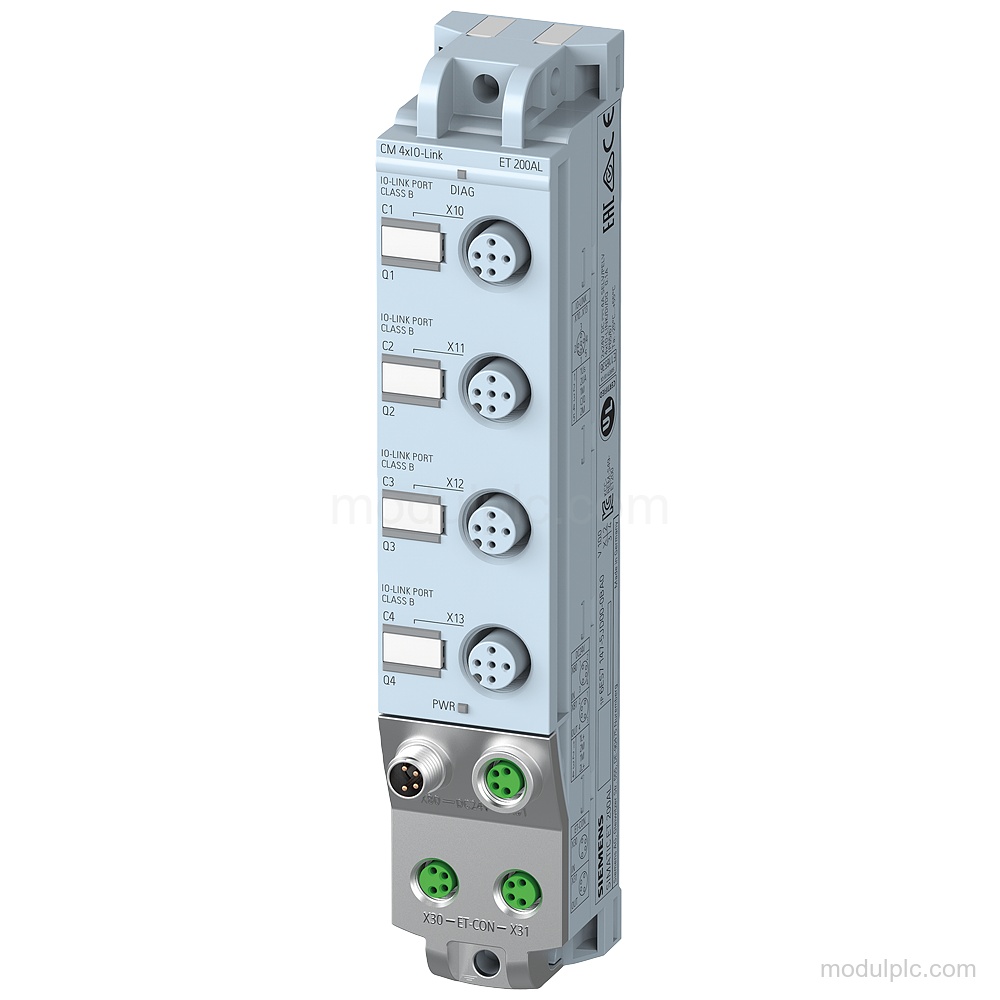

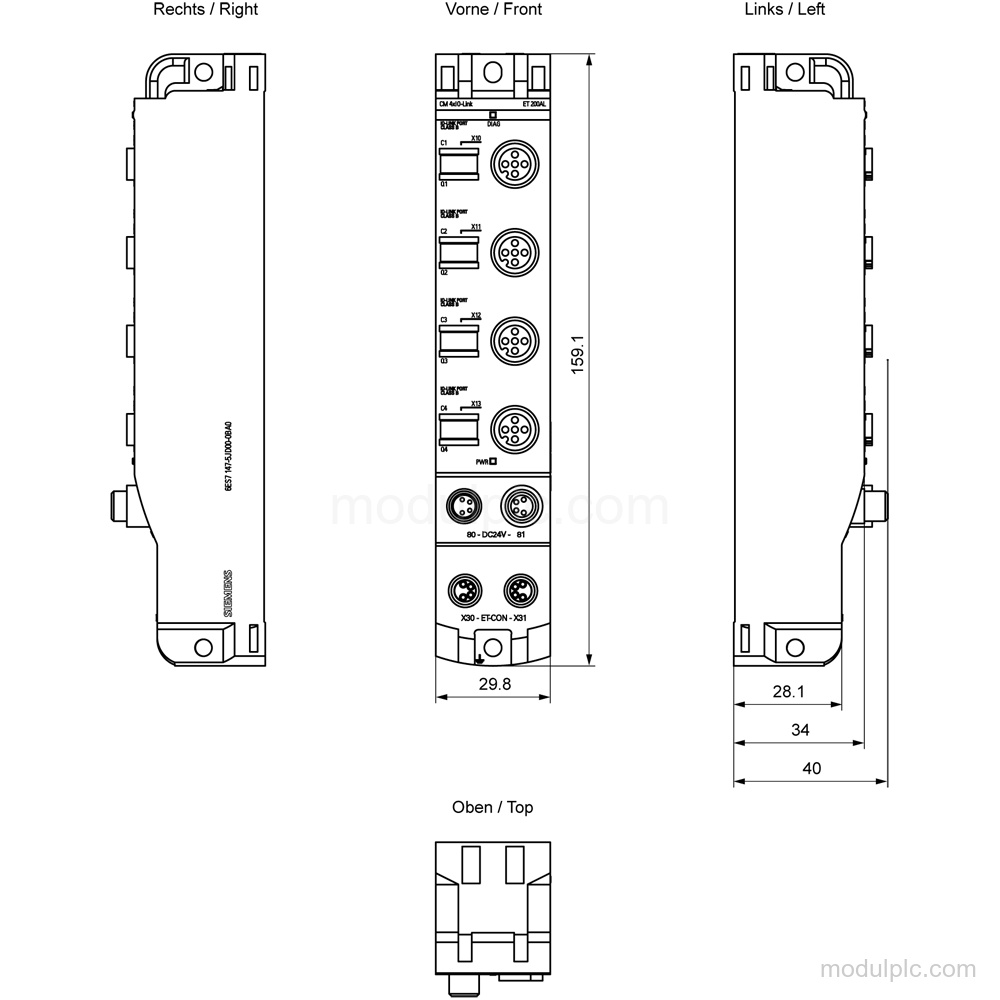

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CM 4x IO-Link |
| IO-Link ports | 4 |
| Simultaneously controllable ports | 4 |
| IO-Link protocols | IO-Link protocol 1.0; IO-Link protocol 1.1 |
| Transmission rates | 4.8 kBaud (COM1); 38.4 kBaud (COM2); 230 kBaud (COM3) |
| Load voltage 1L+ | 24 V DC rated; 20.4 V to 28.8 V permissible range |
| Load voltage 2L+ | 24 V DC rated; 20.4 V to 28.8 V permissible range |
| Process data input | 32 byte per port; 132 byte per module |
| Process data output | 32 byte per port; 128 byte per module |
| Connections | 4x M12 |
| Protection | IP65/67 |
Applications
- Connecting IO-Link devices: Connects IO-Link devices through Port type A via 3-core cable or Port type B with additional device supply of 1.6 A total current of all ports.
Key Features
- IO-Link ports: 4 IO-Link ports are available, with all 4 ports simultaneously controllable.
- Protocols and transmission: Supports IO-Link protocol 1.0 and 1.1 with transmission rates of 4.8 kBaud (COM1), 38.4 kBaud (COM2), and 230 kBaud (COM3).
- Digital modes: Supports IO-Link, DI, and DQ operating modes; DQ output current is max. 100 mA.
- Load voltage: Load voltage 1L+ and 2L+ have a rated value of 24 V DC and a permissible range of 20.4 V to 28.8 V.
- Diagnostics: Provides supply-voltage monitoring, wire-break and short-circuit diagnostics, parameterizable diagnostic alarms, and green or green/red LED indications.
- Connection and protection: Provides 4x M12 connections, supports Port type A via 3-core cable and Port type B with 1.6 A total current of all ports for additional device supply, and has IP65/67 protection.
Frequently Asked Questions
1. How many IO-Link ports does the 6ES7147-5JD00-0BA0 have?
It has 4 IO-Link ports, and all 4 ports are simultaneously controllable.
2. Which IO-Link protocols and transmission rates are supported?
It supports IO-Link protocol 1.0 and 1.1, with 4.8 kBaud (COM1), 38.4 kBaud (COM2), and 230 kBaud (COM3).
3. What load voltage does the module require?
Load voltage 1L+ and 2L+ have a rated value of 24 V DC and a permissible range of 20.4 V to 28.8 V.
4. Which diagnostics are available?
The module provides supply-voltage monitoring, wire-break and short-circuit diagnostics, parameterizable diagnostic alarms, and LED indications.

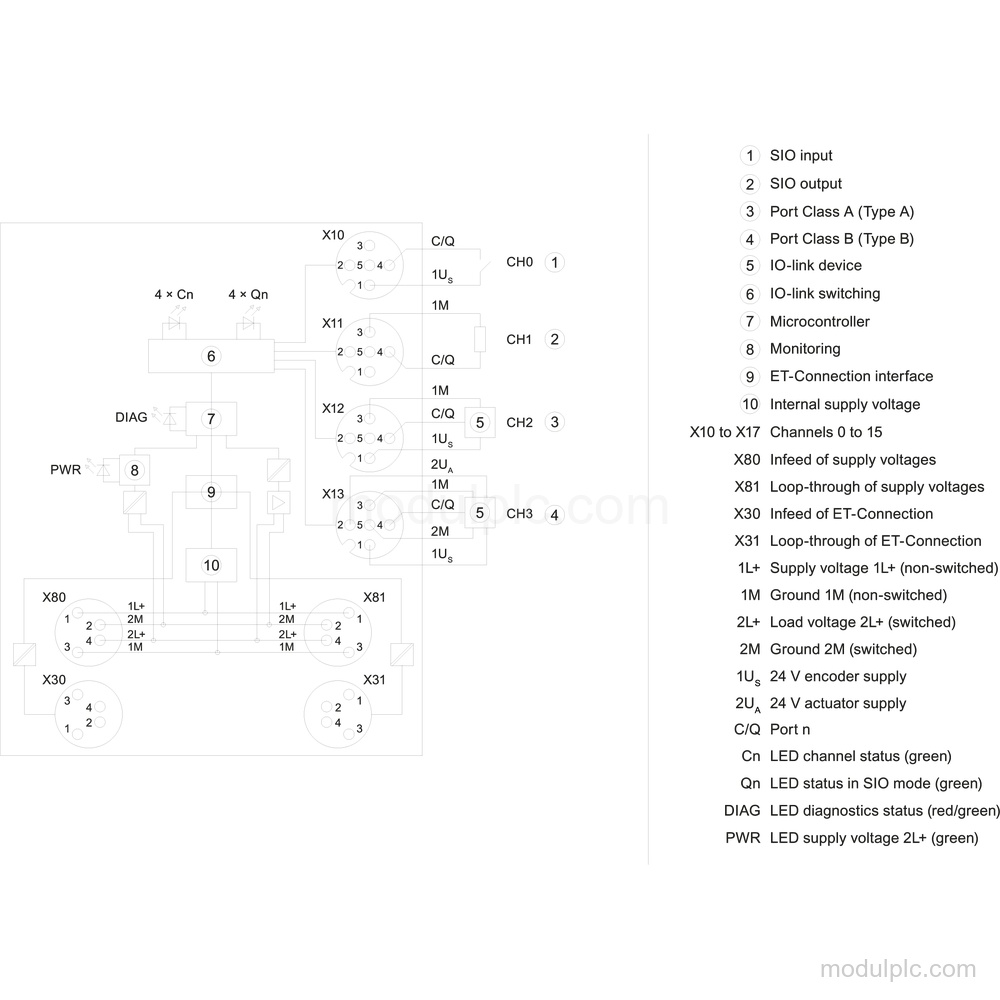

5. How are IO-Link devices connected?
Port type A connects through a 3-core cable. Port type B provides additional device supply with 1.6 A total current of all ports.
