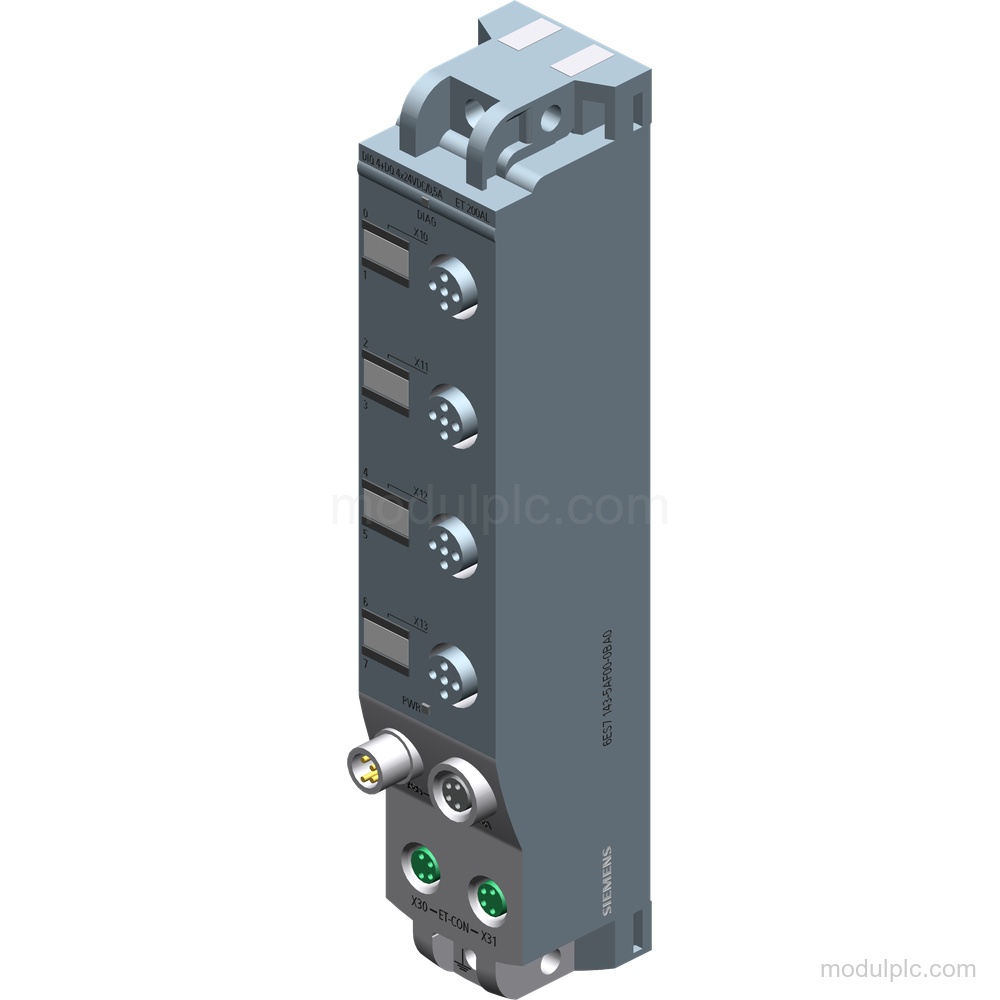

Product Overview
Technical Summary

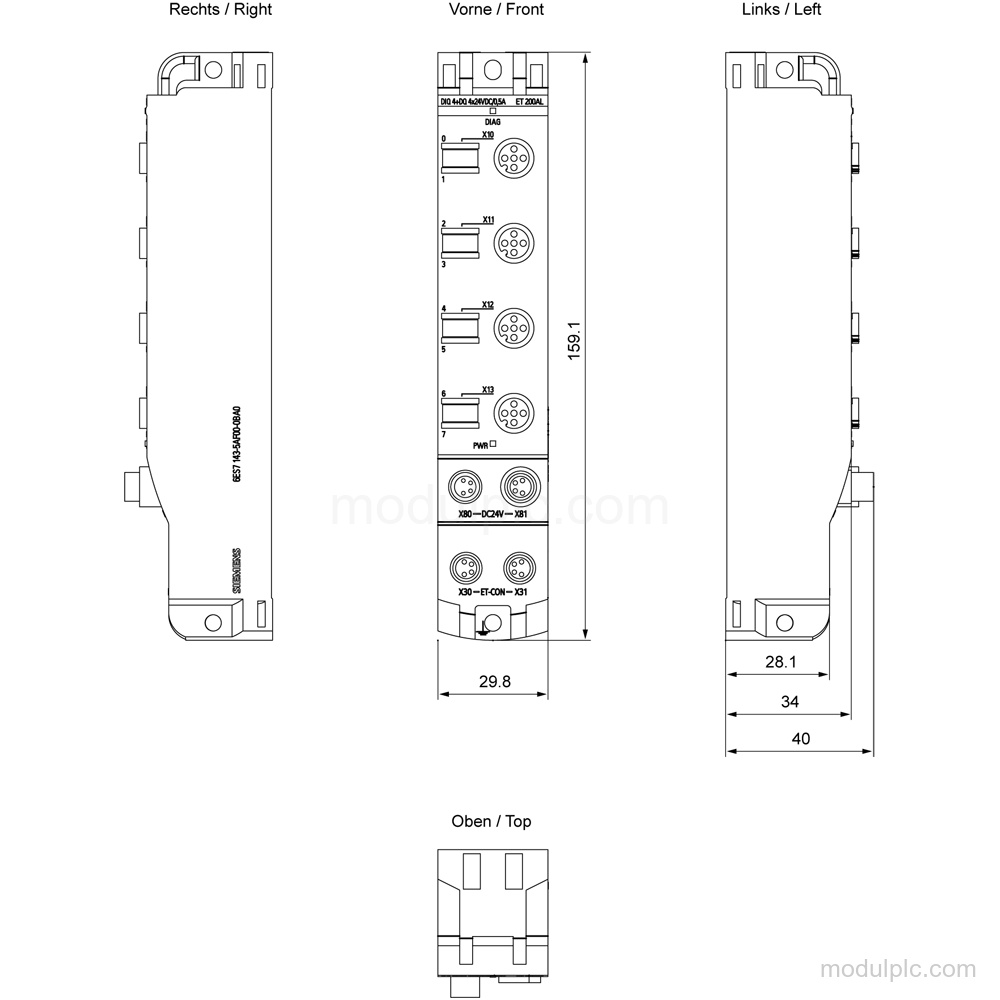

| Parameter | Value |
|---|---|
| Product type | DIQ 4+DQ 4x24VDC/0.5A |
| Digital inputs | 4; parameterizable as DIQ |
| Digital outputs | 8; 4 DQ fixed, 4 DIQ parameterizable |
| Input signal ranges | Signal 0: -3 to +5V; signal 1: +11 to +30V |
| Output current | 0.5 A rated value for signal 1 |
| Output group current | 2 A maximum per group; 2 load groups for 4 outputs each |
| Load voltage | 1L+ and 2L+: 24 V DC rated; permissible range 20.4 V to 28.8 V |
| Connections | 4x M12 |
| Protection | IP65/67 |
| Firmware version | V2.0.x |
Applications

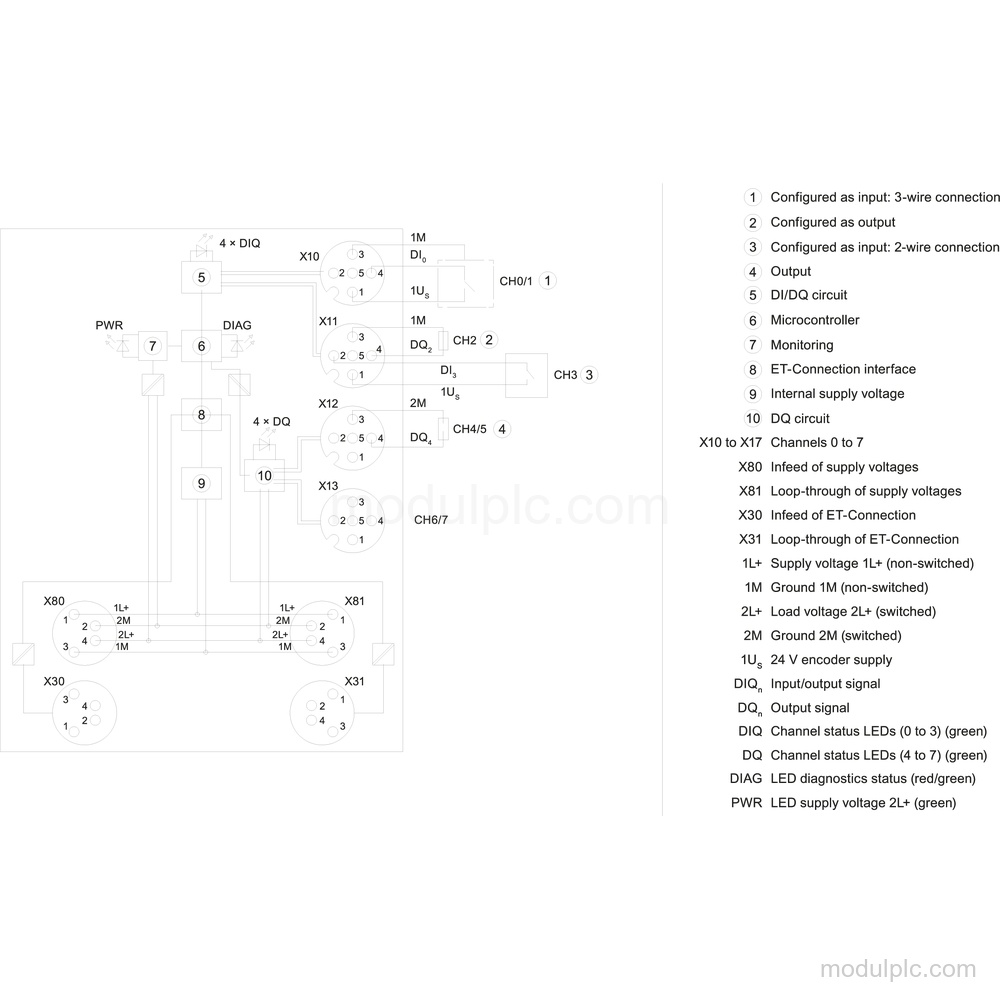

- Digital signal acquisition: The module acquires digital input signals with parameterizable DIQ channels and IEC 61131 type 3 input characteristics.
- Digital output control: The module controls current-sourcing digital outputs, with 4 fixed DQ and 4 parameterizable DIQ channels.
- Short-circuit diagnostics: The module provides short-circuit diagnostics for outputs to M and encoder supply to M, with parameterizable diagnostic alarms.
Key Features
- Digital I/O channels: 4 digital inputs are parameterizable as DIQ; 8 digital outputs include 4 fixed DQ and 4 parameterizable DIQ channels.
- 24 V DC signals: Input rated voltage is 24 V DC; signal 0 is -3 to +5V and signal 1 is +11 to +30V.
- Output capability: Outputs are current-sourcing with a rated signal-1 output current of 0.5 A and a maximum current of 2 A per group.
- M12 connections and protection: The module has 4x M12 connections and IP65/67 protection.
- Diagnostics and status: Electronic short-circuit protection is provided per output channel; channel status and diagnostics use green or green/red LEDs.
- Electrical isolation: Load voltages are isolated from each other; DIQ channels are isolated from DQ channels in groups of 4, and isolation is tested with 707 V DC.
Frequently Asked Questions
1. How many digital inputs and outputs does 6ES7143-5AF00-0BA0 have?
It has 4 digital inputs, parameterizable as DIQ, and 8 digital outputs: 4 fixed DQ and 4 parameterizable DIQ.
2. What input signal ranges does this module support?
For signal 0, the input voltage is -3 to +5V. For signal 1, it is +11 to +30V, with a rated input voltage of 24 V DC.
3. What output current is available?
The rated output current for signal 1 is 0.5 A. The maximum current is 2 A per group, with 2 load groups for 4 outputs each.
4. How is 6ES7143-5AF00-0BA0 connected and protected?
It has 4x M12 connections and IP65/67 protection.
5. What diagnostics are provided?
Electronic short-circuit protection is provided per output channel. The module also provides parameterizable diagnostic alarms, channel status LEDs, and module diagnostic LEDs.
