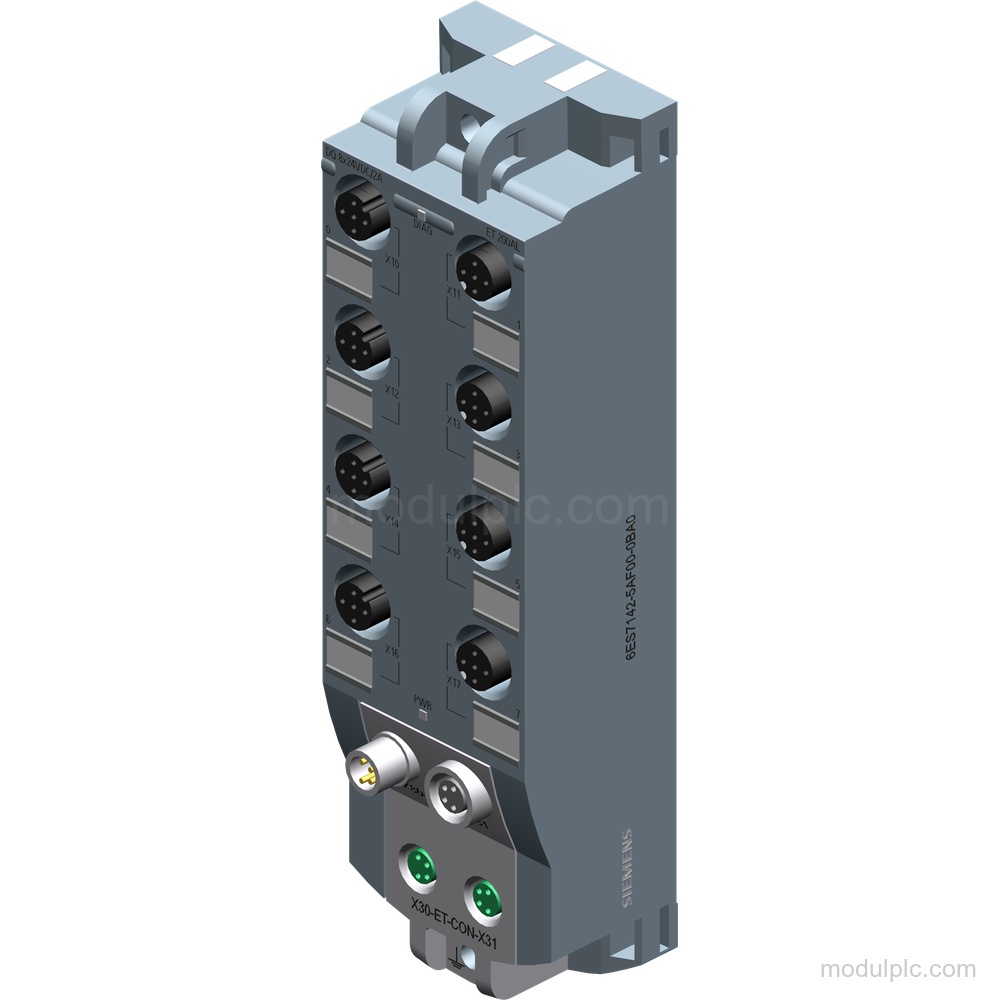

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital outputs | 8 |
| Rated load voltage 1L+ | 24 V DC |
| Rated output current | 2 A |
| Connections | 8x M12 |
| Degree of protection | IP65/67 |
| Load groups | 2 groups of 4 outputs |
| Short-circuit protection | Yes; per channel, electronic |
| Diagnostic alarm | Yes; parameterizable |
| Switching frequency with resistive load | 100 Hz maximum |
| Firmware version | V2.0.x |
Applications
- Digital output switching: The module switches digital outputs with current-sourcing output type and electronic short-circuit protection per channel.
Key Features

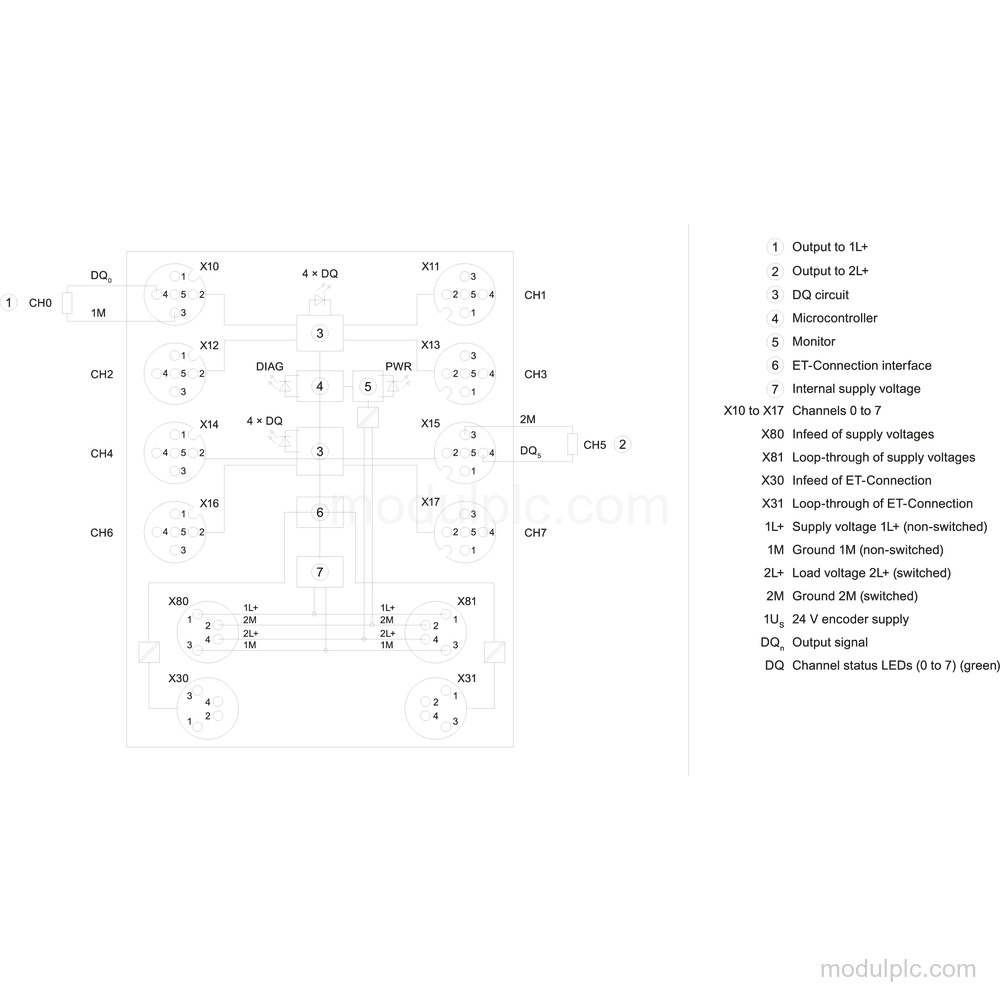

- Digital outputs: 8 current-sourcing digital outputs, arranged in 2 load groups of 4 outputs each.
- Output rating: 24 V DC rated load voltage and 2 A rated output current per signal "1".
- Output protection: Electronic short-circuit protection is provided per channel.

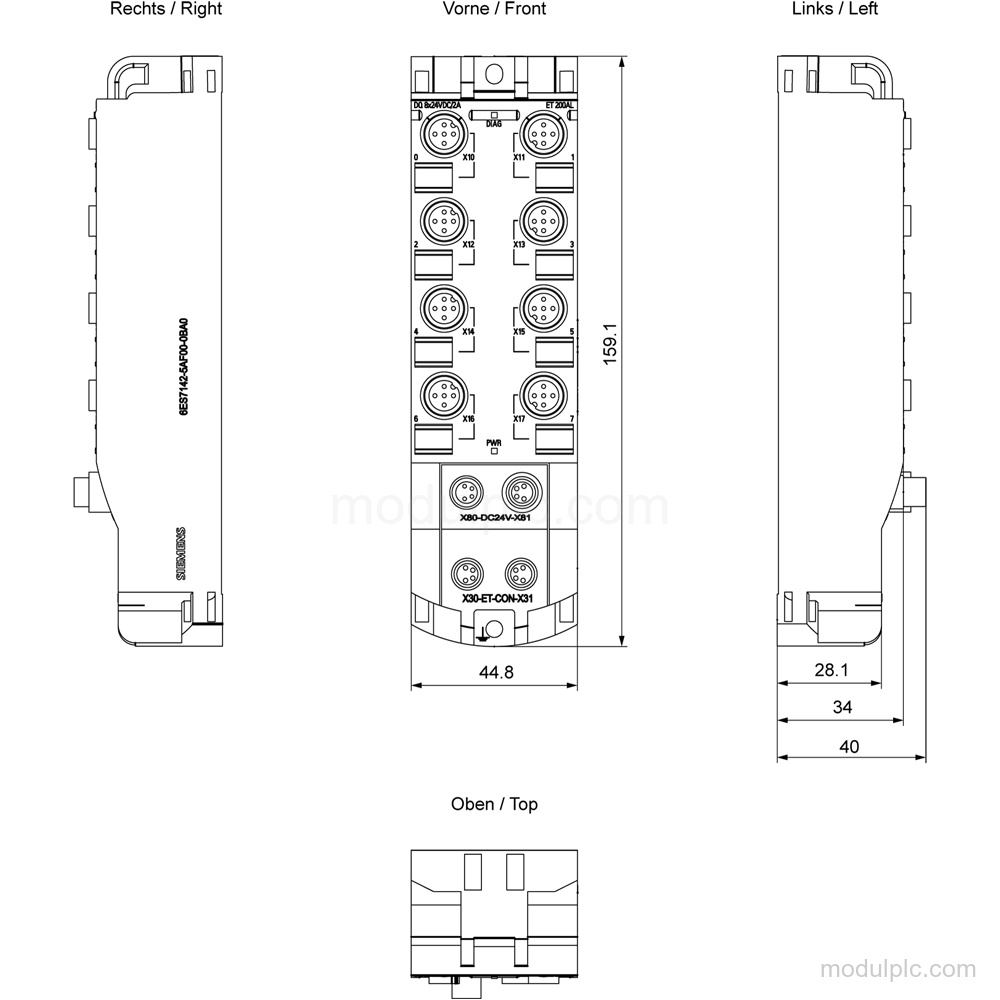

- Connections and protection: 8x M12 connections and IP65/67 degree of protection.
- Diagnostics: Parameterizable diagnostic alarms, channel-by-channel substitute values, and green channel-status LEDs are provided.
- Load switching limits: Switching frequency is maximum 100 Hz with resistive load, 0.1 Hz with inductive load, and 1 Hz with lamp load.
Frequently Asked Questions
1. How many digital outputs does the 6ES7142-5AF00-0BA0 have?
It has 8 current-sourcing digital outputs in 2 load groups of 4 outputs each.
2. What output voltage and current does this module support?
The rated load voltage is 24 V DC, and the rated output current for signal "1" is 2 A.
3. What connections and protection does it provide?
It has 8x M12 connections and IP65/67 degree of protection.
4. Does it provide output diagnostics?
Yes. It has parameterizable diagnostic alarms, channel-by-channel substitute values, electronic short-circuit diagnostics, and LED status indications.
