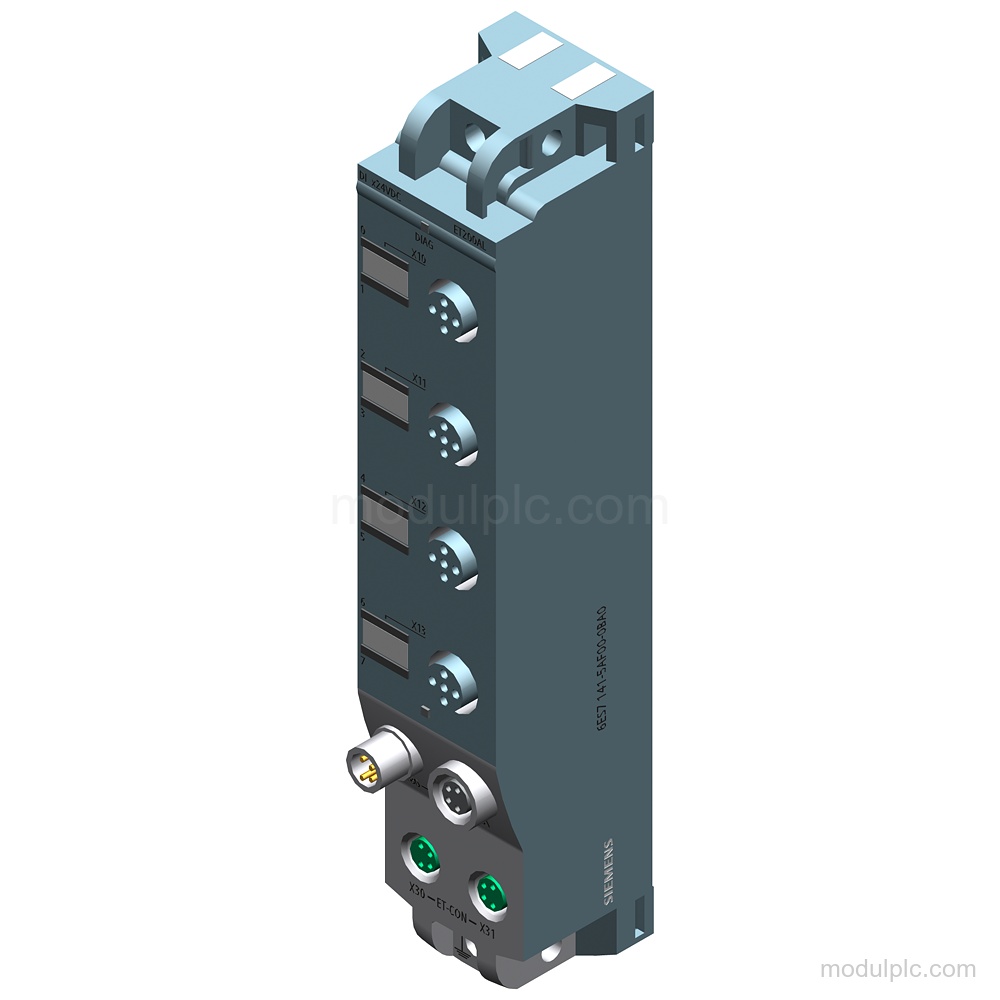

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital inputs | 8 |
| Input voltage, rated | 24 V DC |
| Signal "0" | -30 to +5 V |
| Signal "1" | +11 to +30 V |
| M12 connectors | 4 |
| Encoder supply outputs | 4 |
| Encoder supply current, max. | 0.7 A total current of all encoders |
| Load voltage 1L+, permissible range | 20.4 V to 28.8 V DC |
| Degree of protection | IP65/67 |
| Firmware version | V2.0.x |
| Product type designation | DI 8x24VDC |
Applications
- Digital signal acquisition: Acquires 24 V DC digital signals through 8 digital input channels.
- Encoder supply: Supplies connected encoders through 4 encoder supply outputs with short-circuit protection per module.
Key Features

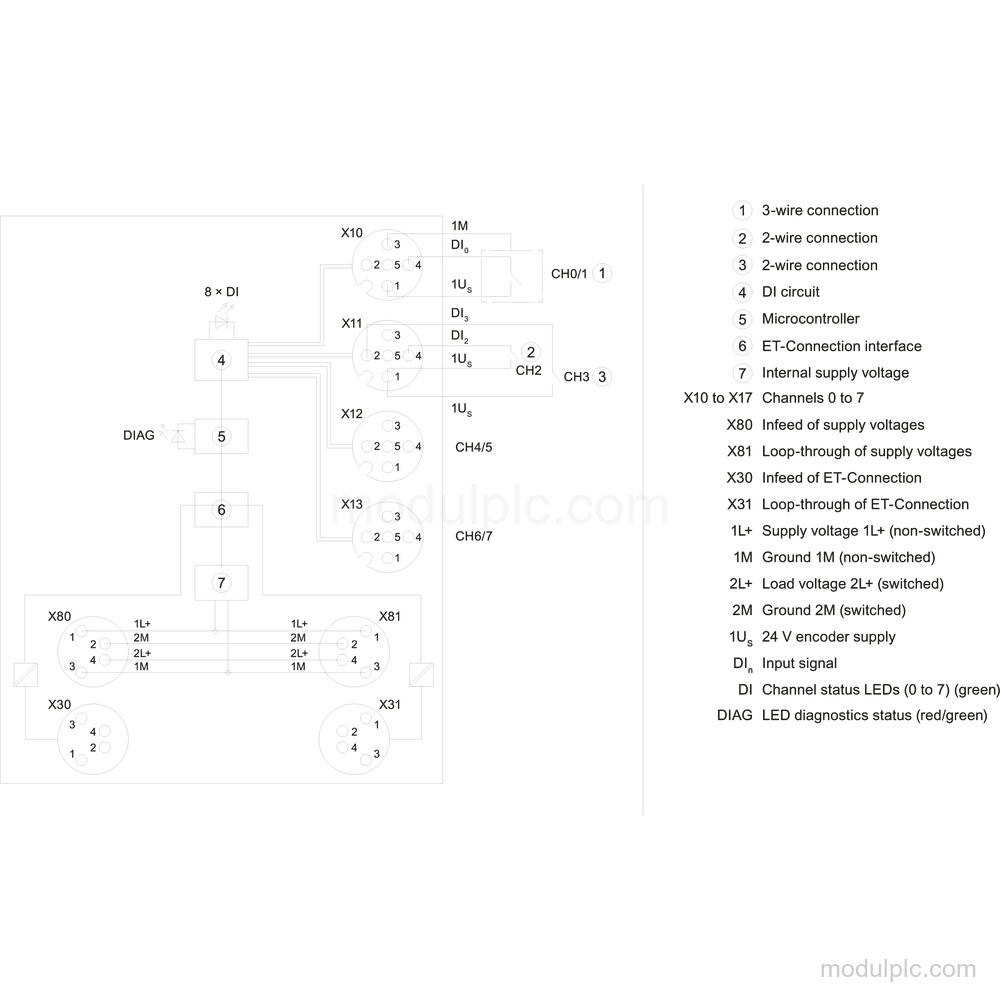

- Digital input channels: 8 digital inputs with P-reading input and an IEC 61131 Type 3 input characteristic curve.
- 24 V DC signal inputs: Rated input voltage is 24 V DC; signal "0" is -30 to +5 V and signal "1" is +11 to +30 V.
- M12 connections and encoder supply: The module has 4 M12 connectors and 4 encoder supply outputs with 0.7 A maximum total current for all encoders.
- Diagnostics: It has parameterizable diagnostic alarms, short-circuit diagnostics from sensor supply to M, and green channel-status LEDs.
- Supply and protection: Load voltage 1L+ is rated at 24 V DC with a permissible range of 20.4 V to 28.8 V; degree of protection is IP65/67.

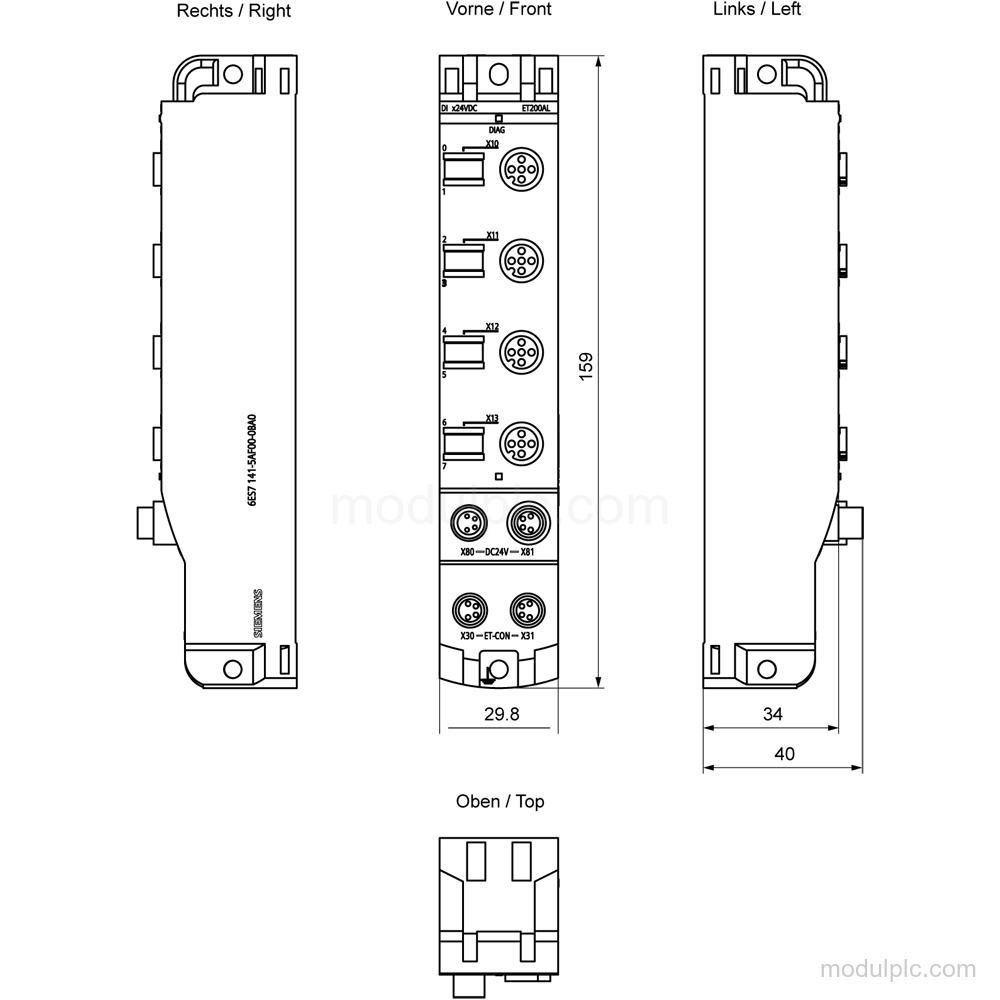

- Installation and isolation: Cable length is up to 30 m for unshielded cables; channels are isolated from the backplane bus, while channels are not isolated from each other.
Frequently Asked Questions
1. How many digital inputs does the Siemens 6ES7141-5AF00-0BA0 have?
It has 8 digital inputs.
2. What signal ranges does the module support?
The rated input voltage is 24 V DC. Signal "0" is -30 to +5 V, and signal "1" is +11 to +30 V.
3. How many M12 connectors and encoder supply outputs are provided?
It has 4 M12 connectors and 4 encoder supply outputs.
4. What diagnostics are available?
The module has parameterizable diagnostic alarms, short-circuit diagnostics from sensor supply to M, a green channel-status LED, and a green/red module-diagnostics LED.
5. What should be verified before requesting a quote?
Verify the 24 V DC signal ranges, 4 M12 connectors, IP65/67 protection, and the required mounting and connection configuration.
