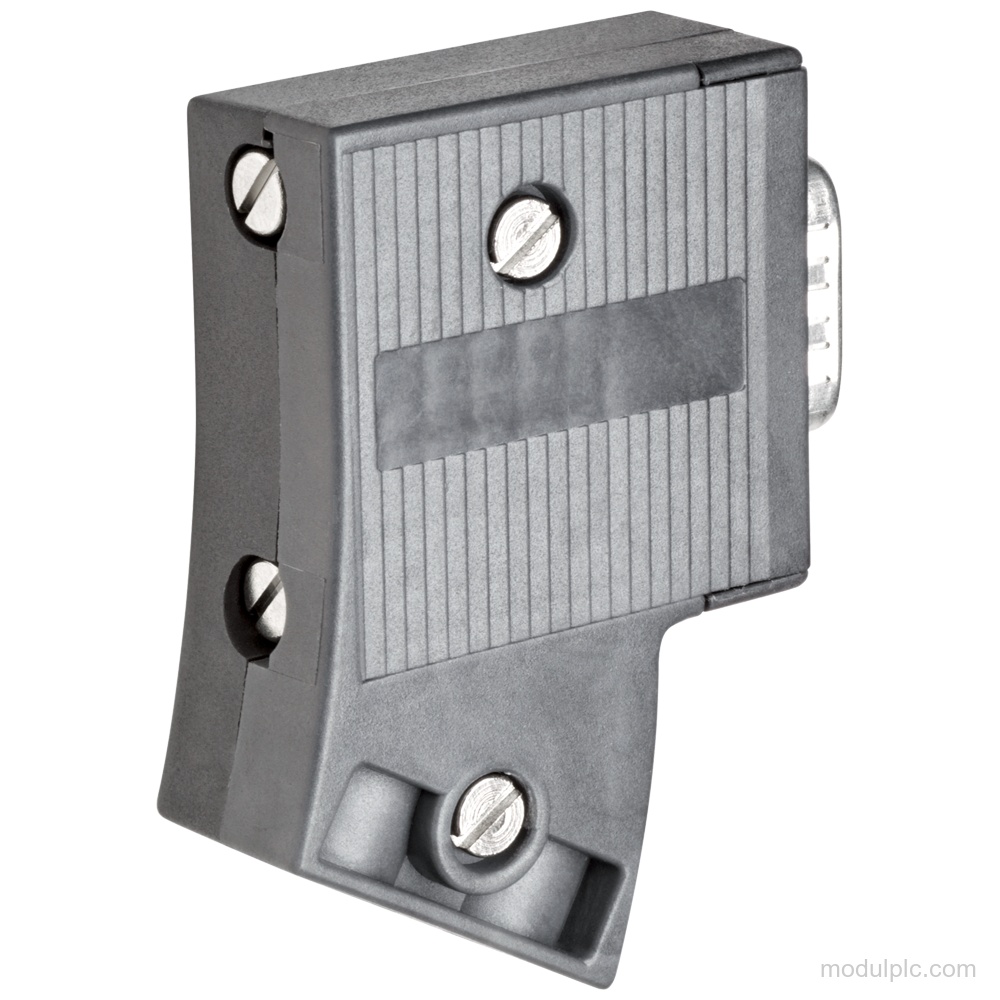

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | PROFIBUS connector |
| Interface | RS 485 |
| Transmission rate | 9.6 kbit/s to 1.5 Mbit/s |
| PROFIBUS cable connections | 2 |
| Network component or terminal equipment connection | 1 |
| Cable connection | Integrated insulation displacement terminals for 2-core PB FC installation cables |
| Device connection | 9-pin Sub-D connector |
| Cable outlet | 30° |
| Protection class | IP20 |
| Terminating resistor | No integrated terminating resistor |
Applications
- PROFIBUS station connection: Connects PROFIBUS stations to the PROFIBUS bus cable.
Key Features
- PROFIBUS bus connection: Connects PROFIBUS stations to the PROFIBUS bus cable.
- Transmission rate: Supports 9.6 kbit/s to 1.5 Mbit/s with PROFIBUS DP.

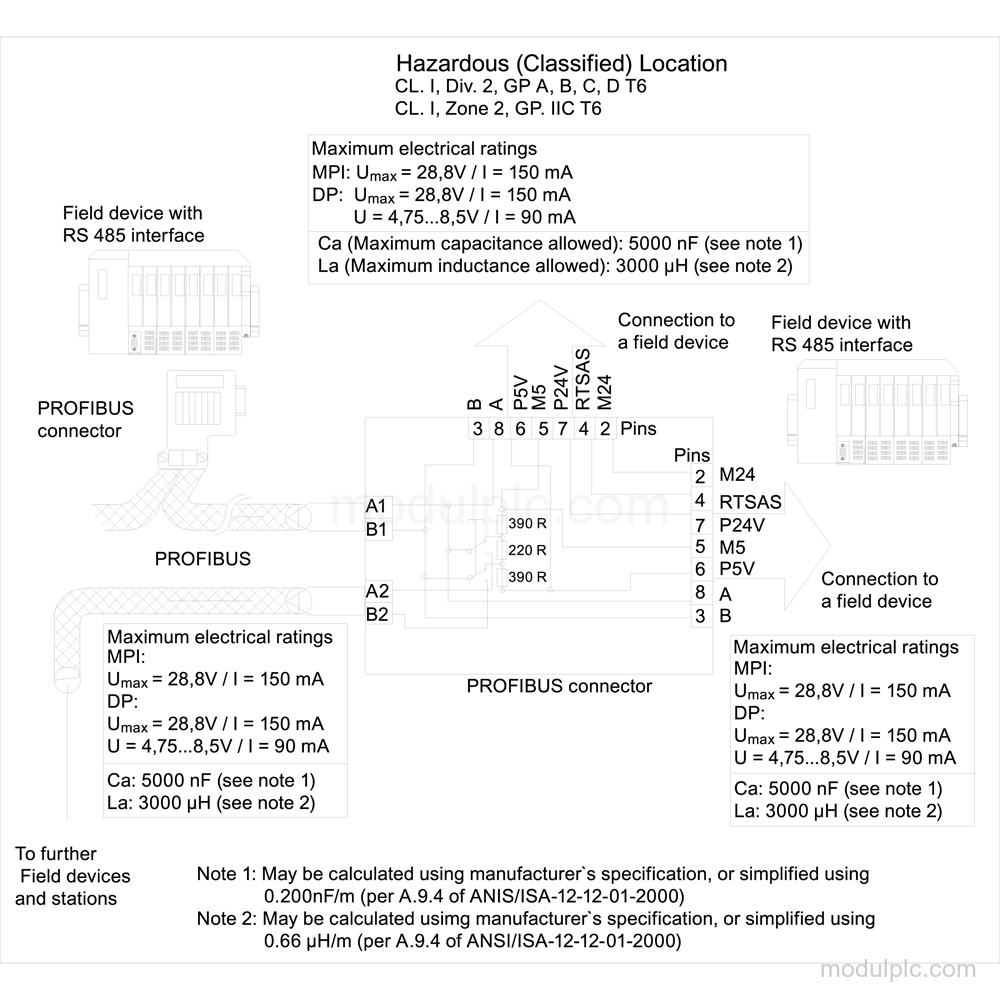

- Electrical connections: Has 2 integrated insulation displacement terminals for 2-core PB FC installation cables and 1 9-pin Sub-D connector for network components or terminal equipment.
- Fast Connect and cable outlet: FastConnect connection with a 30° cable outlet and screwed joint locking mechanism.

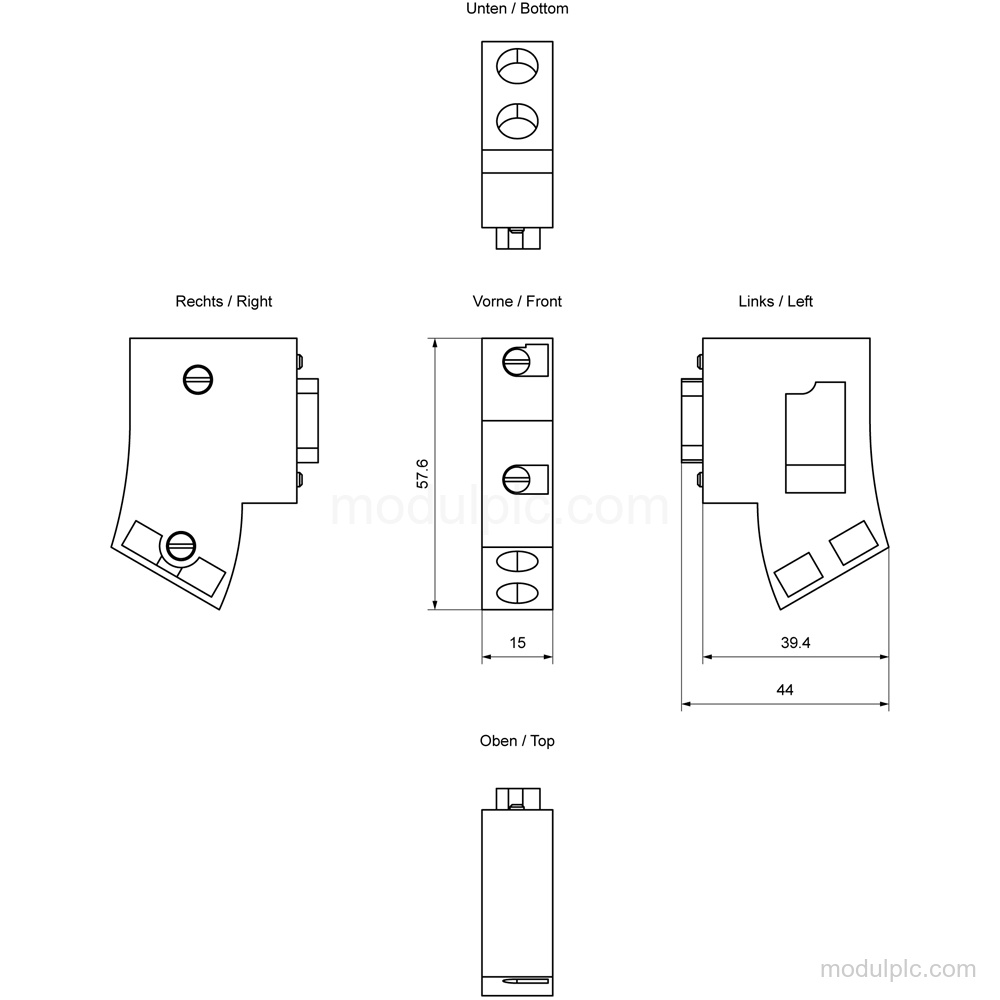

- Mechanical and protection data: Measures 15 mm wide, 57.6 mm high, and 39.5 mm deep; protection class IP20 and net weight 30 g.
- Configuration exclusions: Without an integrated terminating resistor, programming port, and PG connection socket.
Frequently Asked Questions
1. What is the function of Siemens 6ES7972-0BA30-0XA0?
It connects PROFIBUS stations to the PROFIBUS bus cable.
2. What transmission rate does this PROFIBUS connector support?
It supports 9.6 kbit/s to 1.5 Mbit/s with PROFIBUS DP.
3. Which connections are provided?
It has 2 integrated insulation displacement terminals for 2-core PB FC installation cables and 1 9-pin Sub-D connector for network components or terminal equipment.
4. What is excluded from this configuration?
It is without an integrated terminating resistor, programming port, and PG connection socket.
