Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Memory type | Flash-EPROM |
| Memory size | 2 Gbyte |
| Write/delete operations, min. | 60 000 |
| Data retention, min. | 10 a; If the delete/write processes < 6 000 (1 a if the delete/write processes > 54 000) |
| Product lifecycle | Product cancellation |
Key Features
- Flash-EPROM memory: Type of memory: Flash-EPROM.
- 2 Gbyte memory capacity: Memory size: 2 Gbyte.
- Write/delete endurance: Number of write/delete operations, min.: 60 000.
- Data retention: Data retention after the final programming action, min.: 10 a; If the delete/write processes < 6 000 (1 a if the delete/write processes > 54 000).

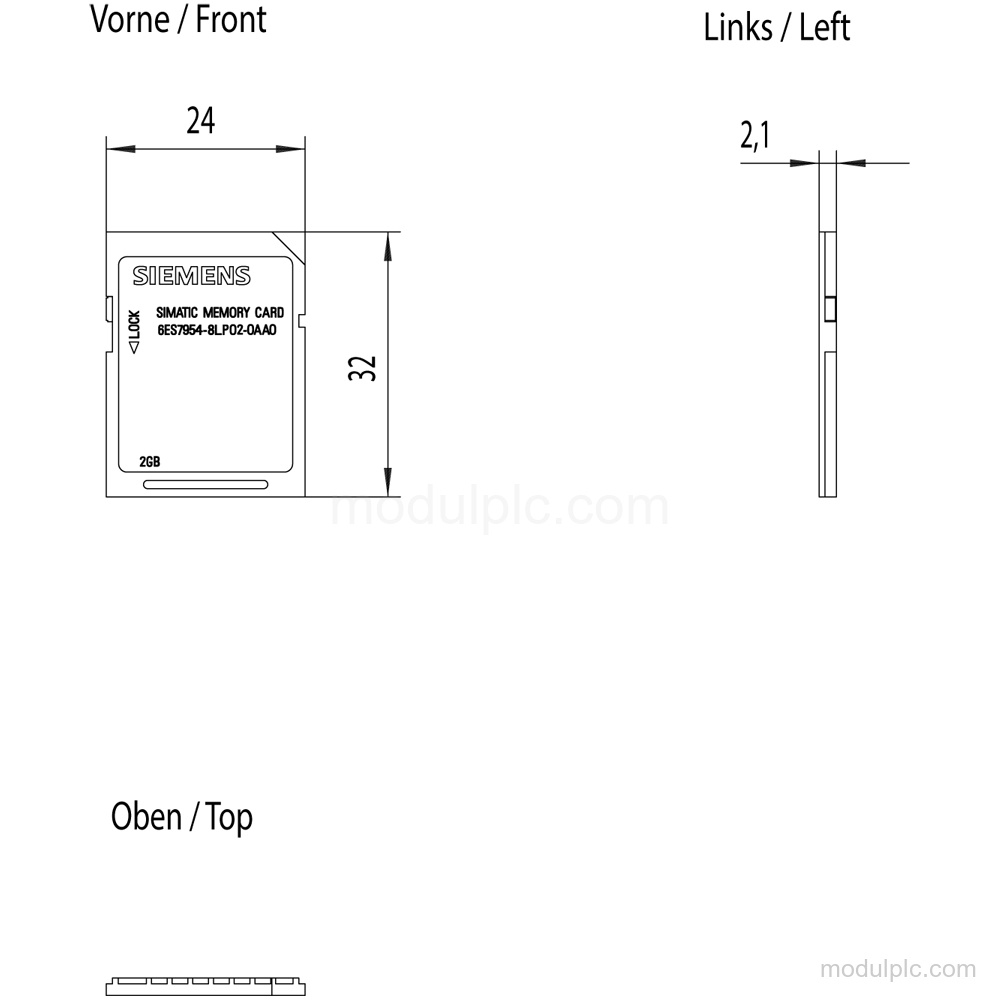

- Compact dimensions and weight: Dimensions: 24 mm width, 32 mm height, and 2.1 mm depth. Weight, approx.: 3 g.
- Product lifecycle: Product cancellation.
Frequently Asked Questions
1. What memory type and capacity does Siemens 6ES7954-8LP02-0AA0 have?
It has Flash-EPROM memory with a 2 Gbyte capacity.
2. How many write/delete operations does the memory card support?
The minimum number of write/delete operations is 60 000.
3. What are the dimensions and weight of this memory card?
Its dimensions are 24 mm width, 32 mm height, and 2.1 mm depth; weight is approximately 3 g.
4. What is the data retention after the final programming action?
Minimum data retention is 10 a; if the delete/write processes are < 6 000, it is 1 a if the delete/write processes are > 54 000.
