Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Memory type | Flash-EPROM |
| Memory size | 12 Mbyte |
| Write/delete operations, min. | 500 000 |
| Data retention, min. | 10 a after the final programming action; 1 a if the delete/write processes exceed 450 000 |
Applications

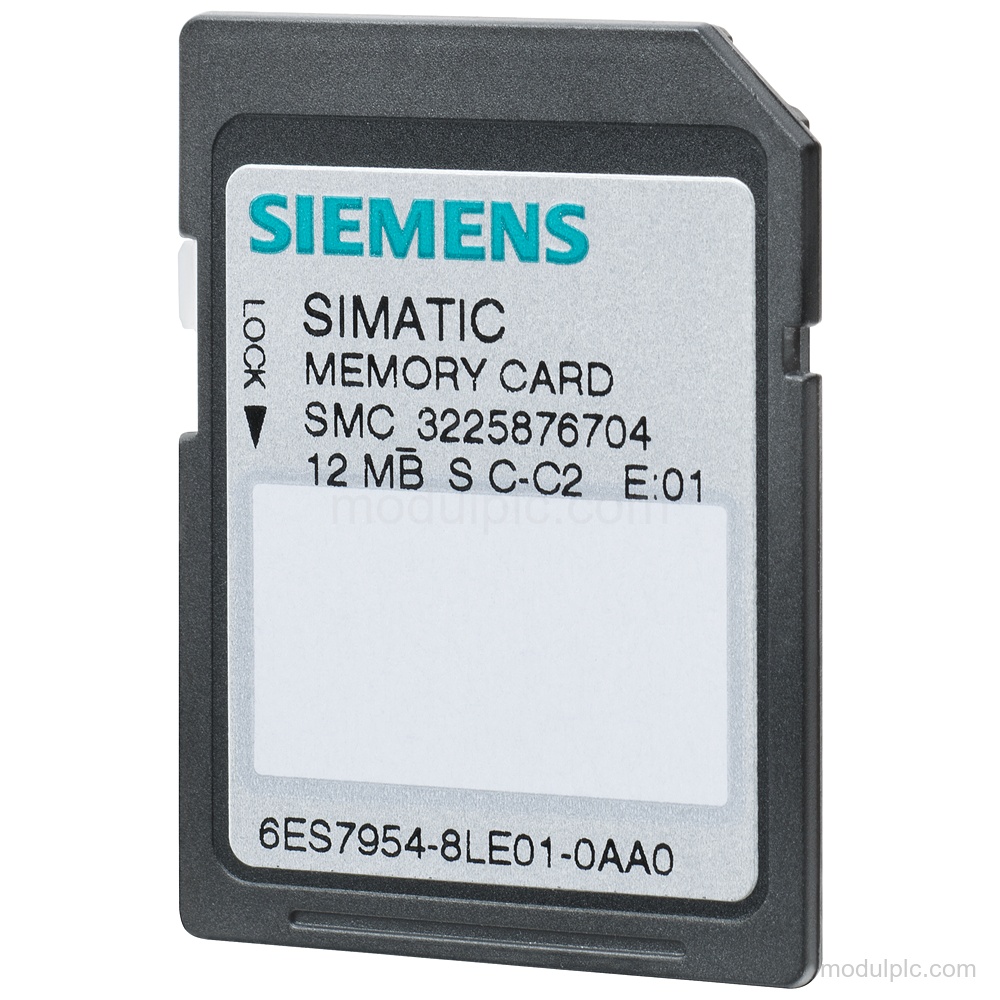

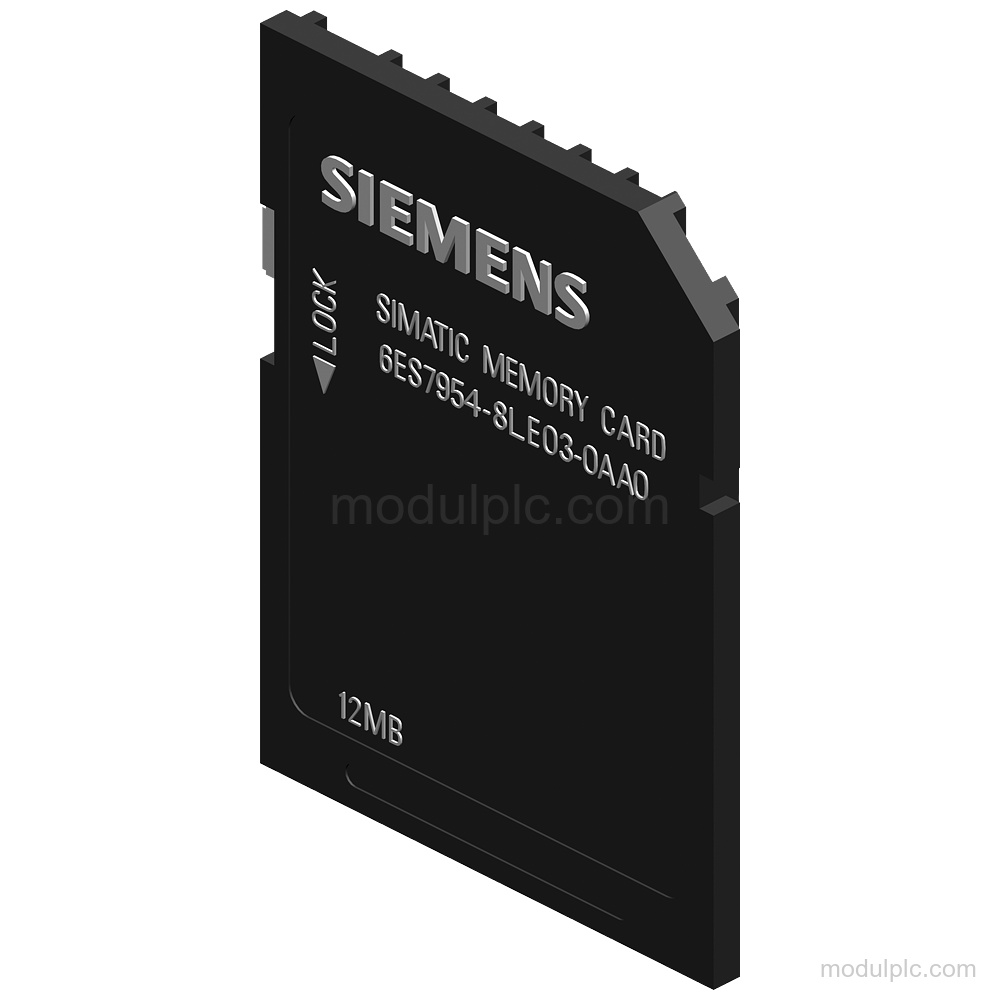

- SIMATIC S7-1×00 CPU/SINAMICS memory storage: Provides Flash-EPROM memory card storage for SIMATIC S7-1×00 CPU/SINAMICS applications.
Key Features
- Memory type and capacity: Flash-EPROM memory with 12 Mbyte capacity.
- Write/delete endurance: Minimum 500 000 write/delete operations.
- Data retention: Minimum 10 a after the final programming action; 1 a if the delete/write processes exceed 450 000.

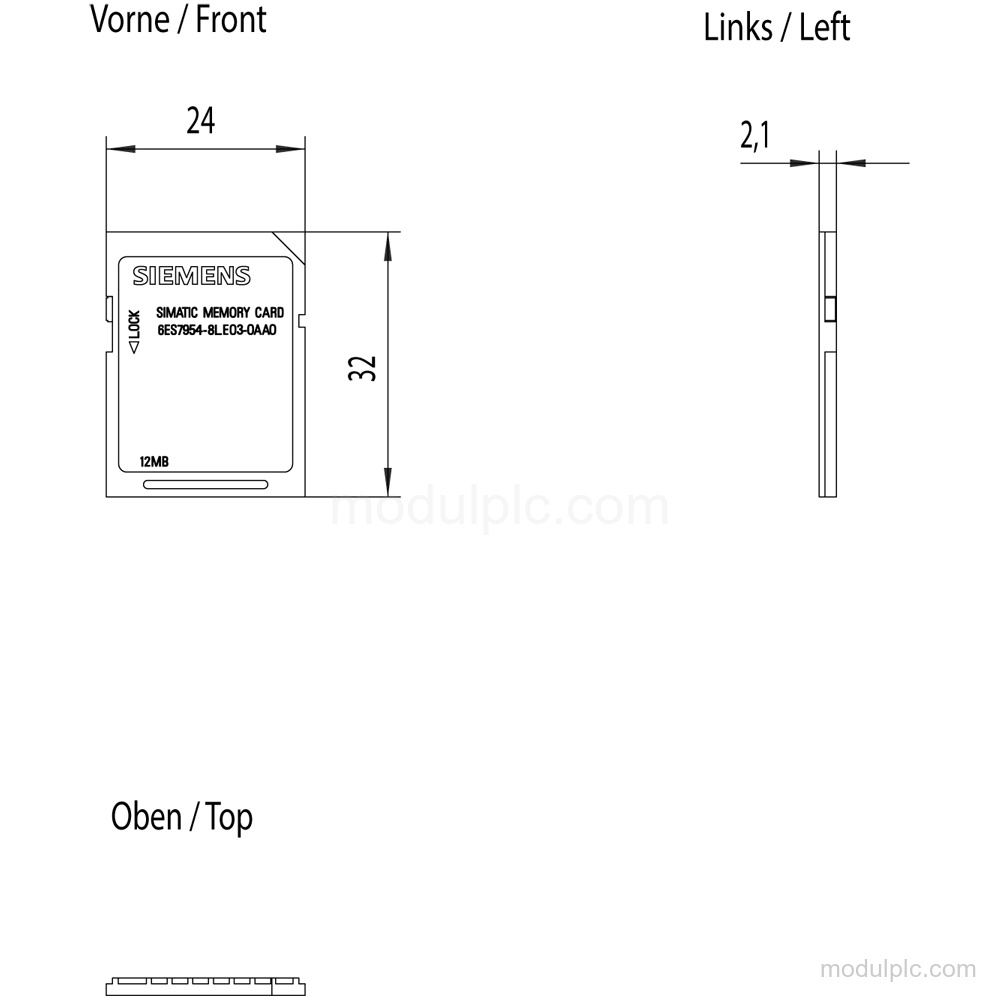

- Dimensions and weight: 24 mm width, 32 mm height, 2.1 mm depth, and approximately 3 g weight.
- Product lifecycle: Product cancellation.
Frequently Asked Questions
1. What type of memory does the 6ES7954-8LE03-0AA0 use?
It uses Flash-EPROM memory.
2. What is the memory size and write/delete endurance?
The memory size is 12 Mbyte, with a minimum of 500 000 write/delete operations.
3. What are the dimensions and weight?
The dimensions are 24 mm width, 32 mm height, and 2.1 mm depth. Weight is approximately 3 g.
