Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Memory type | Flash-EPROM |
| Memory size | 4 Mbyte |
| Write/delete operations, min. | 500 000 |
| Data retention, min. | 10 a after the final programming action if delete/write processes are < 50 000; 1 a if delete/write processes are > 450 000 |
Key Features
- Memory type and size: Flash-EPROM with 4 Mbyte memory.
- Write/delete operations: Minimum 500 000 write/delete operations.
- Data retention: Minimum 10 a after the final programming action if delete/write processes are < 50 000; 1 a if delete/write processes are > 450 000.

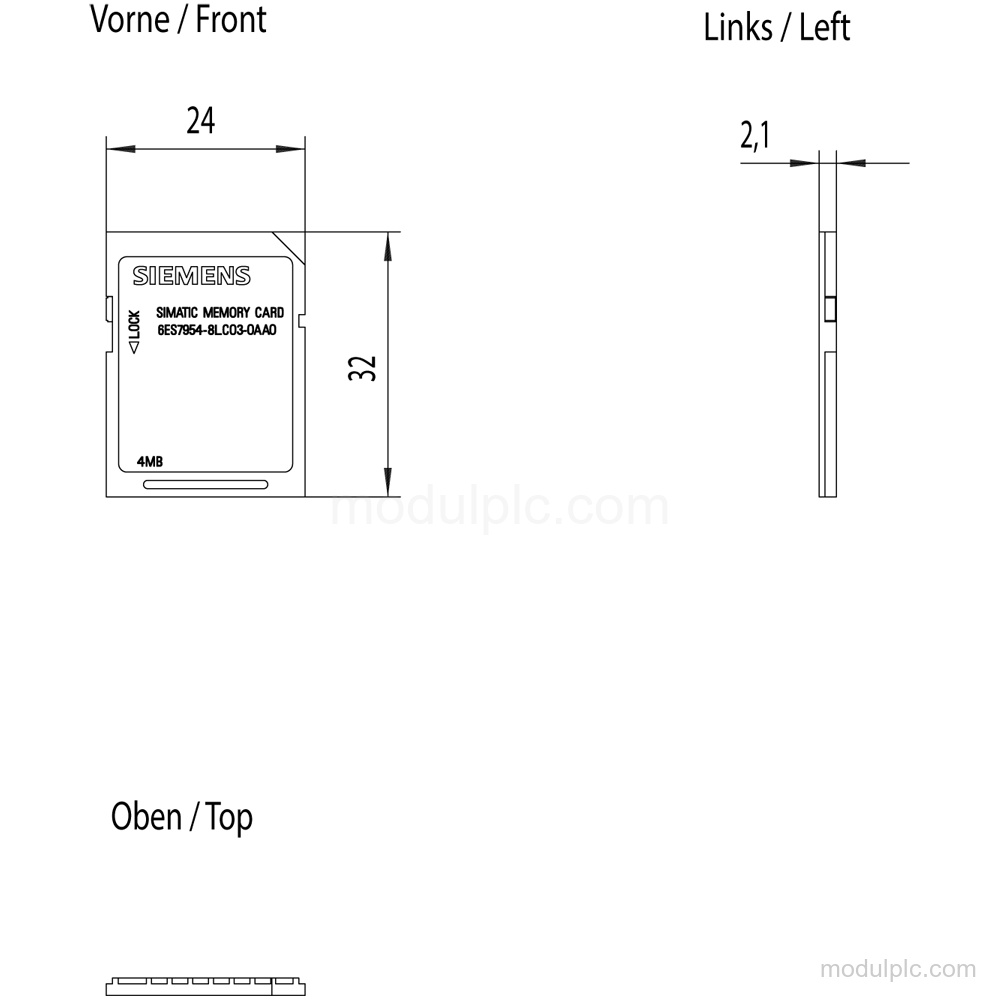

- Dimensions: Width: 24 mm; height: 32 mm; depth: 2.1 mm.
- Weight: Approx. 3 g.
- Lifecycle: Product cancellation.
Frequently Asked Questions
1. What memory type and size does Siemens 6ES7954-8LC03-0AA0 have?
It has Flash-EPROM memory with a size of 4 Mbyte.
2. How many write/delete operations are supported?
The minimum number is 500 000 write/delete operations.
3. What data retention is specified?
Minimum data retention is 10 a after the final programming action if delete/write processes are < 50 000, or 1 a if delete/write processes are > 450 000.
4. What are the dimensions and weight?
The dimensions are 24 mm wide, 32 mm high, and 2.1 mm deep. Weight is approx. 3 g.
