Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Micro Memory Card |
| Memory type | Flash-EPROM |
| Memory size | 8 Mbyte |
| Write/delete operations, min. | 100 000 |
| Data retention after final programming action, min. | 10 a |
| Product lifecycle | Announcement of product phase-out |
Key Features

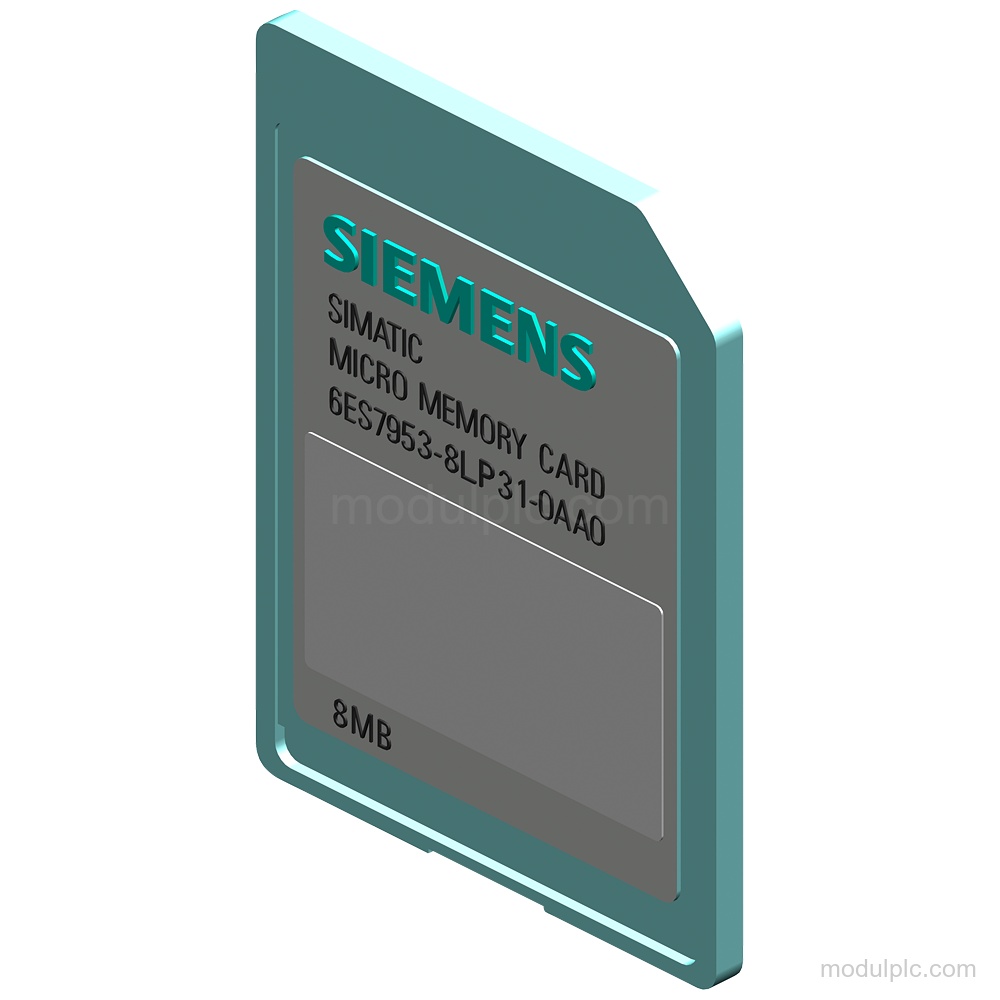

- Micro Memory Card: Product type designation: Micro Memory Card for SIMATIC S7-300/C7/ET 200.
- Flash-EPROM storage: Memory type: Flash-EPROM with 8 Mbyte memory size.
- Write/delete endurance: Minimum number of write/delete operations: 100 000.
- Data retention: Minimum data retention after the final programming action: 10 a.

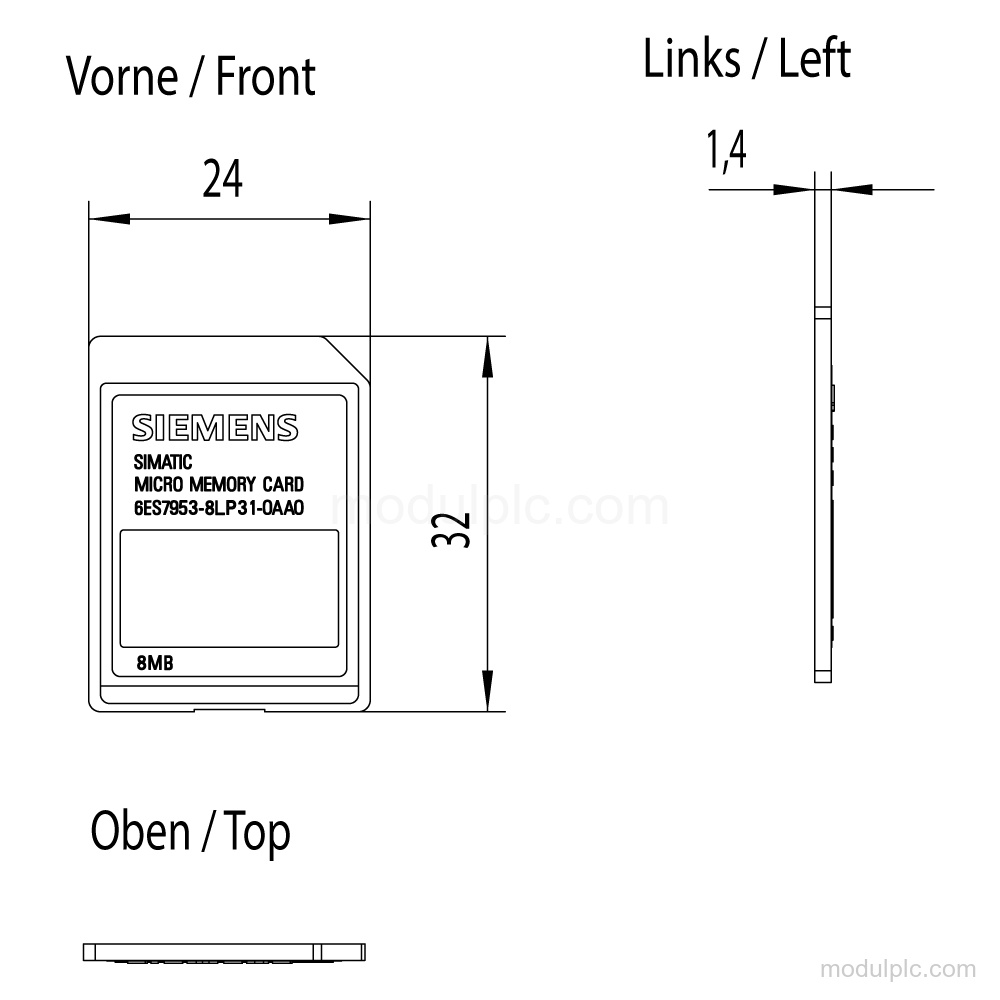

- Compact dimensions: Dimensions: 24 mm width, 32 mm height, and 1.4 mm depth.
- Product lifecycle: Product lifecycle: Announcement of product phase-out.
Frequently Asked Questions
1. What is the product type of Siemens 6ES7953-8LP31-0AA0?
It is a Micro Memory Card for SIMATIC S7-300/C7/ET 200.
2. How much memory does the 6ES7953-8LP31-0AA0 have?
It has 8 Mbyte of Flash-EPROM memory.
3. How many write/delete operations are supported?
The minimum number of write/delete operations is 100 000.
4. What are the dimensions of this Micro Memory Card?
The width is 24 mm, the height is 32 mm, and the depth is 1.4 mm.
