Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Micro Memory Card |
| Memory type | Flash-EPROM |
| Memory size | 128 kbyte |
| Write/delete operations, min. | 100 000 |
| Data retention after final programming action, min. | 10 a |
Key Features

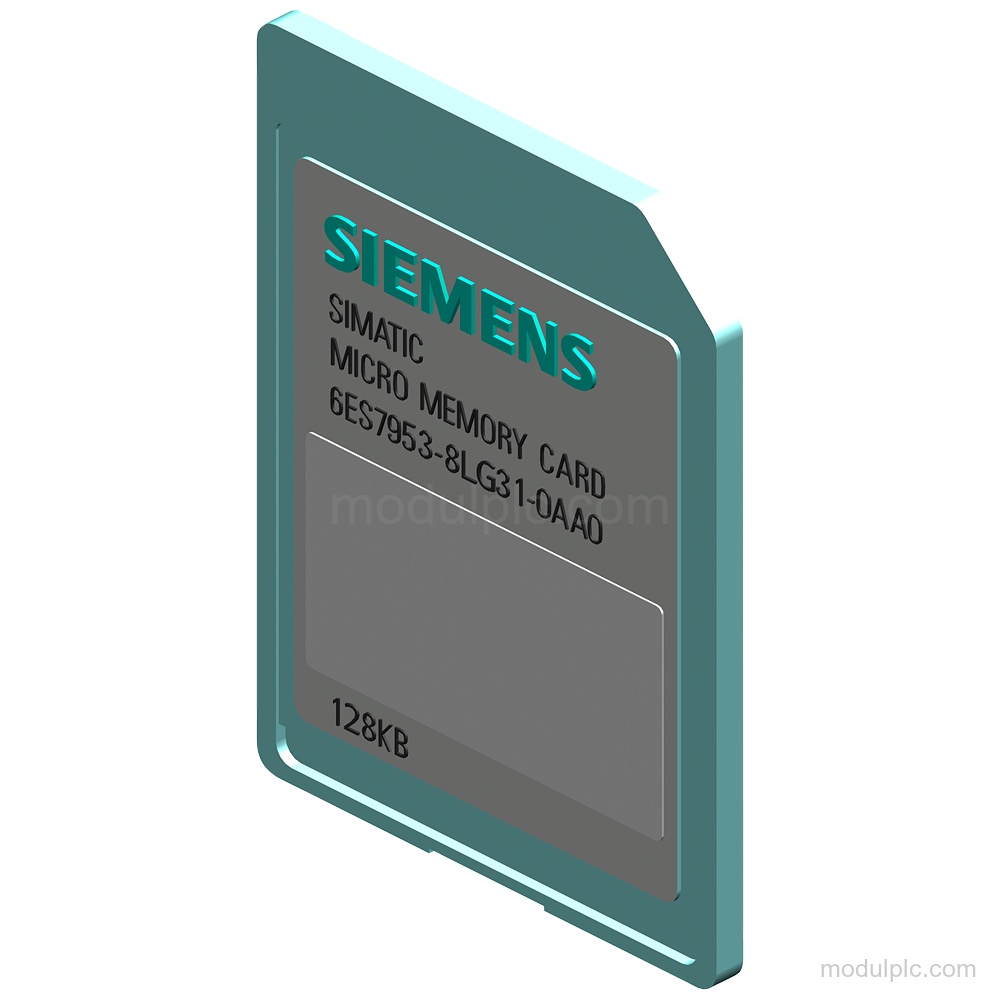

- Product type: Micro Memory Card for SIMATIC S7, S7-300/C7/ET 200.
- Memory type and size: Flash-EPROM with 128 kbyte memory.
- Write/delete operations: Minimum 100 000 write/delete operations.
- Data retention: Minimum 10 a after the final programming action.

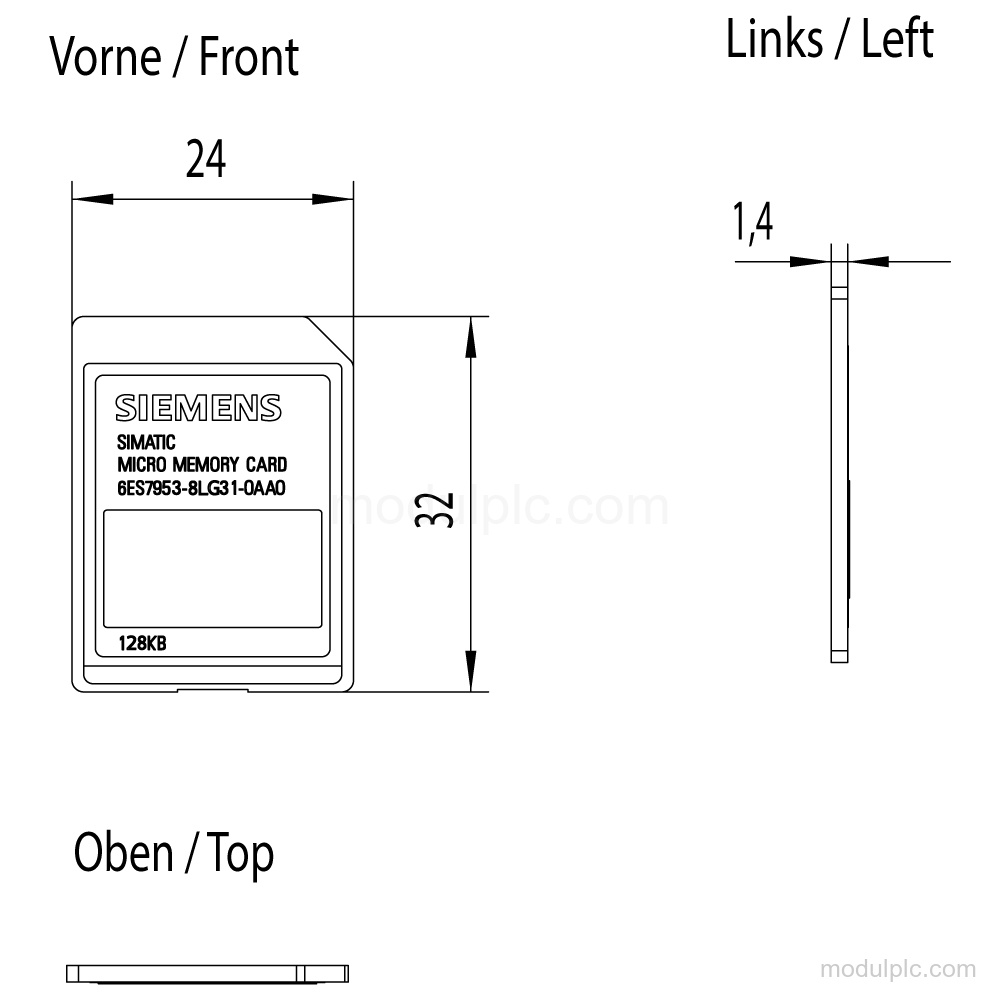

- Dimensions and weight: 24 mm width, 32 mm height, 1.4 mm depth, and approximately 2 g weight.
- Product lifecycle: Announcement of product phase-out.
Frequently Asked Questions
1. What is the Siemens 6ES7953-8LG31-0AA0?
It is a SIMATIC S7 Micro Memory Card for S7-300/C7/ET 200 with Flash-EPROM memory.
2. How much memory does the 6ES7953-8LG31-0AA0 have?
The memory size is 128 kbyte.
3. What are the dimensions of this Micro Memory Card?
The card is 24 mm wide, 32 mm high, and 1.4 mm deep, with an approximate weight of 2 g.
