Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Micro Memory Card |
| Memory type | Flash-EPROM |
| Memory size | 64 kbyte |
| Write/delete operations, min. | 100 000 |
| Data retention after final programming action, min. | 10 a |
Key Features

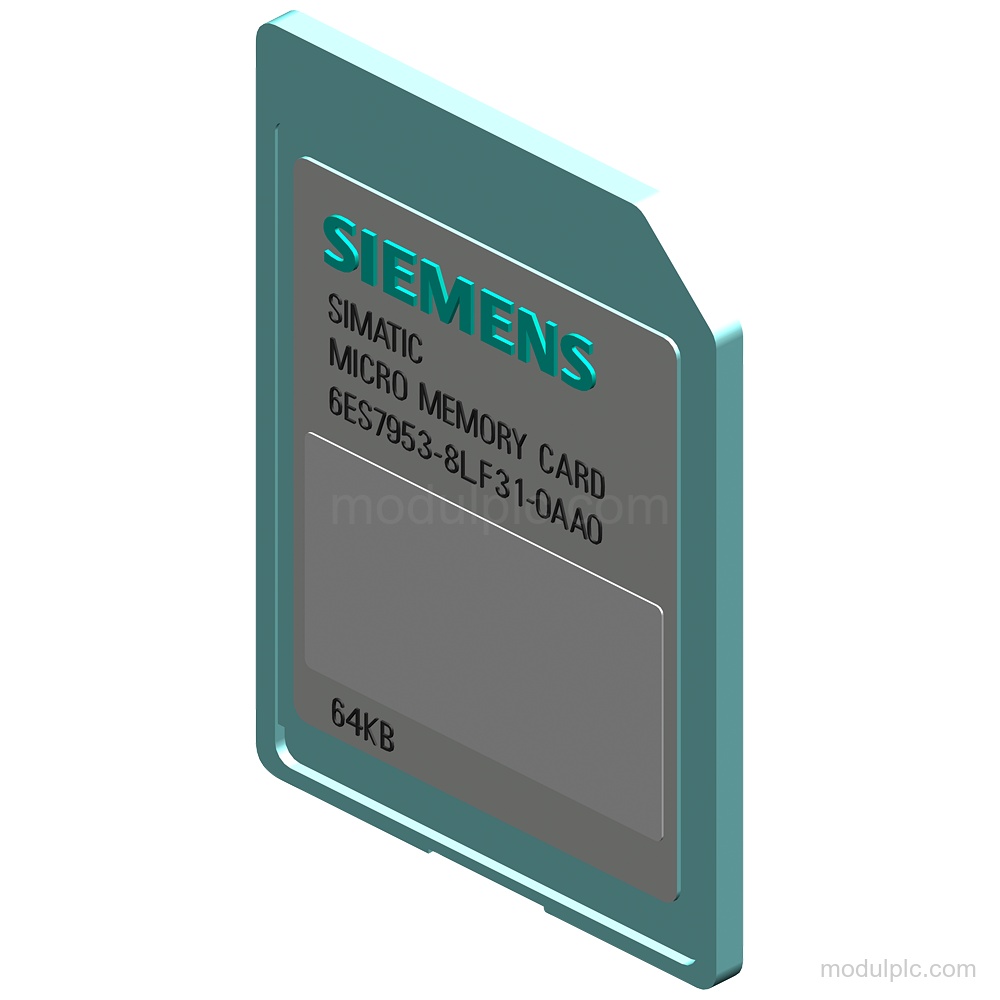

- Micro Memory Card: Product type: Micro Memory Card for S7-300/C7/ET 200.
- 64 kbyte Flash-EPROM: Memory type: Flash-EPROM; memory size: 64 kbyte.
- Write/delete endurance: Number of write/delete operations, min.: 100 000.
- Data retention: Data retention after final programming action, min.: 10 a.

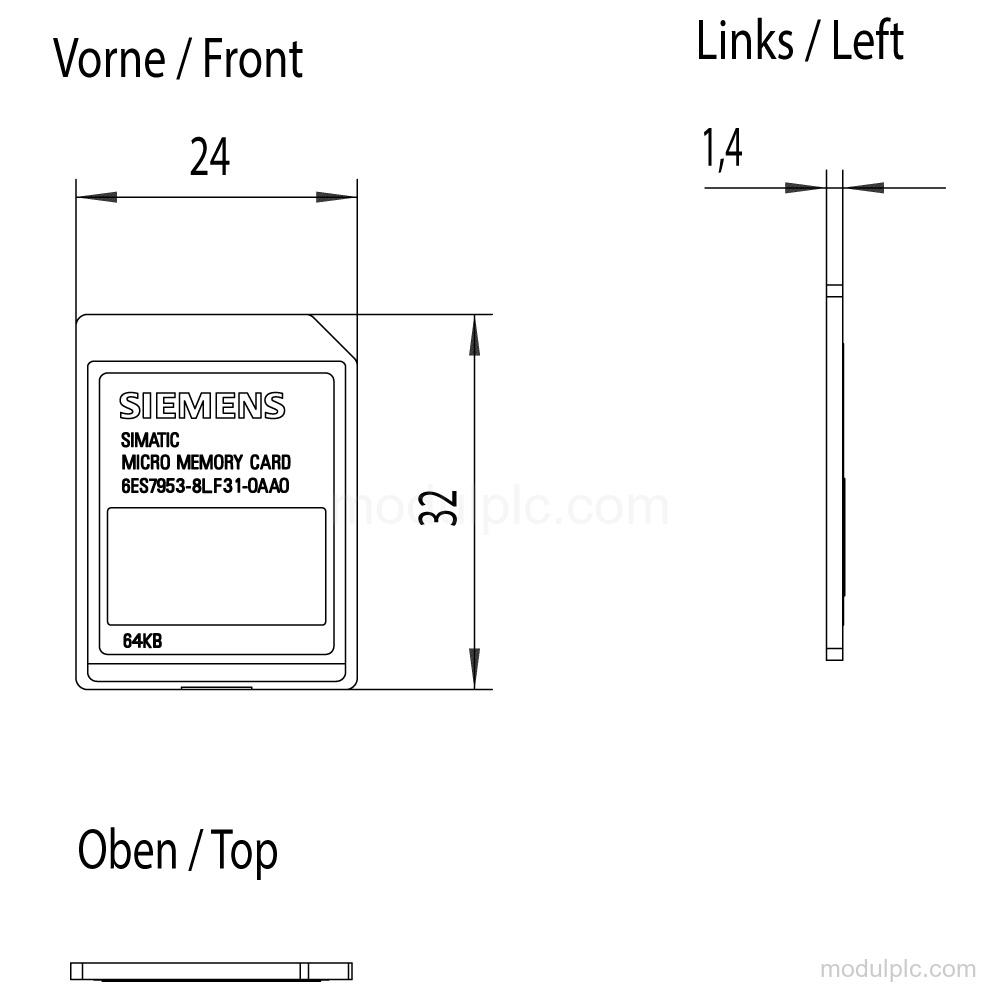

- Compact dimensions: Dimensions: 24 mm width, 32 mm height, and 1.4 mm depth; weight, approx.: 2 g.
- Product lifecycle: Announcement of product phase-out.
Frequently Asked Questions
1. What is the product type of 6ES7953-8LF31-0AA0?
It is a Micro Memory Card for S7-300/C7/ET 200.
2. What memory does the 6ES7953-8LF31-0AA0 have?
It has Flash-EPROM memory with a size of 64 kbyte.
3. How many write/delete operations does it support?
The minimum number of write/delete operations is 100 000.
4. What are the dimensions and weight?
The dimensions are 24 mm x 32 mm x 1.4 mm, and the weight is approx. 2 g.
