Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1515R-2 PN |
| Program memory | 500 kbyte |
| Data memory | 3 Mbyte |
| PROFINET interfaces | 2 |
| PROFINET IO Controller | Yes |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V DC |
| Rated current consumption | 0.8 A |
| Maximum connectable IO Devices | 64 |
| Diagnostic buffer | 3 200 entries; 500 powerfail-proof entries |
Applications
- PROFINET IO control: The CPU performs PROFINET IO Controller functions and supports up to 64 connectable IO Devices.
- Open industrial Ethernet communication: The CPU supports TCP/IP, ISO-on-TCP (RFC1006), UDP, DNS, SNMP, DCP, LLDP, and MODBUS TCP communication.
- Program and system diagnostics: The CPU provides program alarms, system diagnostic alarms, a diagnostic buffer, status and control variables, forcing, and configurable traces.
- Control functions: The CPU supports PID_Compact, PID_3Step, PID-Temp, and counting and measuring functions.
Key Features
- CPU and memory: CPU 1515R-2 PN with 500 kbyte integrated program memory, 3 Mbyte integrated data memory, and plug-in SIMATIC Memory Card load memory up to 32 Gbyte.

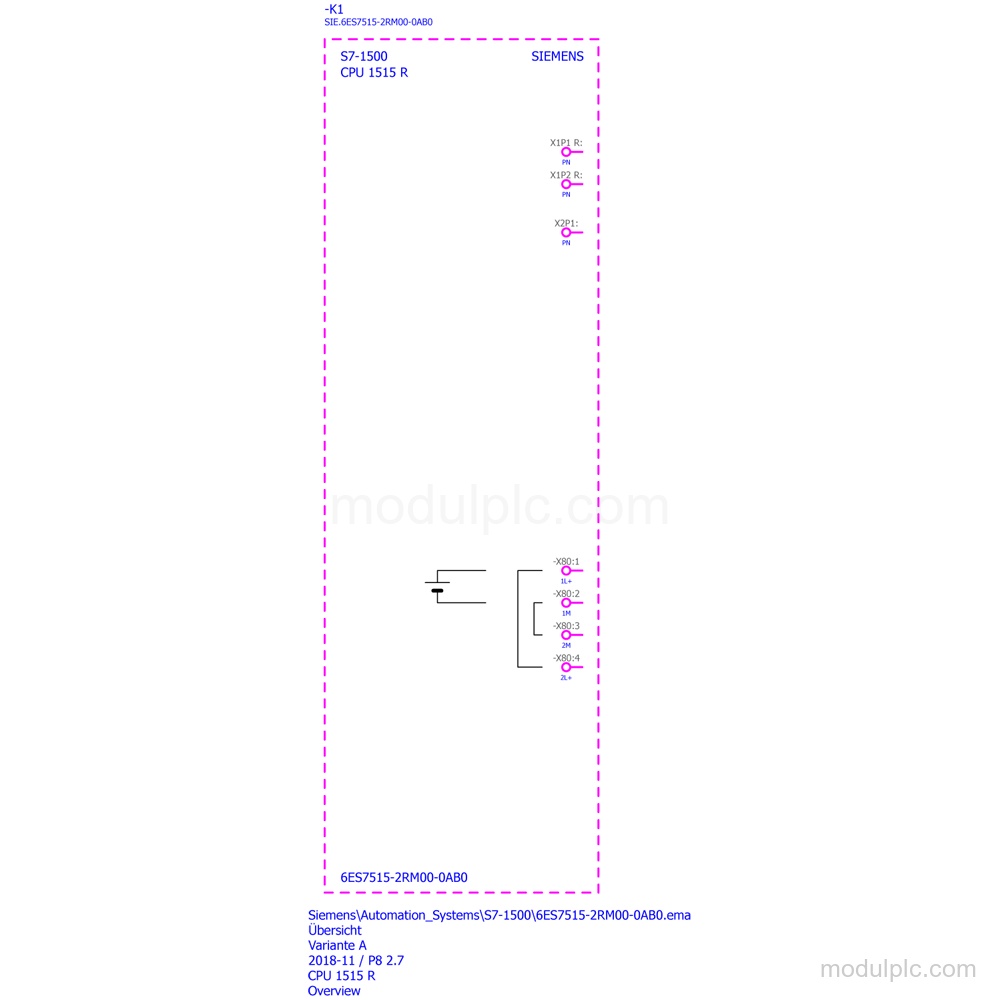

- PROFINET interfaces: Two PROFINET interfaces are provided. Interface X1 has a 2-port integrated switch; interface X2 has 1 RJ 45 port without an integrated switch.
- Supply and current: Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC. Rated current consumption is 0.8 A and maximum inrush current is 2.4 A.
- Diagnostics and control: The CPU has a diagnostic buffer with up to 3 200 entries, RUN/STOP, ERROR, and MAINT LEDs, status and control variables, forcing, and up to 4 configurable traces.

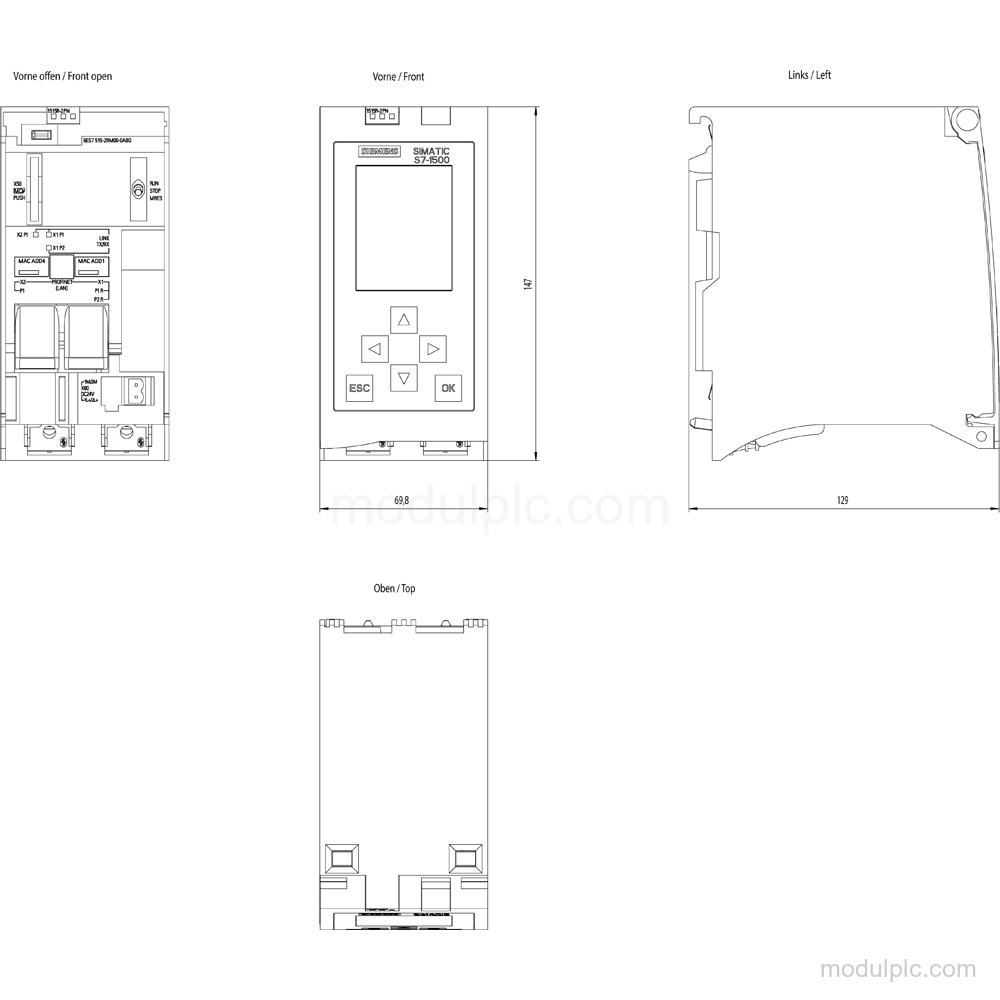

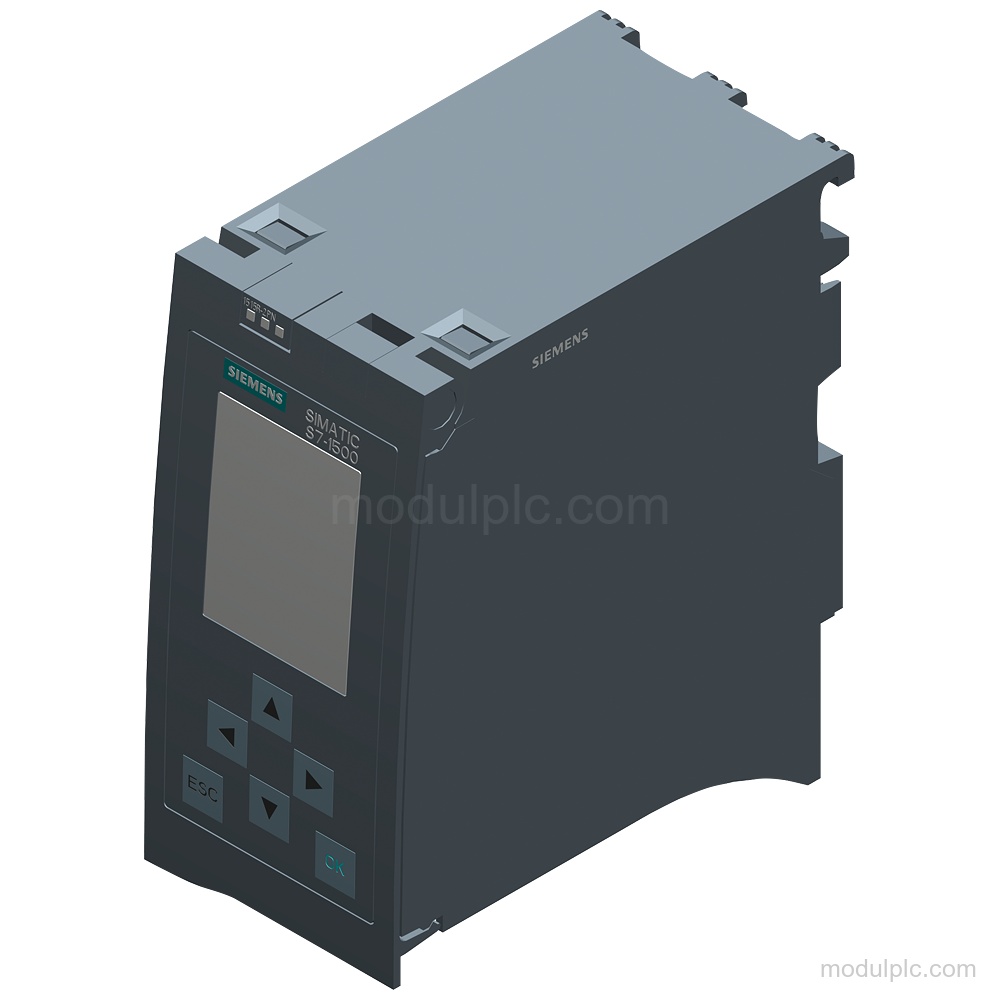

- Installation and dimensions: Dimensions are 70 mm wide, 147 mm high, and 129 mm deep; approximate weight is 830 g. During operation, ambient temperature is 0 °C to 60 °C for horizontal installation and 0 °C to 40 °C for vertical installation.
Frequently Asked Questions
1. What is the function of the 6ES7515-2RM00-0AB0?
It is a SIMATIC S7-1500R CPU 1515R-2 PN central processing unit with PROFINET IO Controller functions.
2. How many PROFINET interfaces does this CPU have?
It has 2 PROFINET interfaces: X1 with a 2-port integrated switch and X2 with 1 RJ 45 port without an integrated switch.
3. What supply voltage does the CPU require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
4. What must be included in the configuration?
A SIMATIC Memory Card is required.
