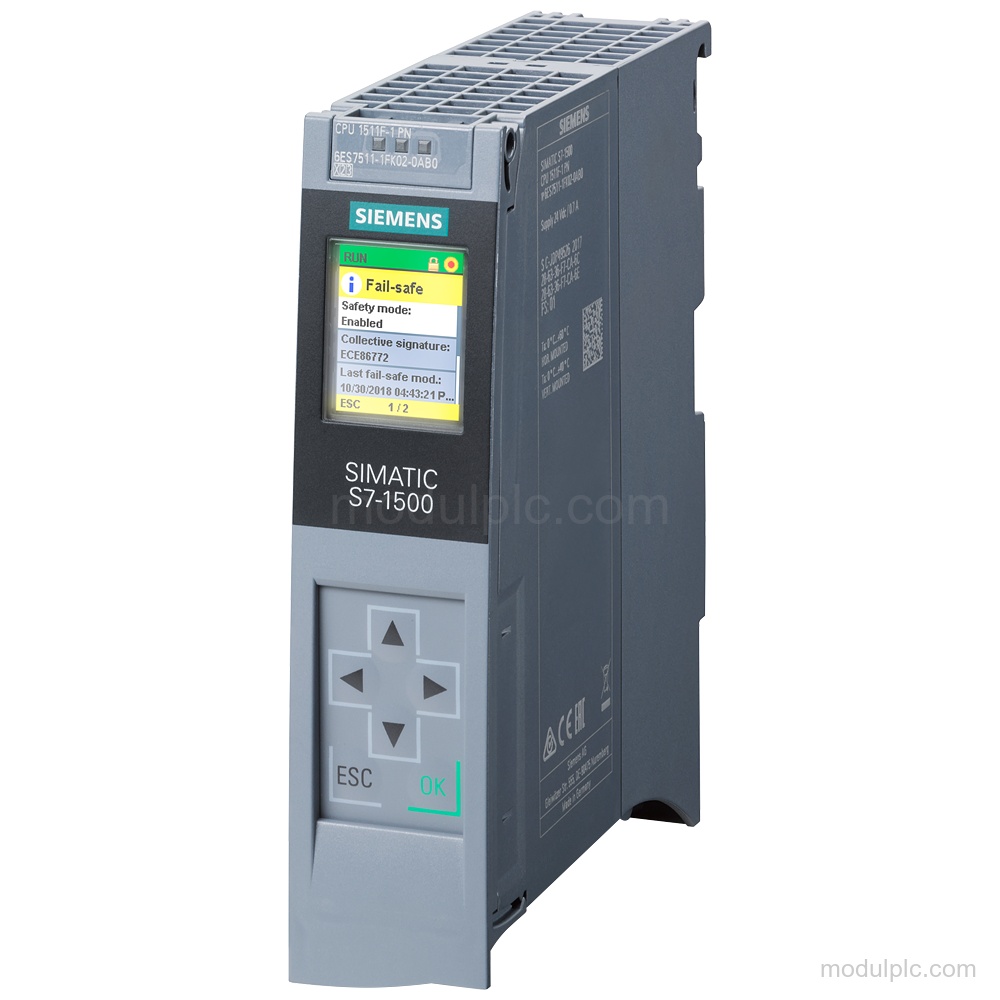

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1511F-1 PN |
| Program work memory | 225 kbyte |
| Data work memory | 1 Mbyte |
| PROFINET interfaces | 1 |
| PROFINET ports | 2; integrated switch |
| Rated supply voltage | 24 V DC |
| Supply voltage range | 19.2 V to 28.8 V DC |
| Bit operation time | 60 ns, typical |
| Maximum PROFINET IO Devices | 128 |
| SIMATIC Memory Card | Required |
Applications
- PROFINET I/O control: Controls PROFINET IO devices as a PROFINET IO Controller and can operate as a PROFINET IO Device.
- Fail-safe program execution: Executes fail-safe programs using LAD or FBD, with safety performance up to PLe and SIL 3.
Key Features
- Fail-safe CPU: CPU 1511F-1 PN for SIMATIC S7-1500F, with firmware version V2.8 and fail-safe LAD and FBD programming.

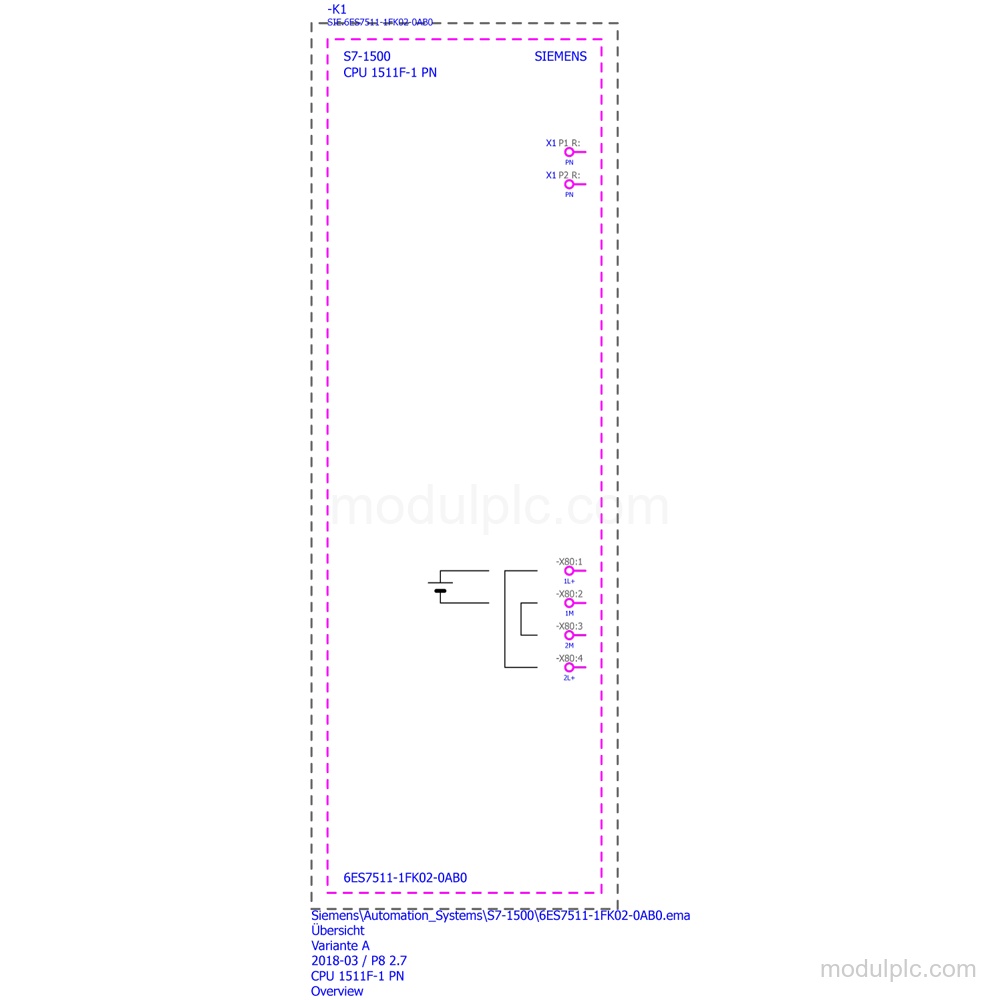

- PROFINET interface: One PROFINET interface with RJ 45 connection X1, 2 ports, integrated switch, PROFINET IO Controller and PROFINET IO Device functions.
- Memory: Integrated work memory: 225 kbyte for the program and 1 Mbyte for data. A SIMATIC Memory Card is required; plug-in load memory is supported up to 32 Gbyte.
- Power supply: Rated supply voltage: 24 V DC, with a permissible range of 19.2 V to 28.8 V DC and reverse polarity protection.
- Safety performance: Performance level PLe according to ISO 13849-1 and SIL 3 according to IEC 61508 in safety mode.

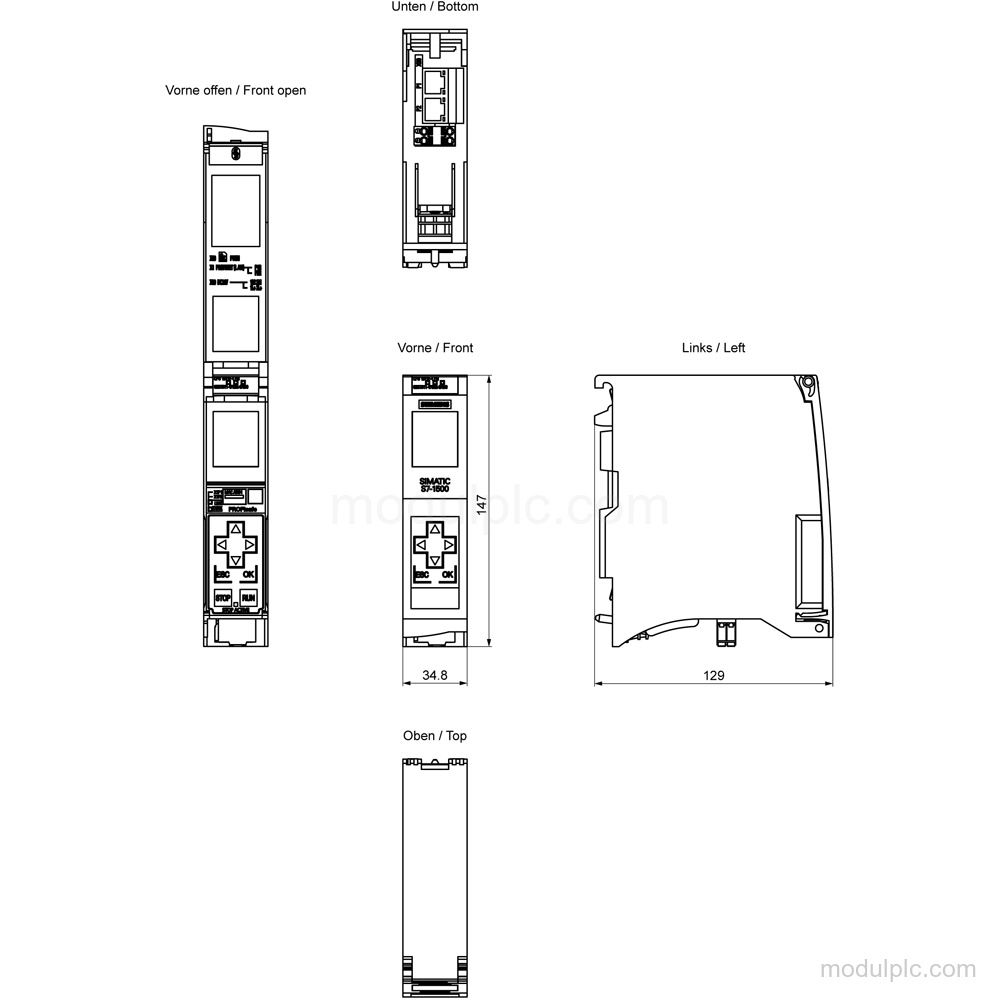

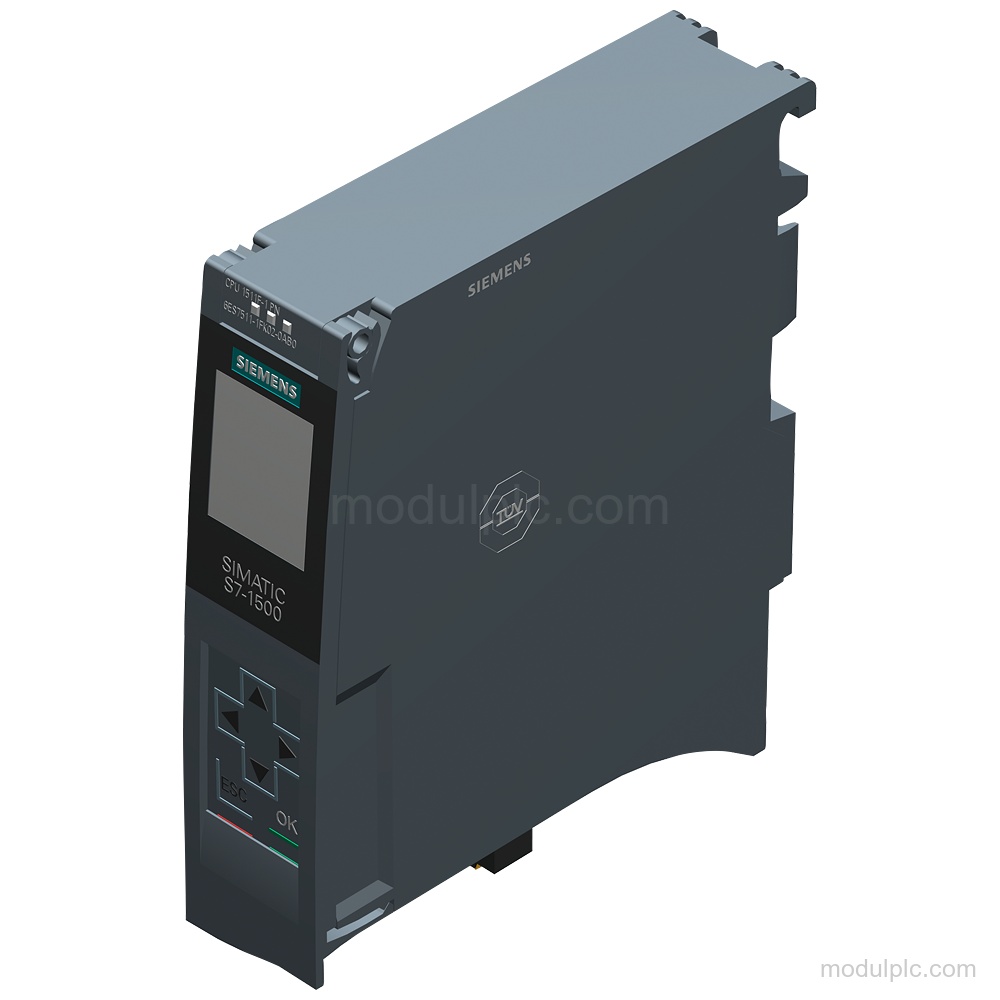

- Installation dimensions: Dimensions: 35 mm width, 147 mm height and 129 mm depth. Approximate weight: 405 g.
Frequently Asked Questions
1. What is the function of Siemens 6ES7511-1FK02-0AB0?
It is a SIMATIC S7-1500F CPU 1511F-1 PN with fail-safe program execution and PROFINET IO Controller and IO Device functions.
2. How much work memory does this CPU have?
It has 225 kbyte of integrated work memory for the program and 1 Mbyte for data.
3. What PROFINET connections are provided?
It has one PROFINET interface with an RJ 45 connection, 2 ports and an integrated switch.
4. What supply voltage does the CPU use?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
5. Is a SIMATIC Memory Card included?
A SIMATIC Memory Card is required; the supplied configuration does not state that the card is included.
