Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Front connector |
| Connection method | Spring terminals |
| Pole count | 40-pole |
| Cable lines per connection | 1; or 2 cables up to 0.75 mm2 total in a shared end sleeve |
| Flexible cable cross-section without end sleeve | 0.14 mm2 to 0.75 mm2 |
| Flexible cable cross-section with end sleeve | 0.14 mm2 to 0.75 mm2 |
| Operating ambient temperature | 0 °C to 60 °C |
| Storage/transport ambient temperature | -40 °C to 70 °C |
| Product lifecycle | Product cancellation |
Key Features
- Front connector: Front connector for SIMATIC S7-300 signal modules.
- 40-pole connection: 40-pole connector with spring terminals for I/O signal connections.
- Cable connection: Supports 1 line per connection, or 2 cables up to 0.75 mm2 total in a shared end sleeve.
- Wire preparation: Cable stripping length: 6 mm. End sleeves support DIN 46228 Design A, 5 mm to 7 mm long, and Design E, up to 6 mm long.

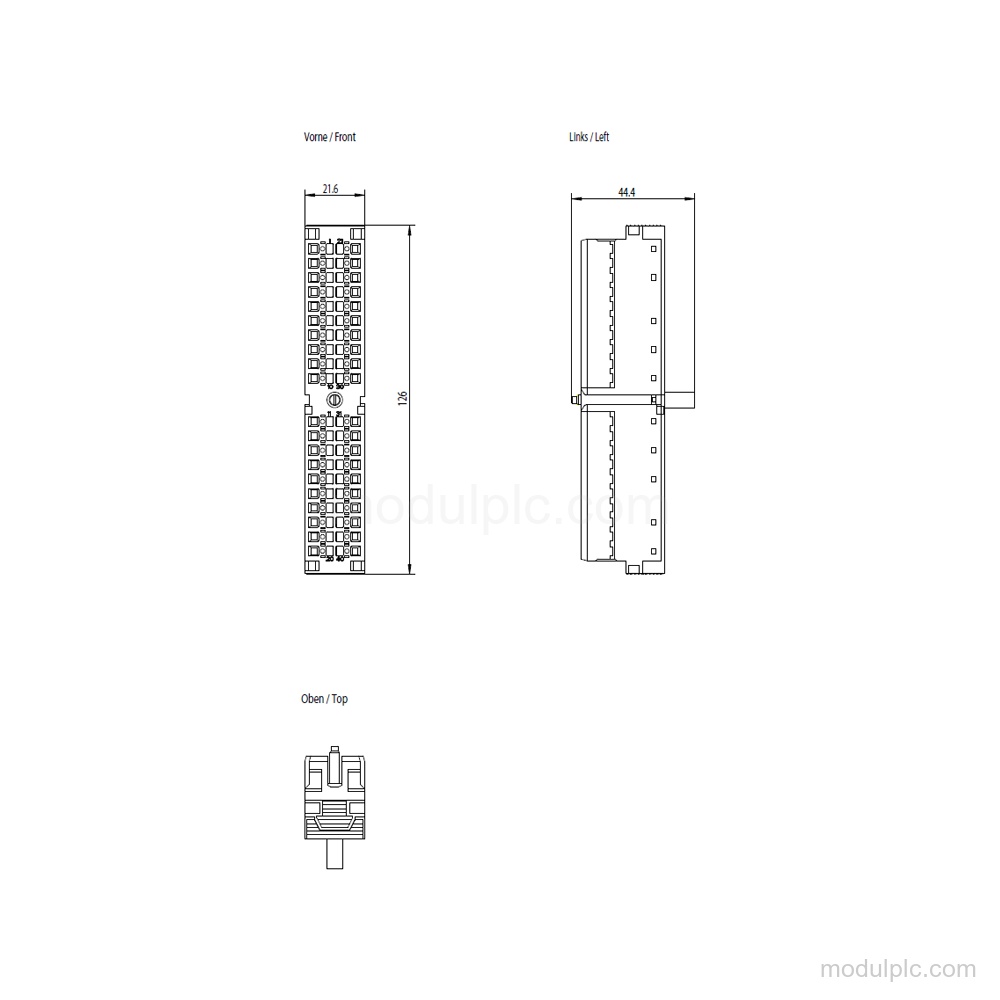

- Dimensions and weight: Width: 21.6 mm; height: 126 mm; depth: 40.9 mm; weight, approx.: 98 g.
- Lifecycle: Product cancellation.
Frequently Asked Questions
1. What is the Siemens 6ES7392-1BM01-0AA0?
It is a 40-pole front connector for SIMATIC S7-300 signal modules with spring terminals.
2. What cable cross-sections can the connector accept?
Flexible cables without or with an end sleeve can have a cross-section from 0.14 mm2 to 0.75 mm2.
3. What is the required cable stripping length?
The cable stripping length is 6 mm.
4. What are the connector dimensions and weight?
The dimensions are 21.6 mm wide, 126 mm high, and 40.9 mm deep; weight is approximately 98 g.
5. What should be verified before requesting a quote?
Verify the 40-pole configuration, spring terminals, cable cross-section, end-sleeve requirements, and dimensions.
