Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Front connector |
| System context | S7-300 |
| Connection method | Screw terminals |
| Connection capacity | 1 cable per connection, or 2 cables up to 0.75 mm2 total in a shared end sleeve |
| Mounting tool | Screwdriver, conical design, 3 mm to 3.5 mm |
| Tightening torque | 0.4 N·m to 0.7 N·m |
| Operating ambient temperature | 0 °C to 60 °C |
| Storage/transportation ambient temperature | -40 °C to 70 °C |
Key Features

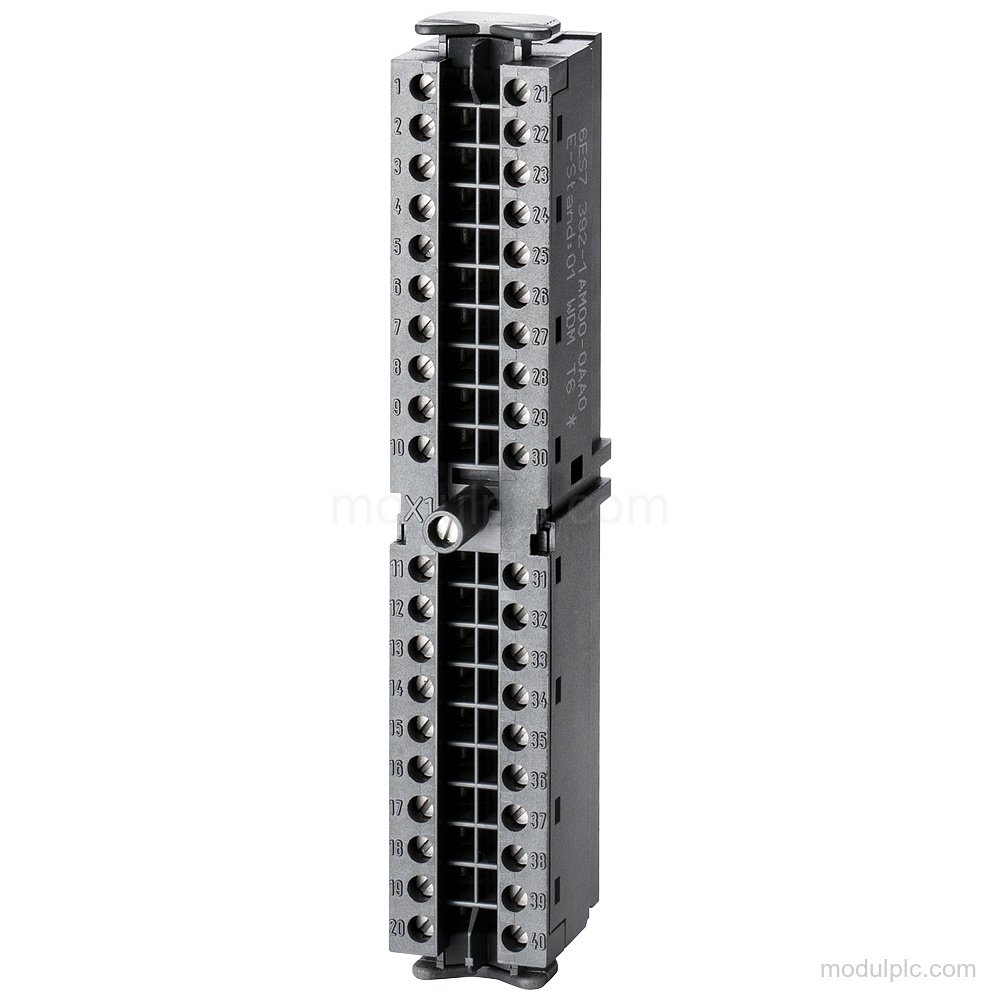

- Product type: Front connector for S7-300.
- Connection method: Screw terminals for I/O signals.
- Connection capacity: 1 cable per connection, or 2 cables up to 0.75 mm2 total in a shared end sleeve.
- Cable preparation: Stripped cable length: 6 mm.
- Mounting torque: Tightening torque: 0.4 N·m to 0.7 N·m.

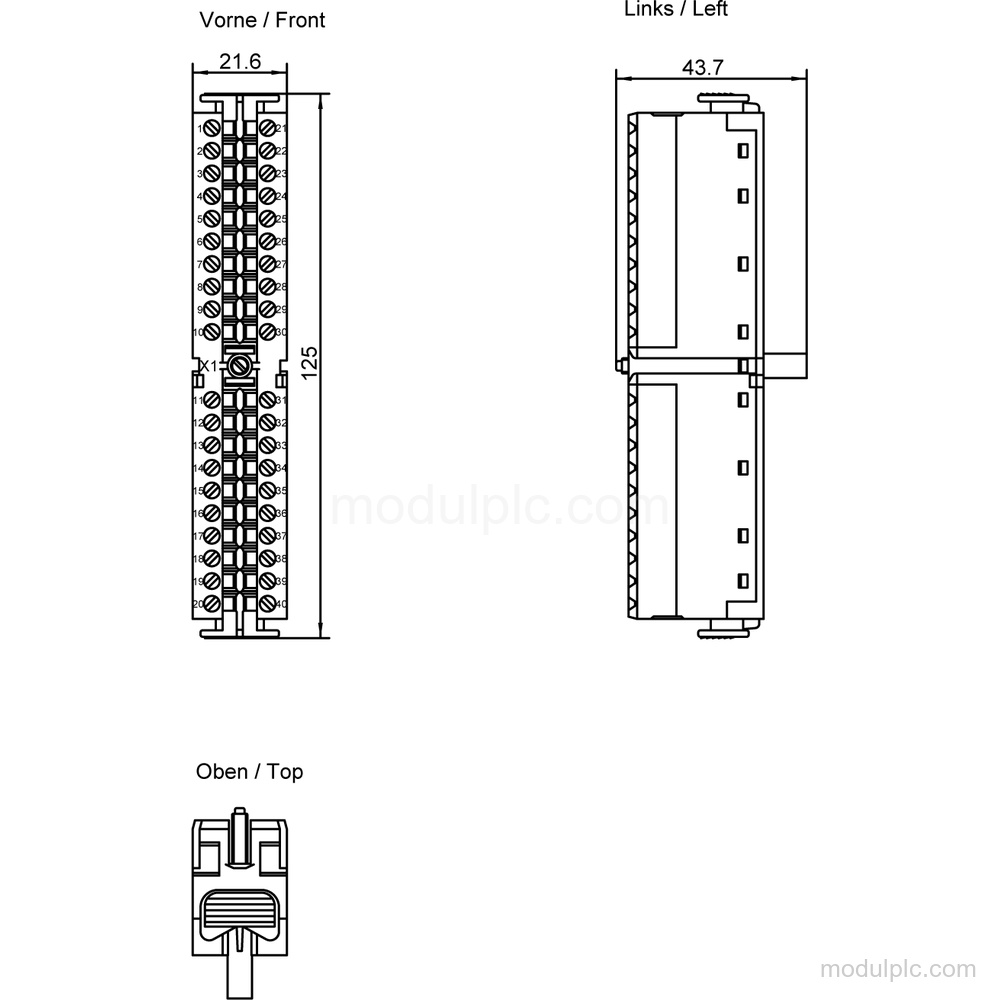

- Dimensions and weight: Width: 21.6 mm; height: 125 mm; depth: 40.9 mm; weight, approx.: 137 g.
Frequently Asked Questions
1. What is the connection method of 6ES7392-1AM00-0AA0?
It uses screw terminals for I/O signals.
2. How many cables can be connected per connection?
It accepts 1 cable per connection, or 2 cables up to 0.75 mm2 total in a shared end sleeve.
3. What are the dimensions and weight?
The dimensions are 21.6 mm wide, 125 mm high, and 40.9 mm deep; the weight is approx. 137 g.
4. What tightening torque is supported?
The tightening torque is 0.4 N·m to 0.7 N·m.
