Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Front connector |
| System context | SIMATIC S7-300 |
| Connection method | Screw terminals |
| Pole count | 20-pole |
| Operating temperature | 0 °C to 60 °C |
| Storage/transport temperature | -40 °C to 70 °C |
| Recommended tool | Screwdriver, conical design, 3 mm to 3.5 mm |
| Tightening torque | 0.4 N·m to 0.7 N·m |
Key Features

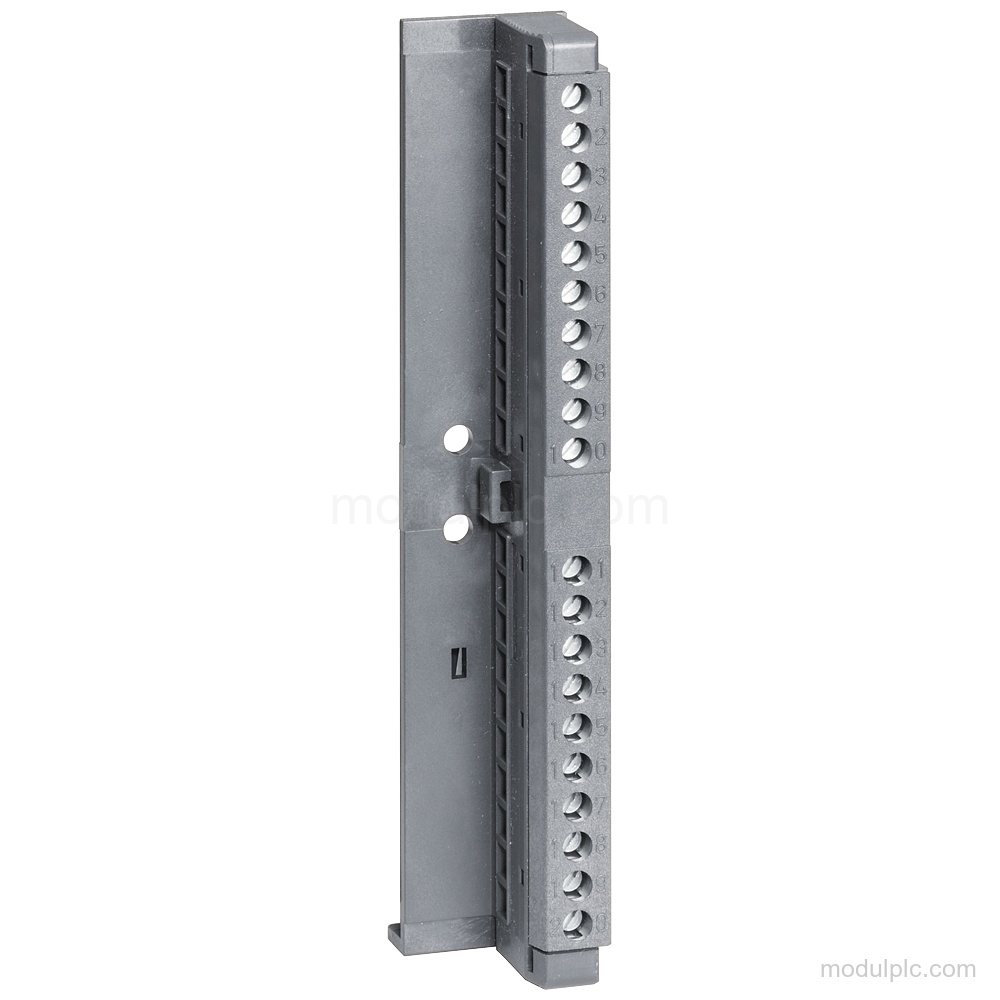

- Front connector: 20-pole front connector for SIMATIC S7-300 signal modules.
- Screw terminals: Connection method: screw terminals.
- Operating temperature: Ambient temperature during operation: 0 °C to 60 °C.

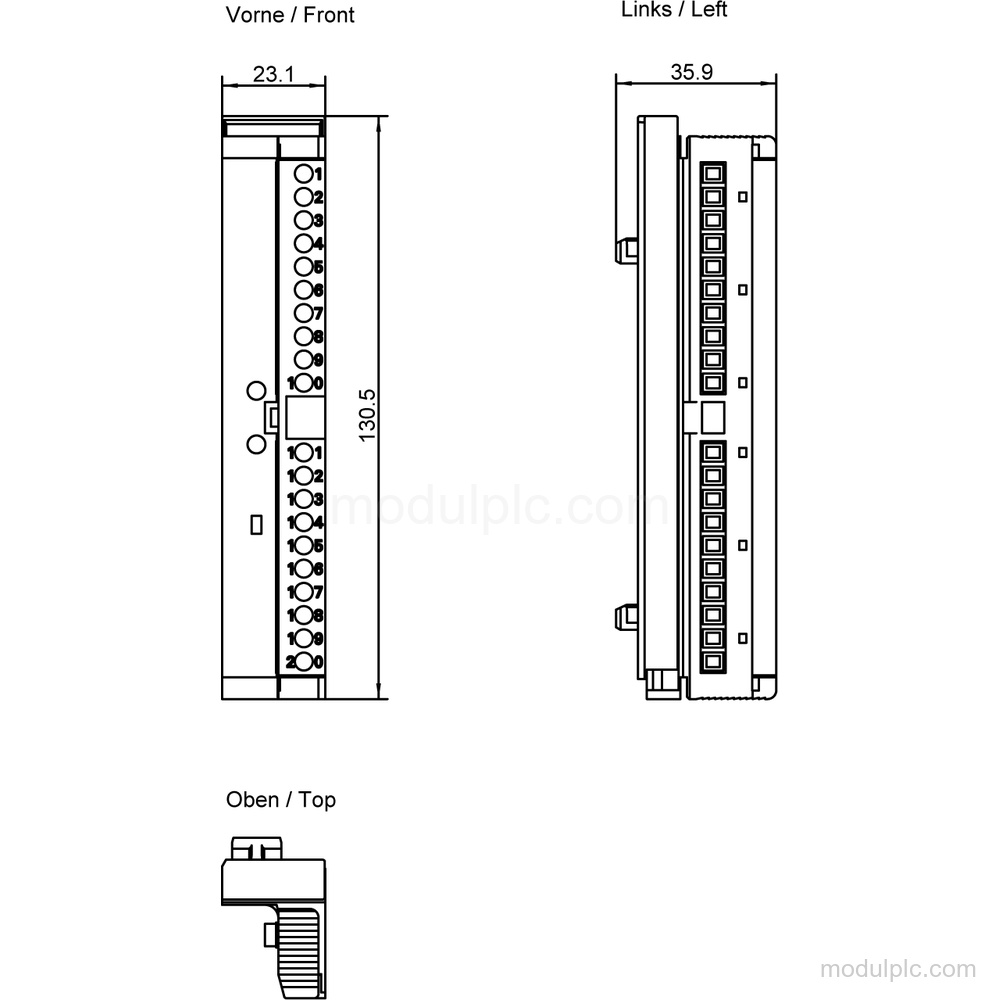

- Dimensions and weight: Dimensions: 23 mm wide, 131 mm high, and 36 mm deep; weight: approx. 70 g.
- Mounting torque: Tightening torque: 0.4 N·m to 0.7 N·m.
- Lifecycle: Product cancellation.
Frequently Asked Questions
1. What is the Siemens 6ES7392-1AJ00-0AA0?
It is a 20-pole SIMATIC S7-300 front connector for signal modules with screw terminals.
2. What connection method does the 6ES7392-1AJ00-0AA0 use?
It uses screw terminals.
3. What is the operating temperature range?
The ambient temperature during operation is 0 °C to 60 °C.
4. What are the dimensions of the front connector?
The dimensions are 23 mm wide, 131 mm high, and 36 mm deep.
5. What should be verified before requesting a quote?
Verify the 20-pole design, screw-terminal connection, dimensions, and product lifecycle: Product cancellation.
