Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | SM 374 |
| Simulation configurations | 16 inputs, 16 outputs, or 8 inputs and 8 outputs |
| Digital inputs | 16; Switch |
| Digital outputs | 16; LEDs |
| Backplane-bus input current | 5 V DC, max. 80 mA |
| Power loss | Typical 0.35 W |
Applications
- Input and output simulation: Simulates 16 inputs, 16 outputs, or 8 inputs and 8 outputs using 16 switches and 16 LEDs.
Key Features
- SM 374 simulator module: Simulator module for simulating 16 inputs, 16 outputs, or 8 inputs and 8 outputs.
- Digital input simulation: 16 digital inputs with switches.
- Digital output simulation: 16 digital outputs with LEDs.
- Backplane-bus input current: 5 V DC backplane-bus input current: 80 mA maximum.
- Power loss: Typical power loss: 0.35 W.

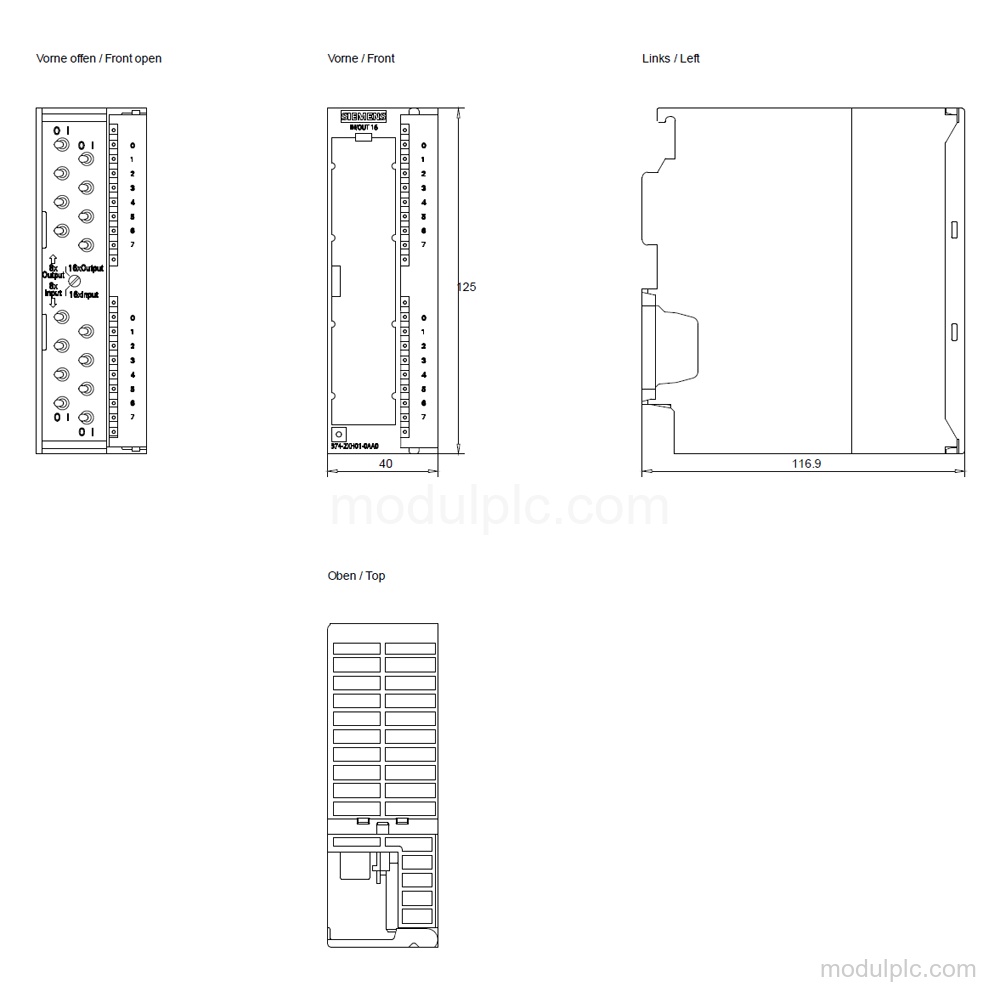

- Dimensions and weight: Dimensions: 40 mm width, 125 mm height, and 120 mm depth. Weight, approx.: 190 g.
Frequently Asked Questions
1. What does the Siemens 6ES7374-2XH01-0AA0 simulate?
It simulates 16 inputs, 16 outputs, or 8 inputs and 8 outputs.
2. How many switches and LEDs does the SM 374 have?
It has 16 switches for the digital inputs and 16 LEDs for the digital outputs.
3. What backplane-bus supply data applies to this module?
The input current from the 5 V DC backplane bus is 80 mA maximum.
