Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | DM 370 |
| Digital inputs | 0 |
| Digital outputs | 0 |
| Analog inputs | 0 |
| Analog outputs | 0 |
| Backplane bus input current | 5 mA max. from backplane bus 5 V DC |
| Power loss | 0.03 W max. |
Applications
- Module replacement: Dummy module use for module replacement.
Key Features
- Dummy module type: Product type designation: DM 370; use: module replacement.
- No I/O channels: Digital inputs: 0; digital outputs: 0; analog inputs: 0; analog outputs: 0.
- Backplane bus input current: Input current from backplane bus 5 V DC: 5 mA max.
- Power loss: Power loss: 0.03 W max.

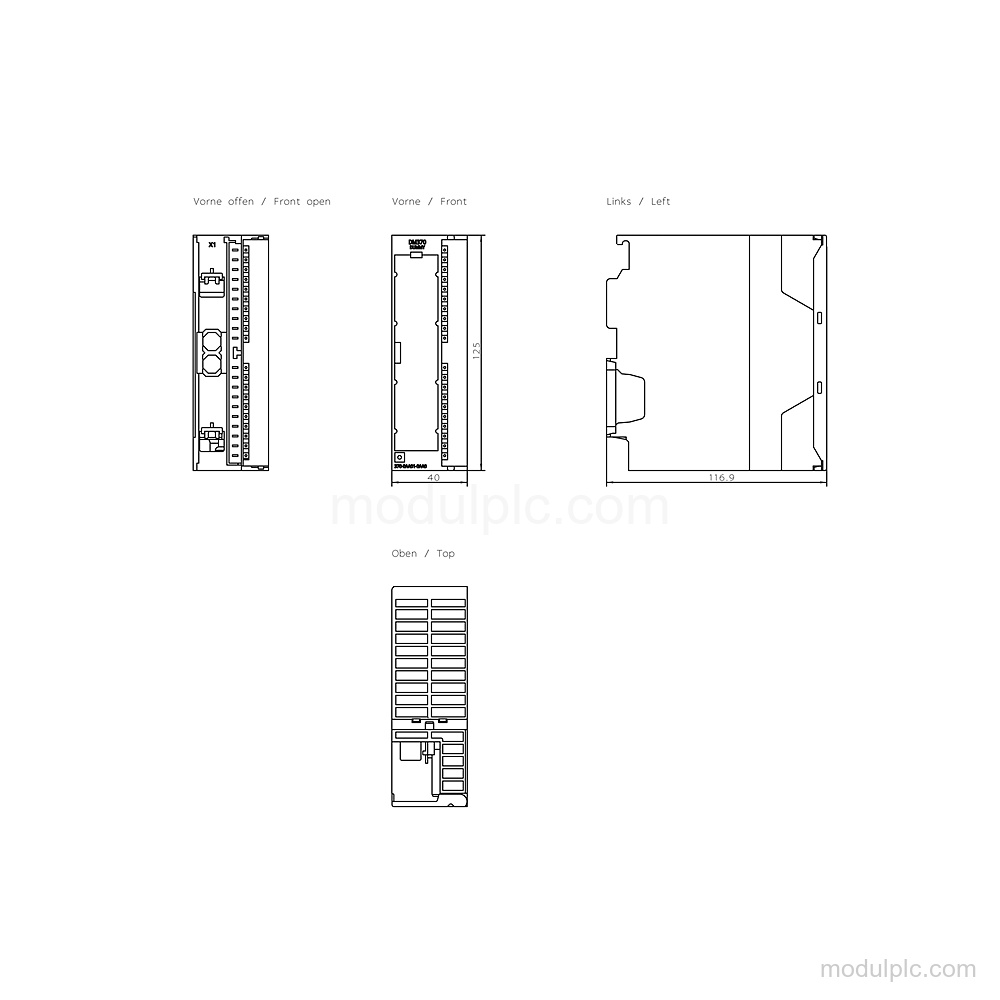

- Module dimensions: Width: 40 mm; height: 125 mm; depth: 120 mm.
- Product lifecycle: Product cancellation.
Frequently Asked Questions
1. What is the function of the 6ES7370-0AA01-0AA0?
It is a DM 370 dummy module for module replacement.
2. How many I/O channels does the DM 370 have?
It has 0 digital inputs, 0 digital outputs, 0 analog inputs, and 0 analog outputs.
3. What is the maximum input current?
The input current from the backplane bus 5 V DC is 5 mA max.
4. What are the module dimensions and weight?
The dimensions are 40 mm × 125 mm × 120 mm, and the approximate weight is 180 g.
