Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | IM 365 connection module |
| System context | SIMATIC S7-300 |
| Supplied configuration | 2 modules + connecting cable 1 m |
| Communications bus | Without communications bus |
| Backplane-bus input current | 5 V DC, max. 100 mA |
| Typical power loss | 0.5 W |
| Number of interfaces per CPU, max. | 1; 1 pair |
Applications
- Extension-rack connection: Connects an extension rack in the SIMATIC S7-300 system.
Key Features
- Extension-rack connection: IM 365 connection module for connecting an extension rack in the SIMATIC S7-300 system.
- Supplied configuration: Supplied as 2 modules with a 1 m connecting cable.
- Backplane-bus current: Input current from the backplane bus: 5 V DC, max. 100 mA.
- Power loss: Typical power loss: 0.5 W.

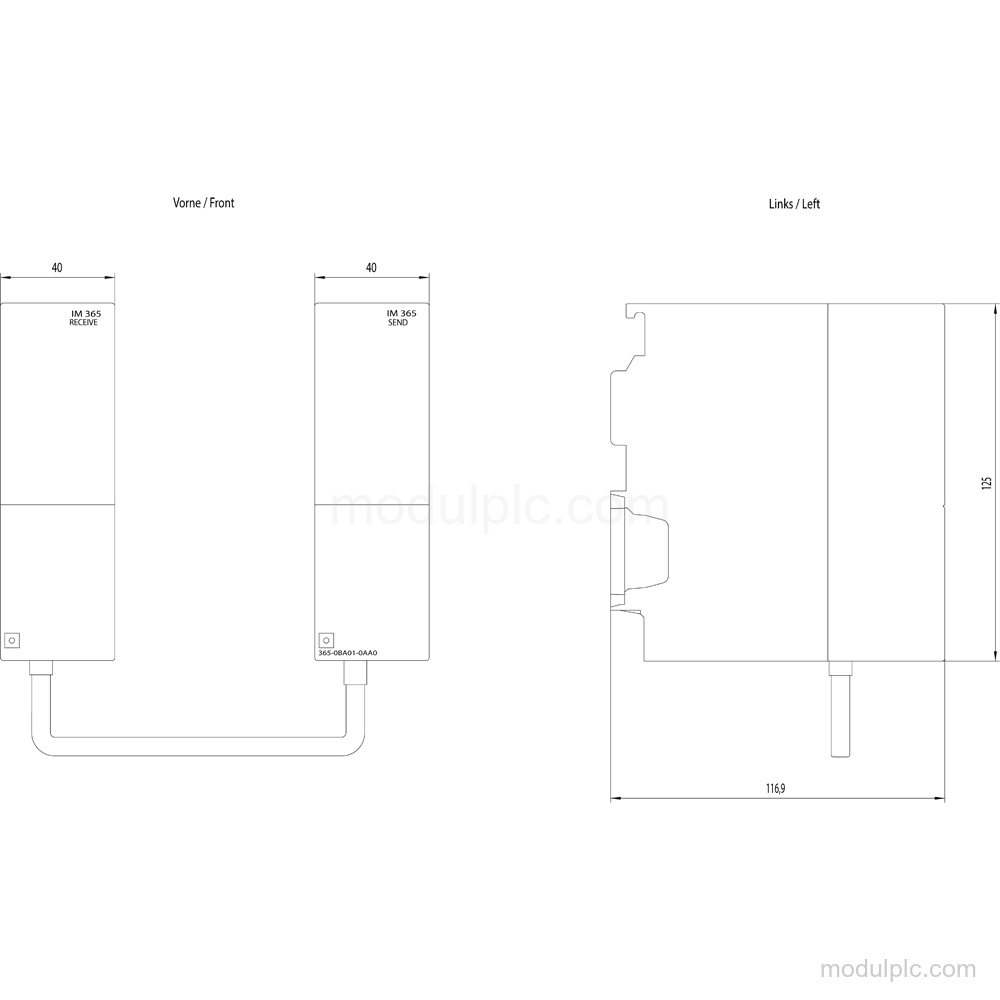

- Physical dimensions: Width: 40 mm; height: 125 mm; depth: 120 mm.
- Communications bus exclusion: Without communications bus.
Frequently Asked Questions
1. What is the function of Siemens 6ES7365-0BA01-0AA0?
It is an IM 365 connection module for connecting an extension rack in the SIMATIC S7-300 system.
2. What is included with the 6ES7365-0BA01-0AA0 configuration?
It includes 2 modules and a 1 m connecting cable.
3. Does the 6ES7365-0BA01-0AA0 have a communications bus?
It is without a communications bus.
