Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module function | IM 360 connection in a central rack |
| Expansion-rack capacity | Up to 3 expansion racks |
| Bus | C-bus |
| Backplane-bus supply | 5 V DC |
| Maximum input current | 350 mA |
| Typical power loss | 2 W |
| Maximum interfaces per CPU | 1 |
| Lifecycle | Product cancellation |
Applications
- Expansion-rack connection: Connects up to 3 expansion racks to a central rack through the IM 360 connection with C-bus.
Key Features
- IM 360 central-rack connection: Connection IM 360 in a central rack for connection of up to 3 expansion racks, with C-bus.
- Backplane-bus input current: Input current from the backplane bus: 5 V DC, maximum 350 mA.
- Typical power loss: Typical power loss: 2 W.
- CPU interface quantity: Maximum number of interfaces per CPU: 1.

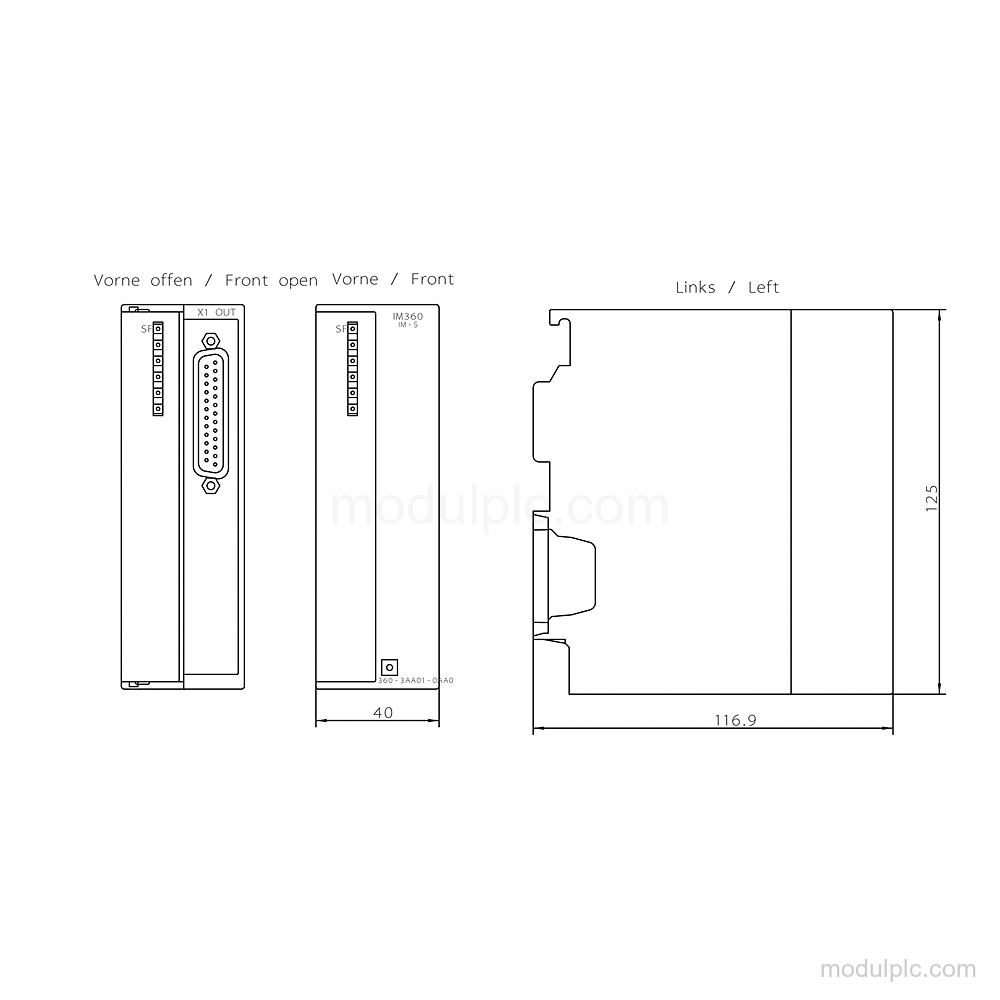

- Dimensions and weight: Dimensions: 40 mm width, 125 mm height, and 120 mm depth. Approximate weight: 225 g.
- Product lifecycle: Product cancellation.
Frequently Asked Questions
1. What is the function of Siemens 6ES7360-3AA01-0AA0?
It is an IM 360 connection in a central rack for connecting up to 3 expansion racks with C-bus.
2. How many expansion racks can this IM 360 connection connect?
It can connect up to 3 expansion racks.
3. What are the input-current and power-loss values?
Input current from the backplane bus is 5 V DC, maximum 350 mA. Typical power loss is 2 W.
4. What are the dimensions and weight?
The dimensions are 40 mm wide, 125 mm high, and 120 mm deep. Approximate weight is 225 g.
