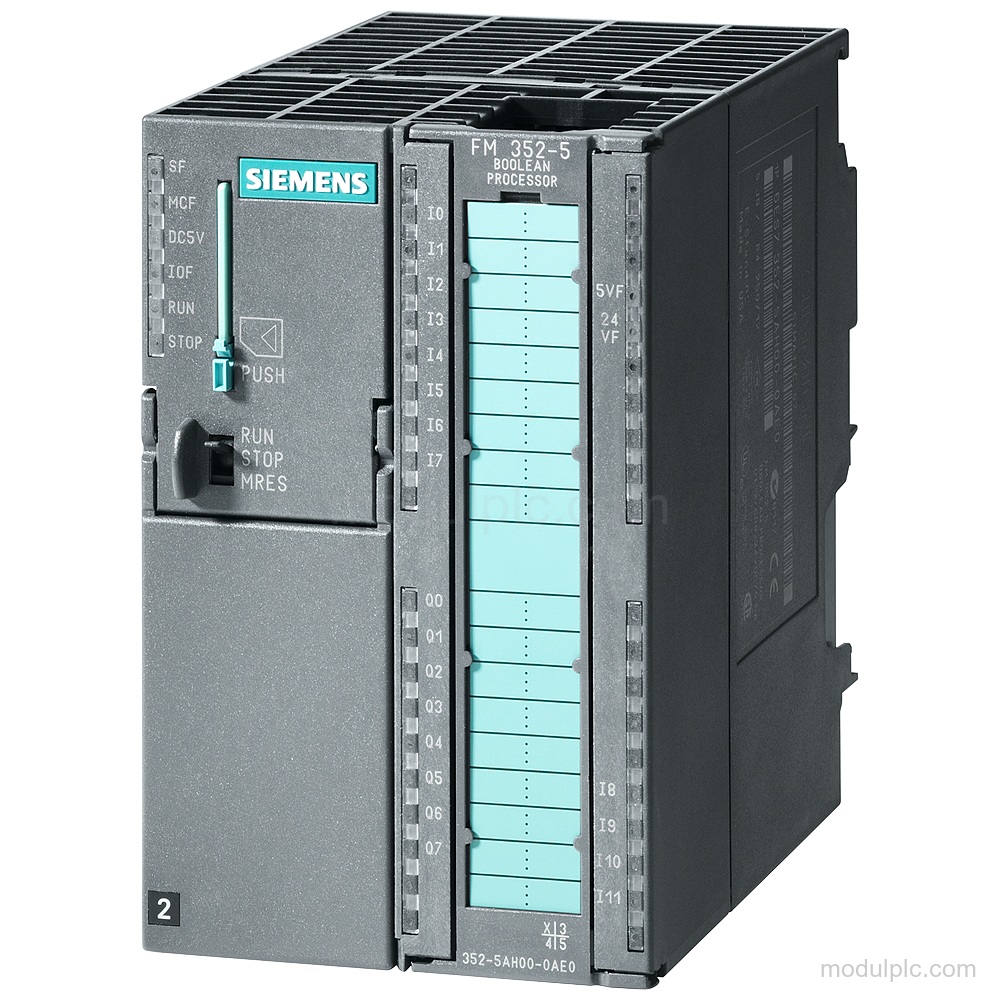

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | FM352-5 high-speed Boolean processor |
| Digital inputs | 8; standard and up to 12 with 24 V DC encoder inputs as digital inputs |
| Digital outputs | 8; current-sourcing PNP |
| Encoder interface | 1; RS-422 incremental / SSI absolute encoder |
| Encoder input frequency | 500 kHz max. for symmetrical incremental signals |
| Load voltage | 24 V DC rated; 20.4 V to 28.8 V permissible |
| Front connector | 1x 40-pin |
Applications
- High-speed linking: Provides high-speed linking using its high-speed Boolean processor.
- Encoder signal processing: Processes RS-422 incremental and SSI absolute encoder signals.
Key Features
- High-speed Boolean processor: Designed for high-speed linking with a program cycle time of 1 μs.
- Digital I/O: Has 8 standard digital inputs, expandable to 12 with 24 V DC encoder inputs used as digital inputs, and 8 current-sourcing PNP digital outputs.
- Encoder interface: Supports RS-422 incremental encoder signals and SSI absolute encoders, with encoder input frequency up to 500 kHz for symmetrical incremental signals.
- Supply and protection: Uses a rated 24 V DC load voltage with a permissible range of 20.4 V to 28.8 V, reverse polarity protection, and short-circuit-protected encoder supplies.
- Diagnostics: Provides diagnostic alarms, hardware interrupts, wire-break detection, missing load-voltage detection, and RUN/STOP, I/O, supply, overload, and group-error LEDs.

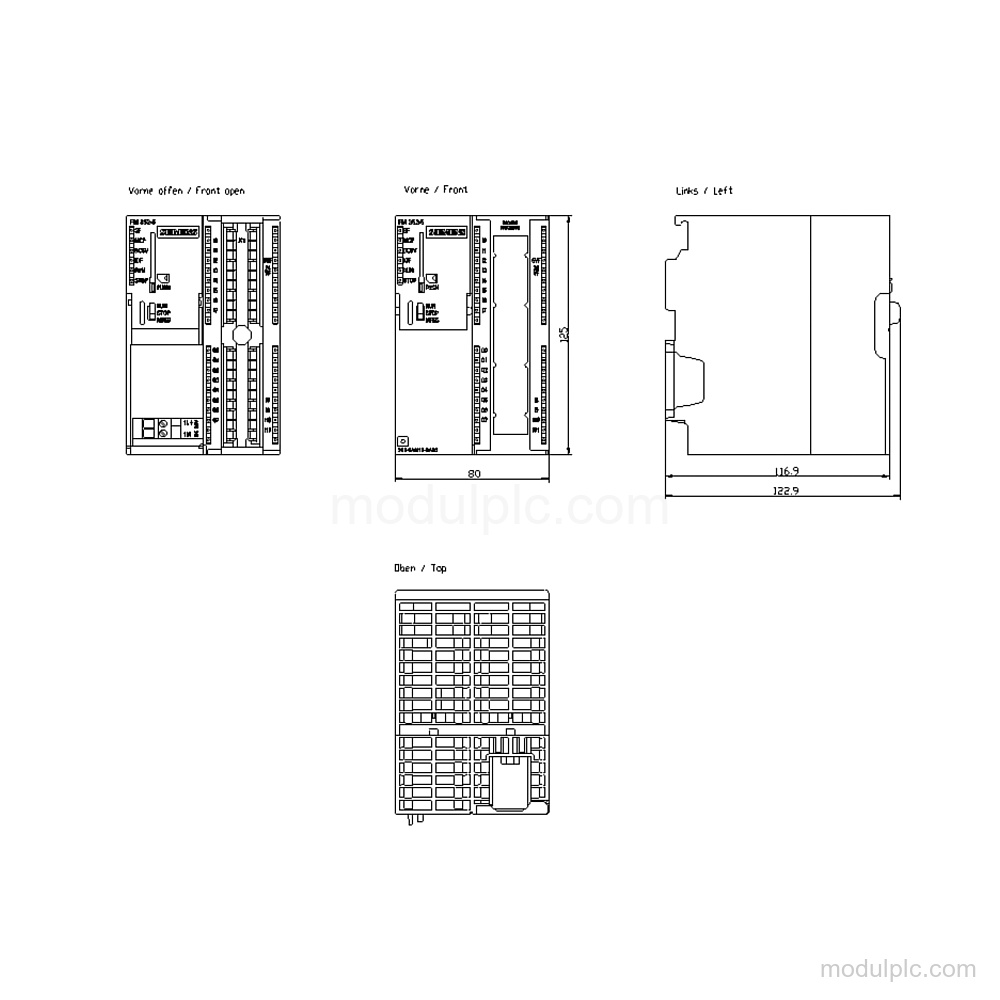

- Front connection and dimensions: Requires 1x 40-pin front connector and measures 80 mm wide, 125 mm high, and 120 mm deep.
Frequently Asked Questions
1. What function does the Siemens 6ES7352-5AH11-0AE0 provide?
It is an FM352-5 high-speed Boolean processor for high-speed linking.
2. How many digital inputs and outputs does it have?
It has 8 standard digital inputs, up to 12 digital inputs with 24 V DC encoder inputs used as digital inputs, and 8 digital outputs.
3. Which encoder signals are supported?
It supports RS-422 incremental encoder signals and SSI absolute encoders.
4. What supply voltage and front connector are required?
The rated load voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V, and the required front connector is 1x 40-pin.
