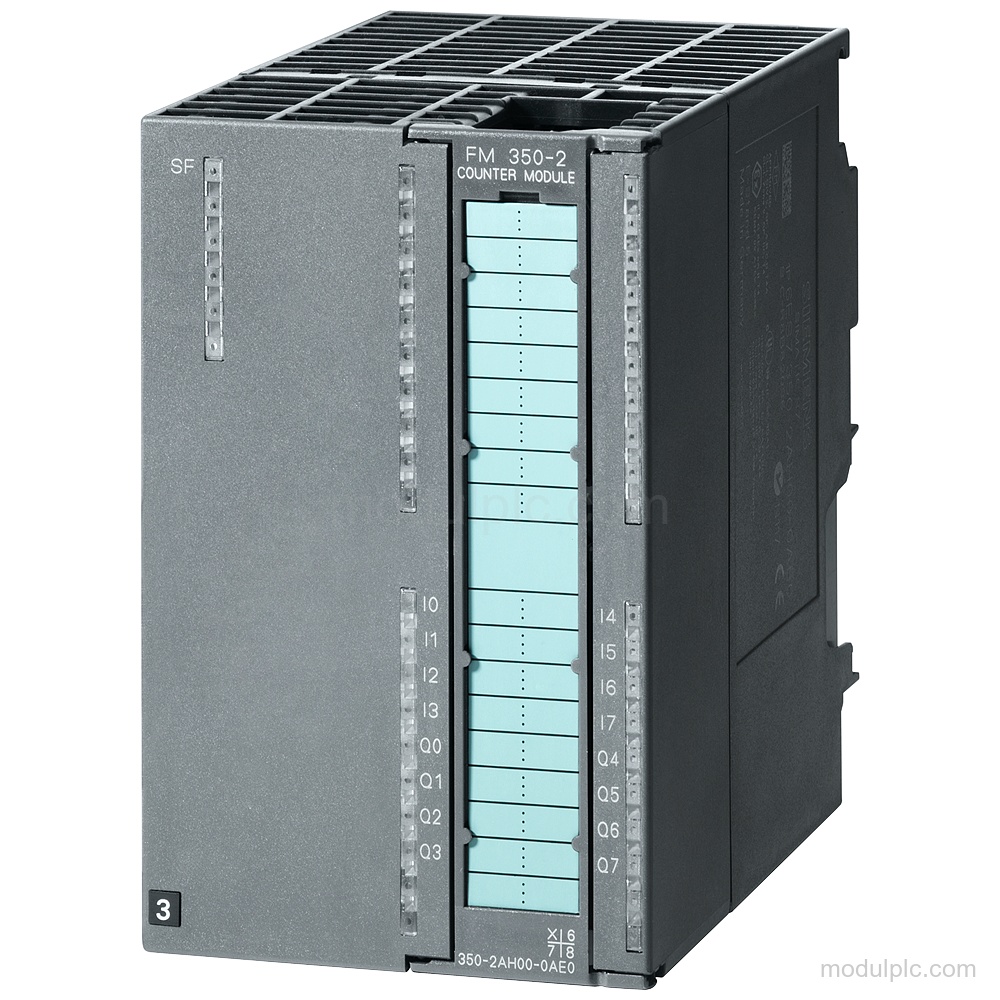

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | FM 350-2 counter module |
| Channels | 8 counter inputs; 8 digital inputs; 8 digital outputs |
| Maximum counting frequency | 20 kHz; incremental encoder: 10 kHz |
| Rated supply voltage | 24 V DC |
| Permissible supply range | 20.4 V to 28.8 V |
| Supported encoders | Asymmetrical incremental encoder, 24 V initiator, 24 V directional element, NAMUR encoder, 2-wire sensor |
| Front connector | 1x 40-pin |
| Diagnostics | Readable diagnostic information; parameterizable diagnostic alarm and hardware interrupt |
Applications
- Counting: Counts signals through 8 counter inputs.
- Measurement: Performs frequency, speed, and cycle duration measurement.
- Dosing: Supports dosing functions.
Key Features
- Counter module and channels: FM 350-2 counter module with 8 counter inputs and 8 digital inputs.
- Counting frequency: Maximum counting frequency is 20 kHz; with an incremental encoder, it is 10 kHz.
- Encoder support: Supports asymmetrical incremental encoders, 24 V initiators, 24 V directional elements, NAMUR encoders to DIN 19 234, and 2-wire sensors.
- Supply and inputs: Rated auxiliary and load voltage is 24 V DC, with a permissible range from 20.4 V to 28.8 V. Input signals are -3 to +5 V for signal "0" and 11 to 30.2 V for signal "1".
- Diagnostics and isolation: Provides readable diagnostic information, parameterizable diagnostic alarms and hardware interrupts, a red Group error SF LED, and potential separation between channels and the backplane bus.

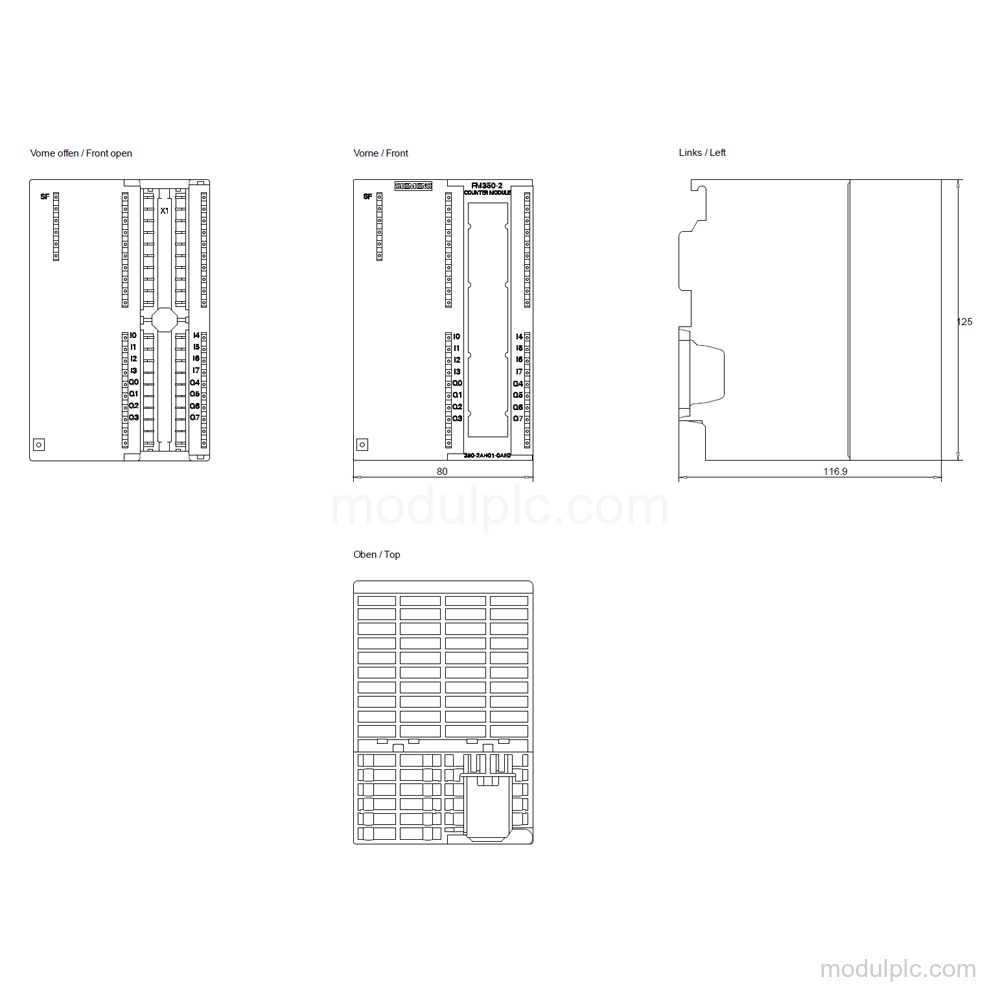

- Connection and dimensions: Requires 1x 40-pin front connector. Dimensions are 80 mm wide, 125 mm high, and 120 mm deep; approximate weight is 460 g.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7350-2AH01-0AE0?
It is an FM 350-2 counter module for counting, frequency measurement, speed measurement, cycle duration measurement, and dosing.
2. How many counter channels does the module have?
It has 8 counter inputs, with 32 bit or ±31 bit counters.
3. What signal ranges are supported by the 24 V inputs?
For signal "0", the input voltage is -3 to +5 V; for signal "1", it is 11 to 30.2 V.
4. Which connector and mounting dimensions must be verified before inquiry?
The module requires 1x 40-pin front connector and measures 80 mm wide, 125 mm high, and 120 mm deep.
