Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Interface | RS 422 / 485 (X.27), 1 isolated interface |
| Transmission rate | 2.4 kbit/s to 19.2 kbit/s |
| Protocol drivers | 3964 (R): Yes; ASCII: Yes; RK 512: No |
| Connector | 15-pin sub D socket |
| Supply | Power supply via backplane bus 5V |
| Operating ambient temperature | 0 °C to 60 °C |
Applications
- Data communication: Data communication, sending and receiving, with FB length in RAM, max. 2 700 byte.
- Point-to-point communication: Point-to-point connection with supported HP-Deskjet, HP-Laserjet, IBM-Proprinter, and user-defined printers.
Key Features
- Communications processor: SIMATIC S7-300 CP 340 communications processor with one isolated RS 422 / 485 interface.
- Transmission rate: Transmission rate: 2.4 kbit/s to 19.2 kbit/s.
- Integrated protocol drivers: 3964 (R) and ASCII protocol drivers: Yes; RK 512 and customer-specific driver reloading: No.
- Connection and cable length: 15-pin sub D socket; point-to-point cable length, max.: 1 200 m.
- Diagnostics indication: LED indications for Receive RxD, Transmit TxD, and Group error SF (red).

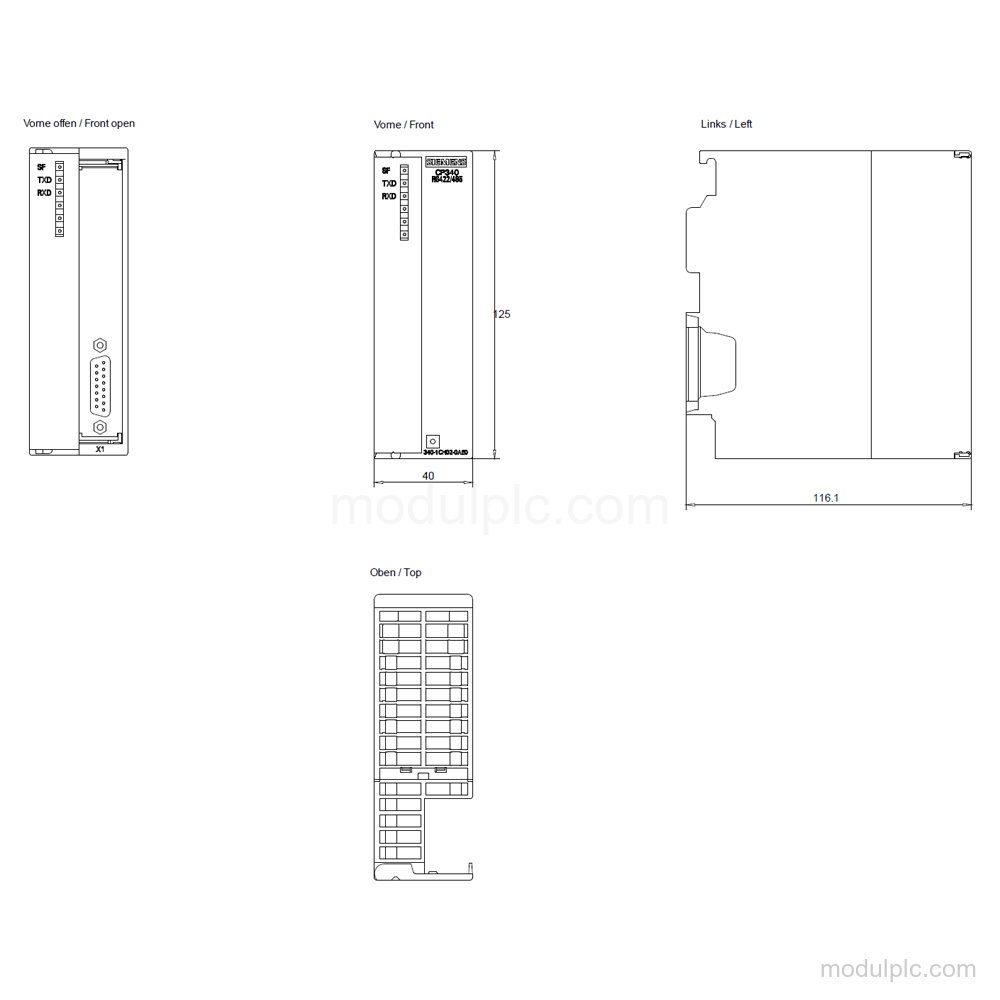

- Supply and dimensions: Power supply via backplane bus 5V; width: 40 mm, height: 125 mm, depth: 120 mm.
Frequently Asked Questions
1. What interface does the 6ES7340-1CH02-0AE0 have?
It has 1 isolated RS 422 / 485 (X.27) interface.
2. Which protocol drivers are integrated?
3964 (R) and ASCII are supported. RK 512 and customer-specific driver reloading are not supported.
3. What connector is used?
The connection uses a 15-pin sub D socket.
4. How is the module supplied?
Power supply is via the backplane bus 5V; the rated value is 24 V DC: No.
