Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Analog inputs | 4 |
| Analog outputs | 4 |
| Input signal types | Voltage; current |
| Excluded input types | Thermocouple; resistance thermometer; resistance |
| Isolation | Isolated U/I |
| Connection | 1x 20-pole |
| Lifecycle | Product cancellation |
Key Features
- Analog I/O: 4 analog inputs and 4 analog outputs.
- Supported input signals: Voltage and current inputs are supported; thermocouple, resistance thermometer, and resistance inputs are not supported.
- Isolated U/I: The module provides isolated voltage/current signals.
- Alarm and diagnostics: Alarm and diagnostics functions are included.
- Connection: Connection: 1x 20-pole.

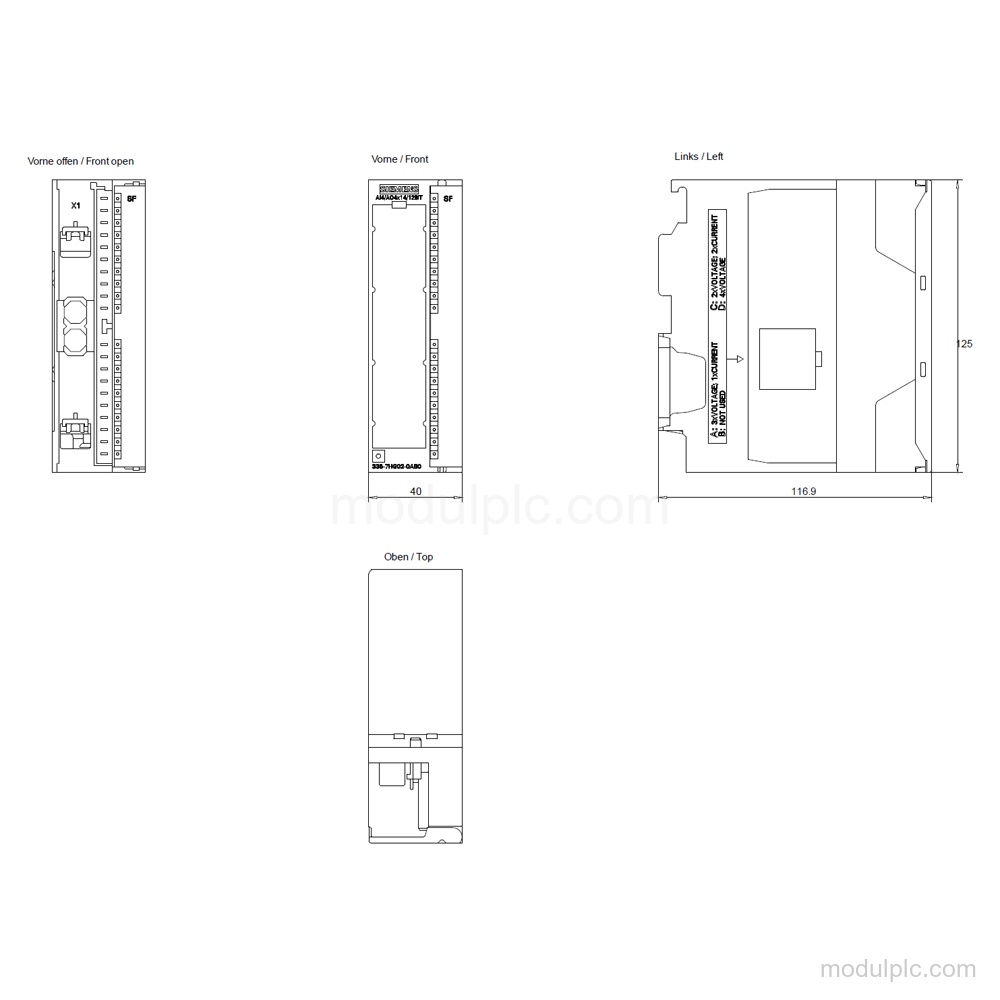

- Dimensions: Width: 40 mm; height: 125 mm; depth: 120 mm.
Frequently Asked Questions
1. How many analog inputs and outputs does the 6ES7335-7HG02-0AB0 have?
It has 4 analog inputs and 4 analog outputs.
2. Which input signal types does this module support?
It supports voltage and current inputs. Thermocouple, resistance thermometer, and resistance inputs are not supported.
3. Does the module provide isolation and diagnostics?
It has isolated U/I signals, alarm, and diagnostics.
4. What connection does the module use?
It uses a 1x 20-pole connection.
