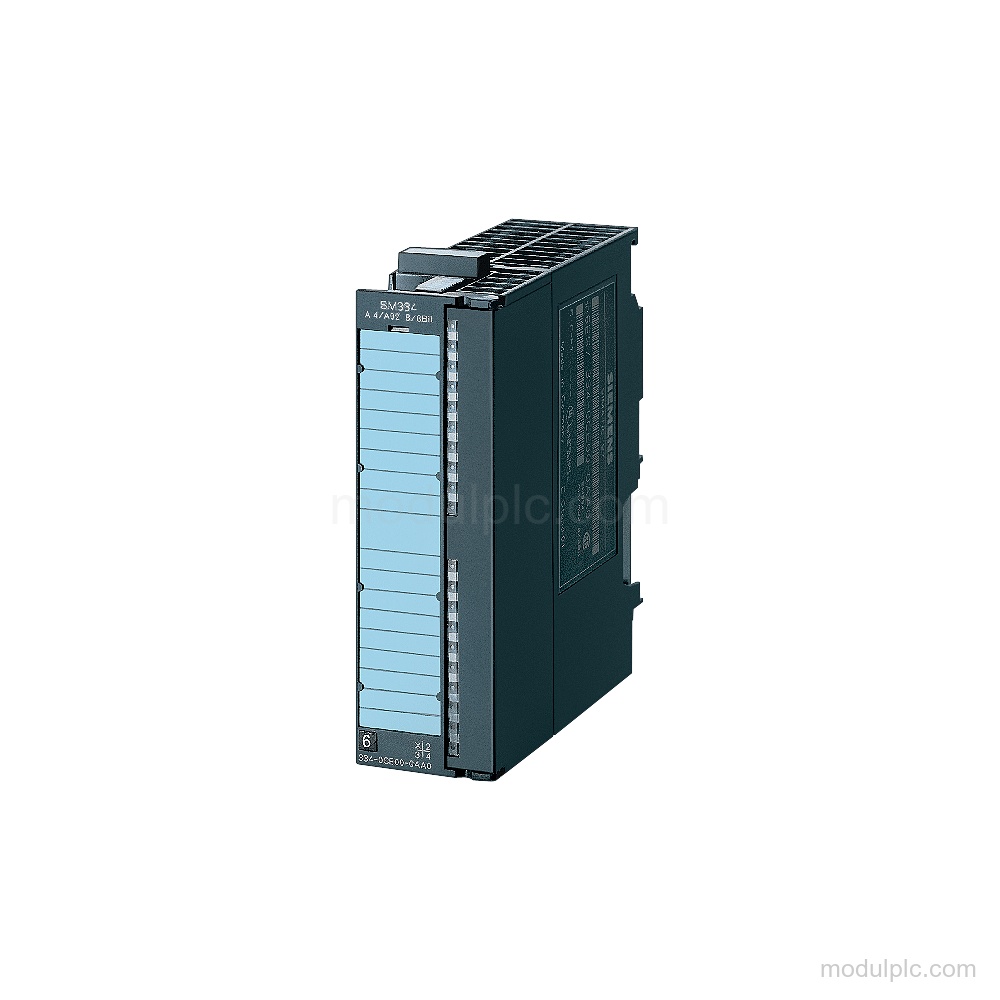

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Analog inputs | 4 |
| Analog outputs | 2 |
| Input ranges | 0 to +10 V; 0 to 20 mA |
| Output ranges | 0 to 10 V; 0 to 20 mA |
| Supply voltage | 24 V DC |
| Front connector | 20-pin |
| Cycle time, all channels, max. | 5 ms |
| Resolution with overrange, max. | 8 bit including sign |
| Diagnostics function | No |
| Isolation between analog input channels and backplane bus | No |
Applications
- Analog signal measurement: Measures voltage and current signals through 4 analog inputs.
- Analog signal output: Provides voltage and current signals through 2 analog outputs.
Key Features
- Analog I/O: 4 analog inputs and 2 analog outputs; the analog inputs and outputs are non-isolated.
- Signal ranges: Supports 0 to +10 V and 0 to 20 mA input ranges, plus 0 to 10 V and 0 to 20 mA output ranges.
- Supply and consumption: Rated load voltage L+: 24 V DC; input current from supply and load voltage L+, max.: 110 mA; power loss, typ.: 3 W.
- Connection and installation: Required front connector: 20-pin. Removing and inserting with the active backplane bus is possible.
- Conversion timing: Cycle time for all channels, max.: 5 ms; conversion time per channel: 500 μs; resolution with overrange, max.: 8 bit including sign.

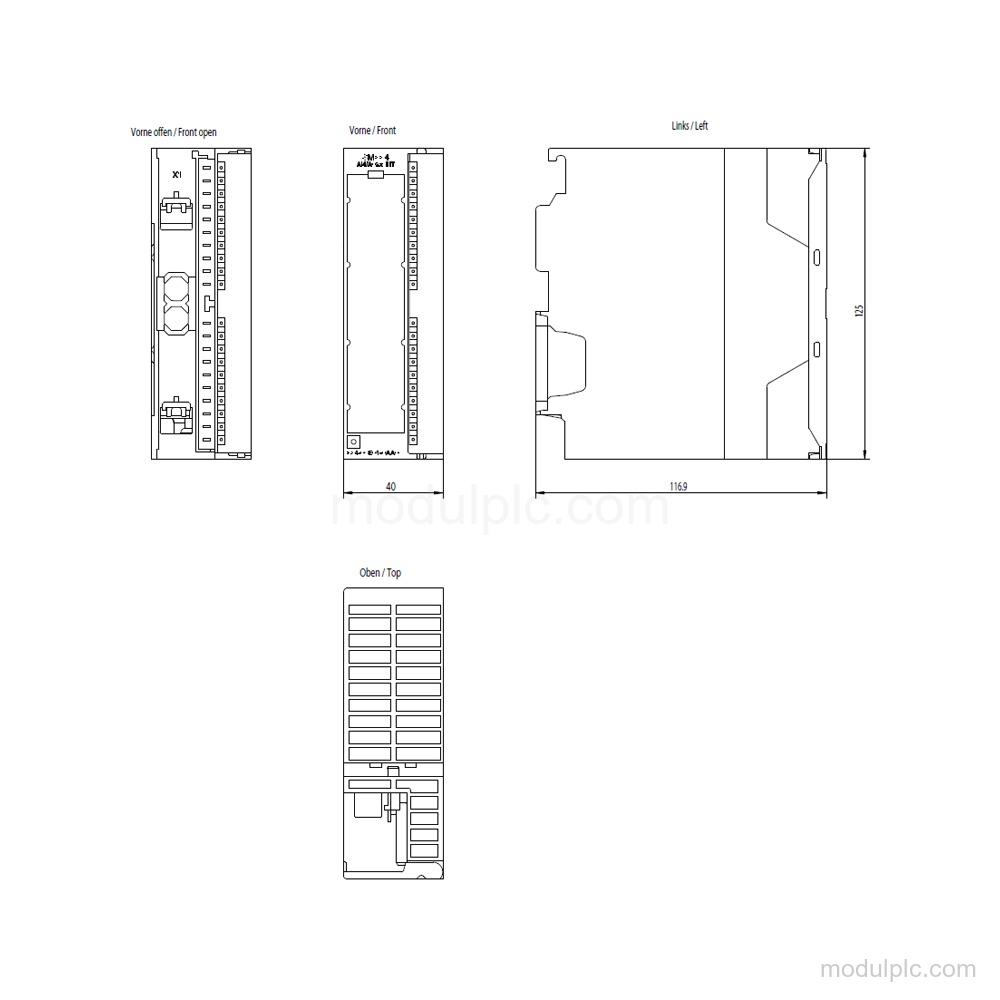

- Dimensions and weight: Width: 40 mm; height: 125 mm; depth: 117 mm; weight, approx.: 285 g.
Frequently Asked Questions
1. How many analog channels does Siemens 6ES7334-0CE01-0AA0 have?
It has 4 analog inputs and 2 analog outputs.
2. Which signal ranges does 6ES7334-0CE01-0AA0 support?
The inputs support 0 to +10 V and 0 to 20 mA. The outputs support 0 to 10 V and 0 to 20 mA.
3. What connector and supply does the module use?
It requires a 20-pin front connector and has a rated load voltage L+ of 24 V DC.
4. Does the module provide diagnostics or isolated analog inputs?
It has no diagnostics function, and the analog inputs are not isolated from the backplane bus.
