Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Analog output channels | 8 |
| Voltage output ranges | 0 to 10 V; 1 V to 5 V; -10 V to +10 V |
| Current output ranges | 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Resolution | 12 bit; ±10 V, ±20 mA, 4 mA to 20 mA, 1 V to 5 V: 11 bit + sign |
| Conversion time per channel | 0.8 ms |
| Load voltage L+ | 24 V DC rated |
| Required front connector | 40-pin |
| Isolation tested with | 500 V DC |
| Product lifecycle | Product cancellation |
Applications
- Actuator signal output: Provides voltage or current output signals to actuators through four-wire voltage or two-wire current connections.
Key Features
- Analog outputs: 8 isolated analog outputs support voltage ranges of 0 to 10 V, 1 V to 5 V, and -10 V to +10 V, plus current ranges of 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
- Signal connections: Voltage outputs use four-wire actuator connections; current outputs use two-wire actuator connections.
- Supply and protection: Load voltage L+ is 24 V DC rated, with reverse polarity protection. Voltage outputs have short-circuit protection.
- Diagnostics: The module has parameterizable diagnostics, substitute values, and diagnostic alarms; diagnostic information is readable and group error SF is indicated by a red LED.

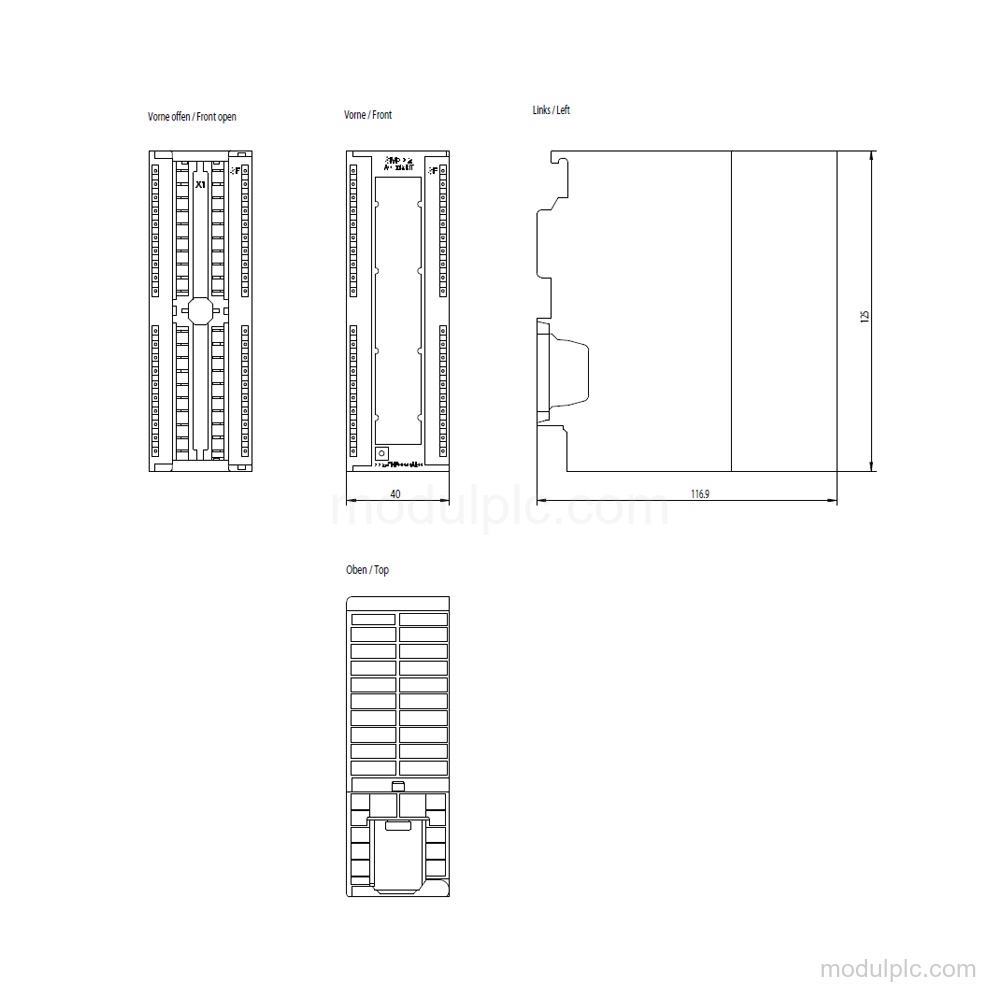

- Installation and dimensions: A 40-pin front connector is required. Removing and inserting with the active backplane bus is possible; dimensions are 40 mm × 125 mm × 117 mm and weight is approximately 272 g.
Frequently Asked Questions
1. How many analog outputs does 6ES7332-5HF00-0AB0 have?
It has 8 analog outputs.
2. Which signal ranges are supported?
Voltage ranges are 0 to 10 V, 1 V to 5 V, and -10 V to +10 V. Current ranges are 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
3. What connector is required?
A 40-pin front connector is required.
4. What supply voltage does the module use?
Load voltage L+ is 24 V DC rated, with reverse polarity protection.
5. What diagnostics are available?
The module has parameterizable diagnostics, substitute values, and diagnostic alarms, with readable diagnostic information and a red group error SF LED.
