Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Analog output channels | 2 |
| Voltage output ranges | 0 to 10 V; 1 V to 5 V; -10 V to +10 V |
| Current output ranges | 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Maximum resolution | 12 bit; ±10 V, ±20 mA, 4 mA to 20 mA, 1 V to 5 V: 11 bit + sign; 0 V to 10 V, 0 mA to 20 mA: 12 bit |
| Conversion time per channel | 0.8 ms |
| Rated load voltage L+ | 24 V DC |
| Required front connector | 20-pin |
| Typical power loss | 3 W |
| Isolation tested with | 500 V DC |
| Product lifecycle | Product cancellation |
Applications
- Actuator signal output: Provides voltage or current output signals for connected actuators using two-wire or four-wire voltage connections and two-wire current connections.
Key Features
- Analog outputs: 2 analog outputs support voltage ranges of 0 to 10 V, 1 V to 5 V, and -10 V to +10 V, plus current ranges of 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
- Resolution and timing: Maximum resolution is 12 bit; selected ranges provide 11 bit + sign. Conversion time per channel is 0.8 ms.
- Supply and protection: Rated load voltage L+ is 24 V DC with reverse polarity protection. Typical power loss is 3 W.
- Isolation and diagnostics: Analog outputs are isolated from the backplane bus, load voltage L+, and electronics power supply. Parameterizable diagnostics, diagnostic alarms, readable diagnostic information, and a red group error SF LED are provided.
- Connections and mounting: The module uses a required 20-pin front connector. Shielded cable length is up to 200 m, and removal or insertion with the active backplane bus is possible.

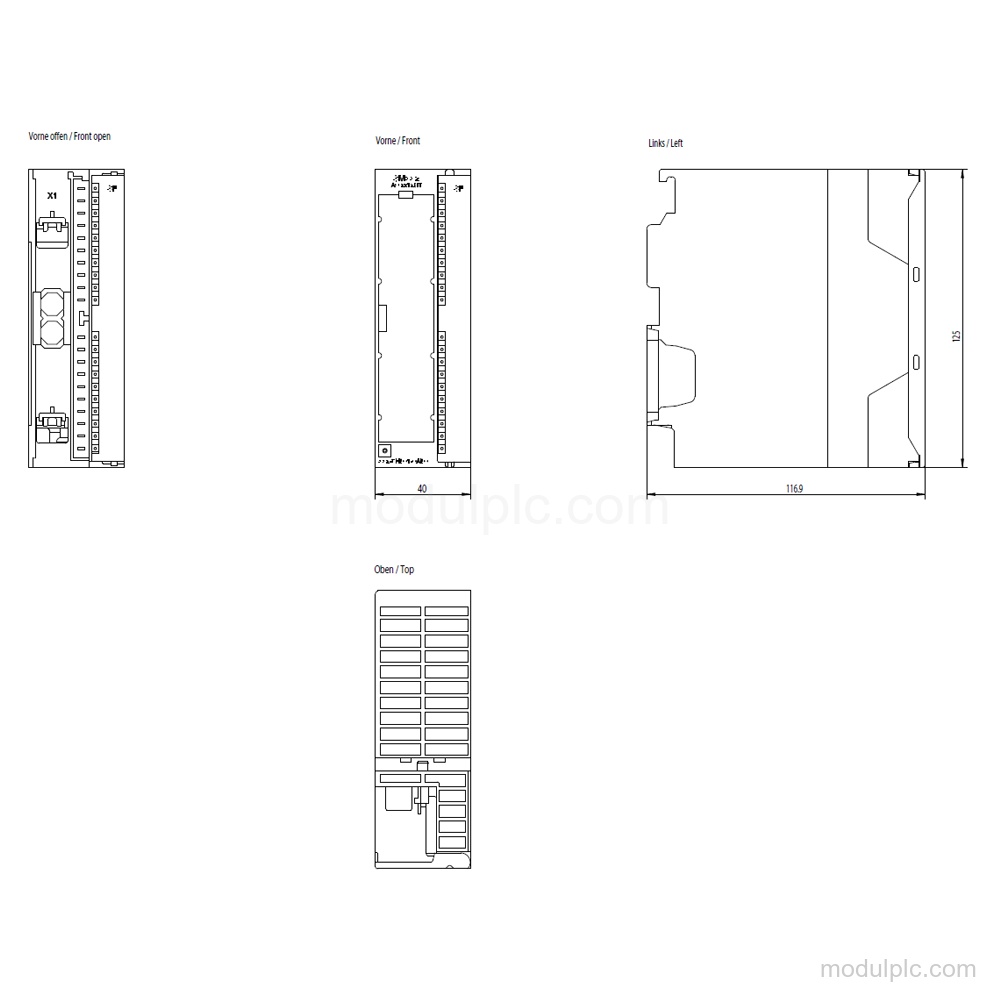

- Dimensions and lifecycle: Dimensions are 40 mm wide, 125 mm high, and 117 mm deep; approximate weight is 220 g. Product lifecycle: Product cancellation.
Frequently Asked Questions
1. How many analog outputs does the 6ES7332-5HB01-0AB0 have?
It has 2 analog outputs.
2. Which signal ranges does this analog output module support?
Voltage ranges are 0 to 10 V, 1 V to 5 V, and -10 V to +10 V. Current ranges are 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
3. What resolution and conversion time does it provide?
Maximum resolution is 12 bit; selected ranges provide 11 bit + sign. Conversion time is 0.8 ms per channel.
4. Which connector and supply does it use?
It requires a 20-pin front connector and has a rated load voltage L+ of 24 V DC.
5. What should be verified before requesting a quote?
Verify the required signal range, actuator connection, 20-pin front connector, and the Product cancellation lifecycle.
