Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | Isolated analog input module |
| Analog input channels | 8 |
| Supported voltage ranges | 1 V to 5 V; -10 V to +10 V; -5 V to +5 V |
| Supported current ranges | 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Resolution with overrange | Up to 16 bit |
| Integration time | Parameterizable: 10/ 16.67/ 20/ 100 ms |
| Backplane bus supply | 5 V DC, max. 130 mA |
| Power loss | 0.6 W, typ. |
| Front connector | 40-pin |
| Isolation | Between analog inputs and backplane bus; tested with 500 V DC |
| Diagnostic functions | Parameterizable diagnostics, diagnostic alarm, and limit value alarm on channels 0 and 2 |
Applications
- Analog signal acquisition: The module supports voltage measurement, current measurement with 2-wire transducers using an external transmitter, and current measurement with 4-wire transducers.
Key Features
- 8 analog inputs: The module has 8 analog inputs for voltage and current measurement.
- Supported signal ranges: Supported rated ranges include 1 V to 5 V, -10 V to +10 V, -5 V to +5 V, 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
- 16 bit resolution: Resolution with overrange is up to 16 bit; integration time is parameterizable at 10/ 16.67/ 20/ 100 ms.
- Diagnostics and alarms: The module has parameterizable diagnostics, diagnostic alarms, limit value alarms on channels 0 and 2, readable diagnostic information, and a red group error SF LED.
- Isolation and grounding: The analog inputs are isolated from the backplane bus and have single-point grounding; isolation is tested with 500 V DC. Channels are not isolated from one another and are arranged in groups of 2.

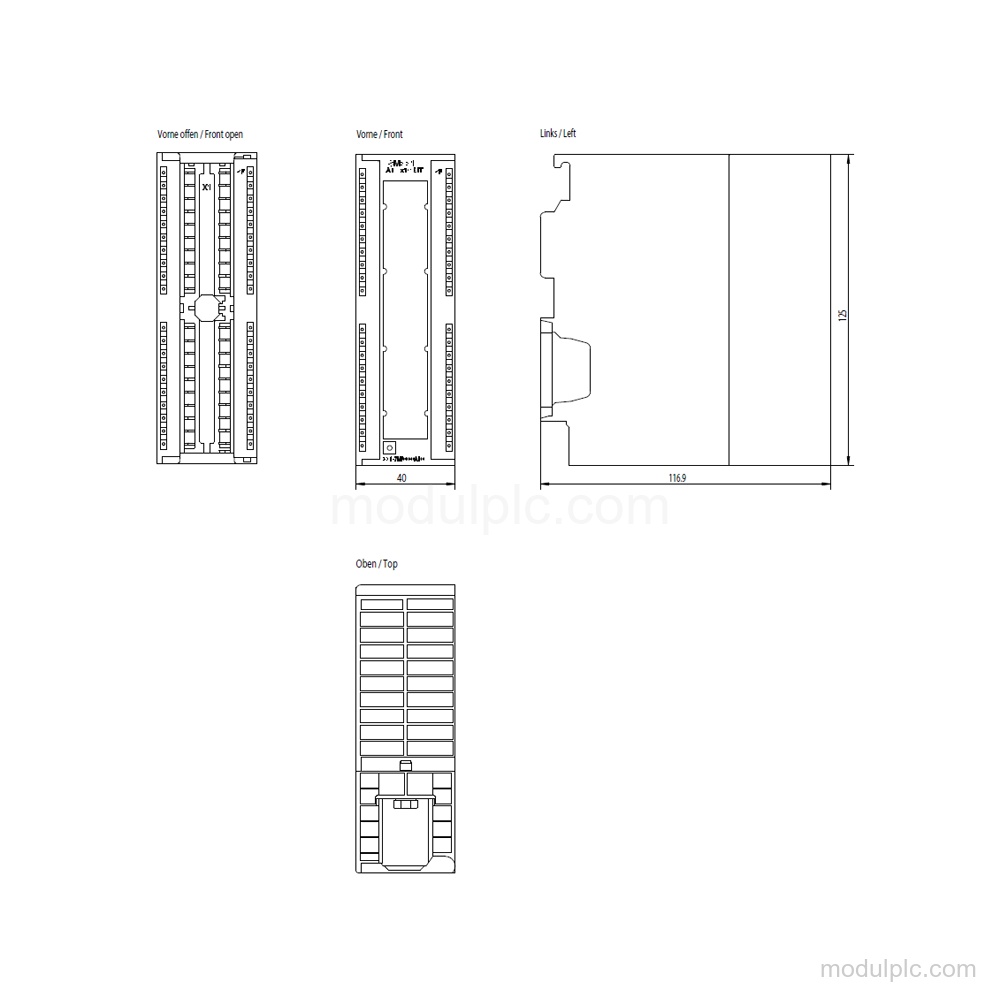

- 40-pin connection: A 40-pin front connector is required. Dimensions are 40 mm wide, 125 mm high, and 117 mm deep; weight is approximately 272 g.
Frequently Asked Questions
1. How many analog input channels does Siemens 6ES7331-7NF00-0AB0 have?
It has 8 analog input channels.
2. Which voltage and current ranges does this module support?
Supported ranges include 1 V to 5 V, -10 V to +10 V, -5 V to +5 V, 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
3. What resolution and integration time does the module provide?
Resolution with overrange is up to 16 bit. Integration time is parameterizable at 10/ 16.67/ 20/ 100 ms.
4. What connector is required for Siemens 6ES7331-7NF00-0AB0?
A 40-pin front connector is required.
