Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Analog input channels | 8 |
| Supported signal types | Voltage, current, thermocouple, resistance thermometer, and resistance |
| Resolution with overrange, max. | 15 bit |
| Rated load voltage L+ | 24 V DC |
| Input isolation | Between channels and backplane bus; between channels and electronics power supply |
| Front connector | 20-pin |
| Product lifecycle | Product cancellation |
Applications
- Analog signal measurement: Measures voltage, current, thermocouple, resistance thermometer, and resistance signals through its analog inputs.
- Temperature measurement: Measures thermocouple and resistance thermometer signals with parameterizable temperature compensation and characteristic linearization.
- Diagnostic monitoring: Provides parameterizable diagnostics, diagnostic alarms, limit value alarms, readable diagnostic information, and a Group error SF LED.
Key Features
- Analog input channels: 8 analog inputs with support for voltage, current, thermocouple, resistance thermometer, and resistance measurement.
- Signal ranges: Supported rated ranges include 1 V to 5 V, -1 V to +1 V, -10 V to +10 V, 0 to 20 mA, 4 mA to 20 mA, and -20 mA to +20 mA.
- Resolution and conversion: Resolution with overrange is max. 15 bit; parameterizable integration time is 2,5 / 16,67 / 20 / 100 ms.
- Diagnostics and alarms: Parameterizable diagnostics, diagnostic alarms on channels 0 and 2, limit value alarms, readable diagnostic information, and red SF Group error LED.
- Supply and isolation: Rated load voltage L+ is 24 V DC with reverse polarity protection. Inputs are isolated from the backplane bus and electronics power supply, but not between channels.

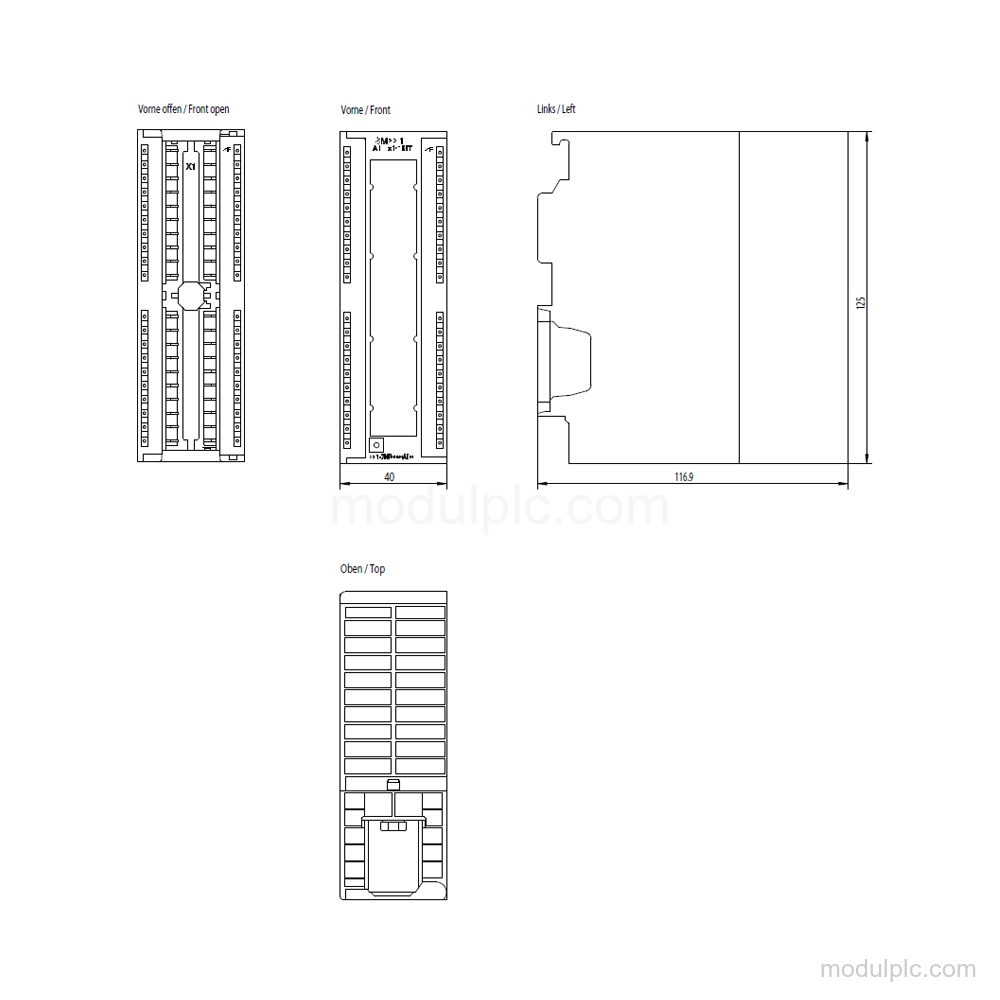

- Connection and dimensions: Requires a 20-pin front connector; dimensions are 40 mm wide, 125 mm high, and 117 mm deep.
Frequently Asked Questions
1. How many analog inputs does 6ES7331-7KF02-0AB0 have?
It has 8 analog inputs.
2. Which signal types does this analog input module support?
It supports voltage, current, thermocouple, resistance thermometer, and resistance measurement.
3. What resolution and integration times are available?
Resolution with overrange is max. 15 bit. Parameterizable integration time is 2,5 / 16,67 / 20 / 100 ms.
4. Which connector and supply should be verified before inquiry?
The module requires a 20-pin front connector and has a rated load voltage L+ of 24 V DC.
