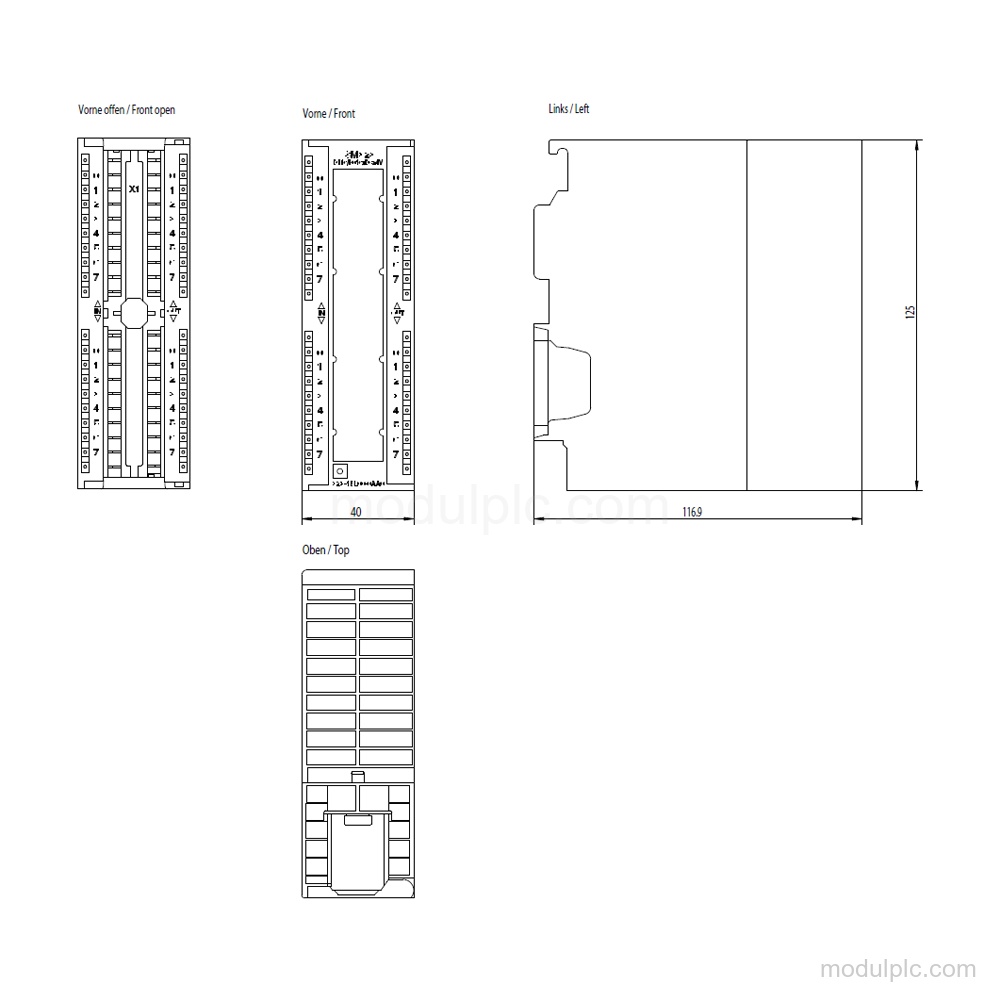

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC S7-300 SM 323 isolated digital module |
| Digital inputs | 16 |
| Digital outputs | 16 |
| Load voltage L+ | 24 V DC; permissible range 20.4 V to 28.8 V |
| Input voltage, signal "0" | -30 to +5 V |
| Input voltage, signal "1" | 13 to 30 V |
| Output current, signal "1" | Rated 0.5 A; permissible range 5 mA to 0.6 A |
| Required front connector | 40-pin |
Applications
- Digital signal acquisition: Acquires signals through 16 digital inputs.
- Digital output control: Controls digital inputs through the digital outputs.
Key Features
- Digital I/O configuration: Has 16 digital inputs and 16 digital outputs.
- Supply voltage: Load voltage L+ rated value is 24 V DC, with a permissible range of 20.4 V to 28.8 V.
- Digital input signals: Input voltage for signal "0" is -30 to +5 V; for signal "1", it is 13 to 30 V.
- Digital output current: Signal "1" output current is rated at 0.5 A, with a permissible range of 5 mA to 0.6 A.
- Isolation and indicators: Digital inputs and outputs have potential separation between channels and between channels and the backplane bus through an optocoupler. Green status indicators are provided for both.
- Front connection: Requires a 40-pin front connector.
Frequently Asked Questions
1. How many digital inputs and outputs does 6ES7323-1BL00-0AA0 have?
It has 16 digital inputs and 16 digital outputs.
2. What supply voltage does this module use?
The load voltage L+ is 24 V DC, with a permissible range of 20.4 V to 28.8 V.
3. What connector is required for the module?
A 40-pin front connector is required.
4. Does the module include diagnostics or alarms?
It is without alarms and without a diagnostics function.
